Pneumatic ValveFeatured

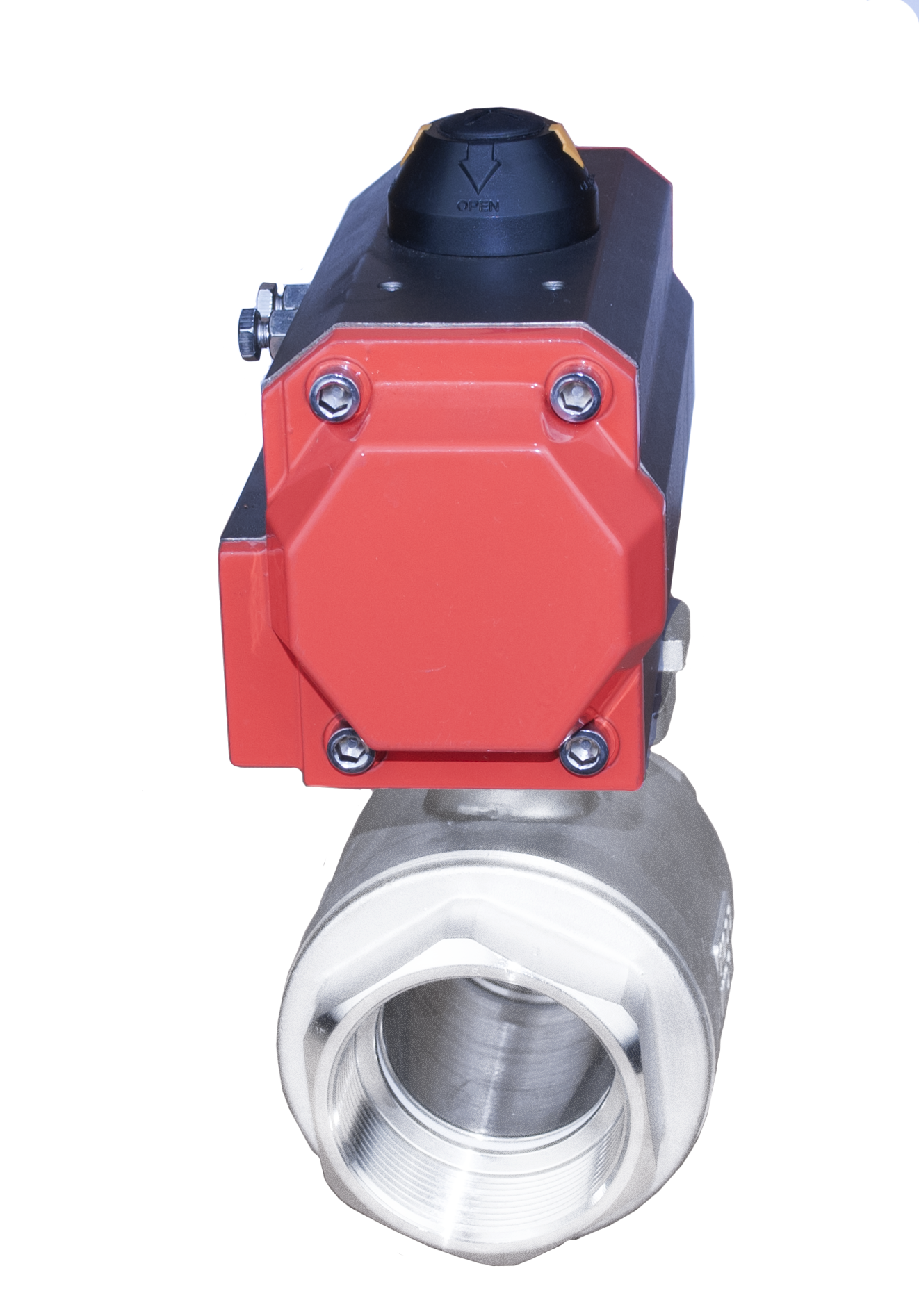

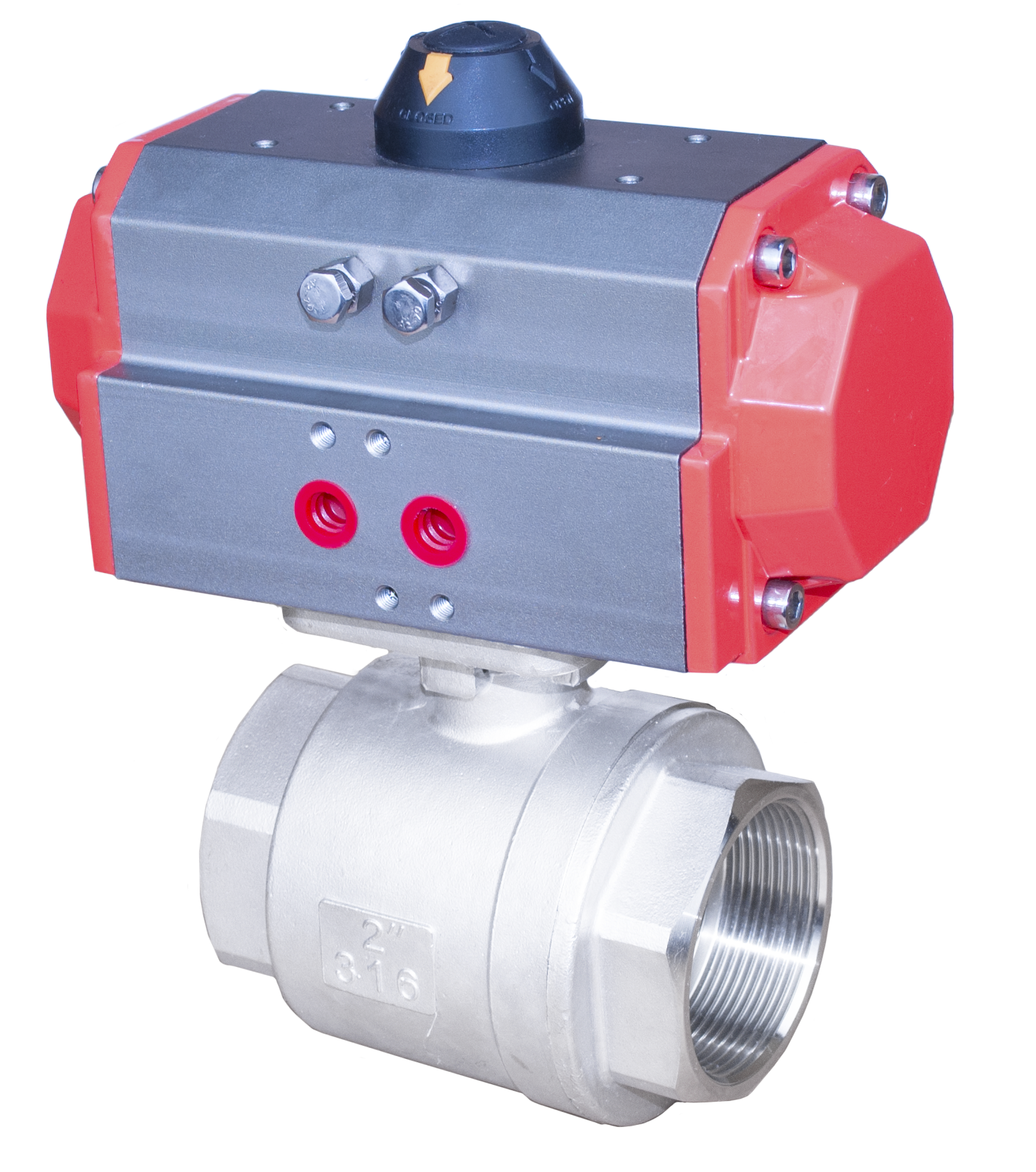

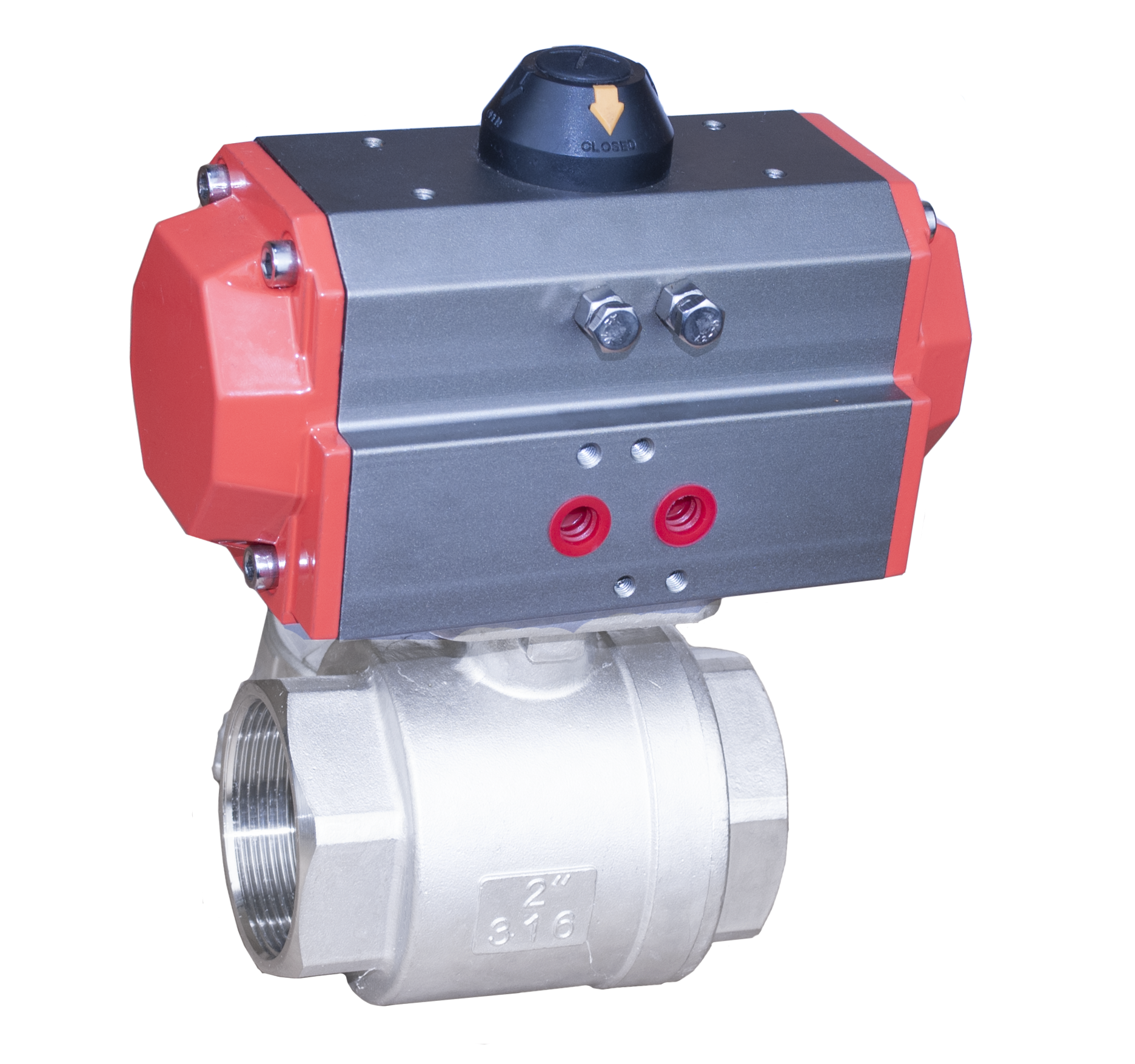

2PC Pneumatic Ball Valve
2PC 气动球阀（螺纹）
OVERVIEW
The 2 Piece Pneumatic Ball Valve combines a durable two-piece body with a pneumatic actuator for reliable automated flow control. Full port design minimizes pressure drop, while the compact structure allows easy installation.
Applications
▸Water treatment and cooling systems
▸Chemical and petrochemical processing
▸Food and beverage industry
▸HVAC and compressed air systems
Technical Specifications
01 — Features
Two-piece body – fewer leak points, easy maintenance
Full port – minimal pressure drop, supports pipeline cleaning
Pneumatic actuator – double-acting or spring-return (fail-safe) options
PTFE seats – low friction, tight shut-off, chemical resistant
Blow-out proof stem – safe operation under pressure
Materials – SS304, SS316, carbon steel available
02 — Advantages
Low energy consumption – short air burst only
Long cycle life – designed for millions of operations
Fail-safe option – valve defaults to safe position on air/power loss
Easy automation – ISO 5211 direct mounting
03 — Standards
Design: ISO 5211, API 608
Pressure: Class 150 / PN16 – PN40
Testing: API 598
Connections: Threaded (NPT, BSPP, BSPT)
