Flanged ValveFeatured

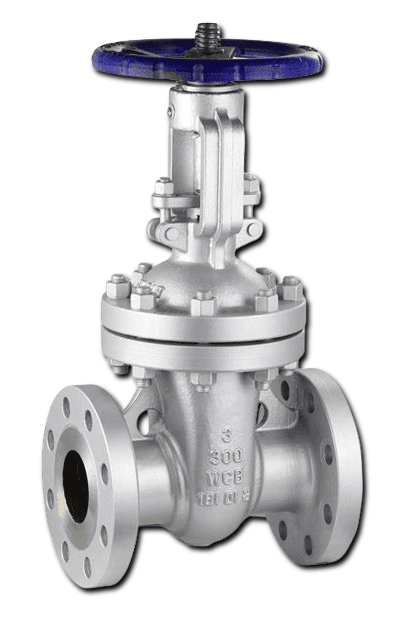

ANSI Stainless Steel Gate Valve
ANSI 不锈钢闸阀
OVERVIEW
ANSI Stainless Steel Gate Valve for oil & gas, petrochemical, power, water treatment, marine, and food processing.
Applications
▸Oil & gas
▸Petrochemical
▸Power generation
▸Water treatment
▸Marine
▸Food processing
Technical Specifications
01 — Features
Stainless steel body (CF8/CF8M/CF3M)
Rising or non-rising stem, bolted bonnet, solid/flexible wedge
Size: NPS 2″–24″ | Class 150–1500
Flanged (ASME B16.5), butt weld, or socket weld ends
Handwheel, gear, or actuator operation
02 — Advantages
Corrosion & high-temperature resistance
Tight shut-off with low leakage
Full-port design for minimal pressure drop
Easy in-line maintenance
Certified to global standards
03 — Standards
Design: ASME B16.34, API 600 / API 6D
Dimensions: ASME B16.10
Testing: API 598
Certifications: ISO 9001, API 6D, CE, API 607 fire-safe
