Threaded Valve

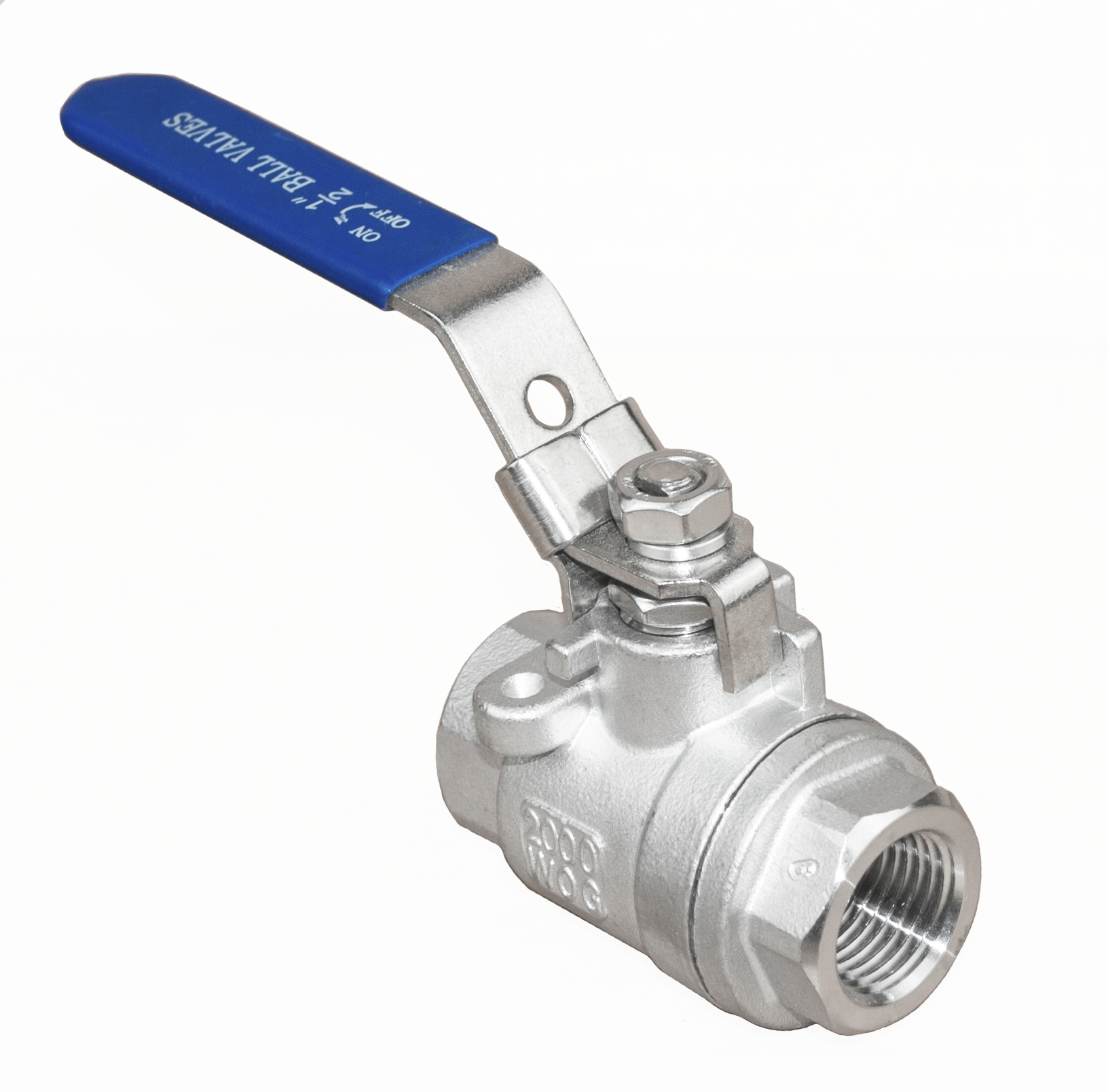

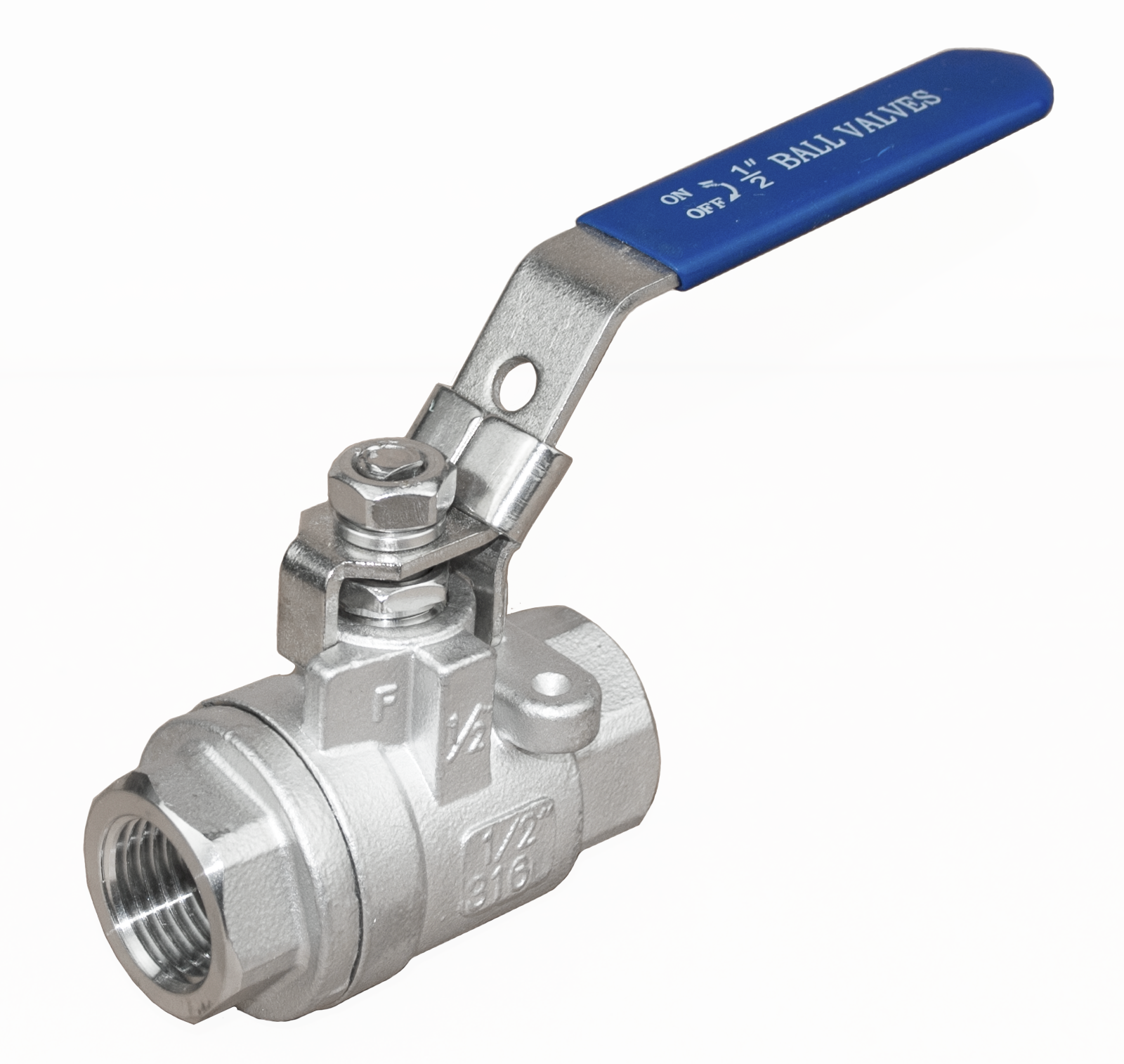

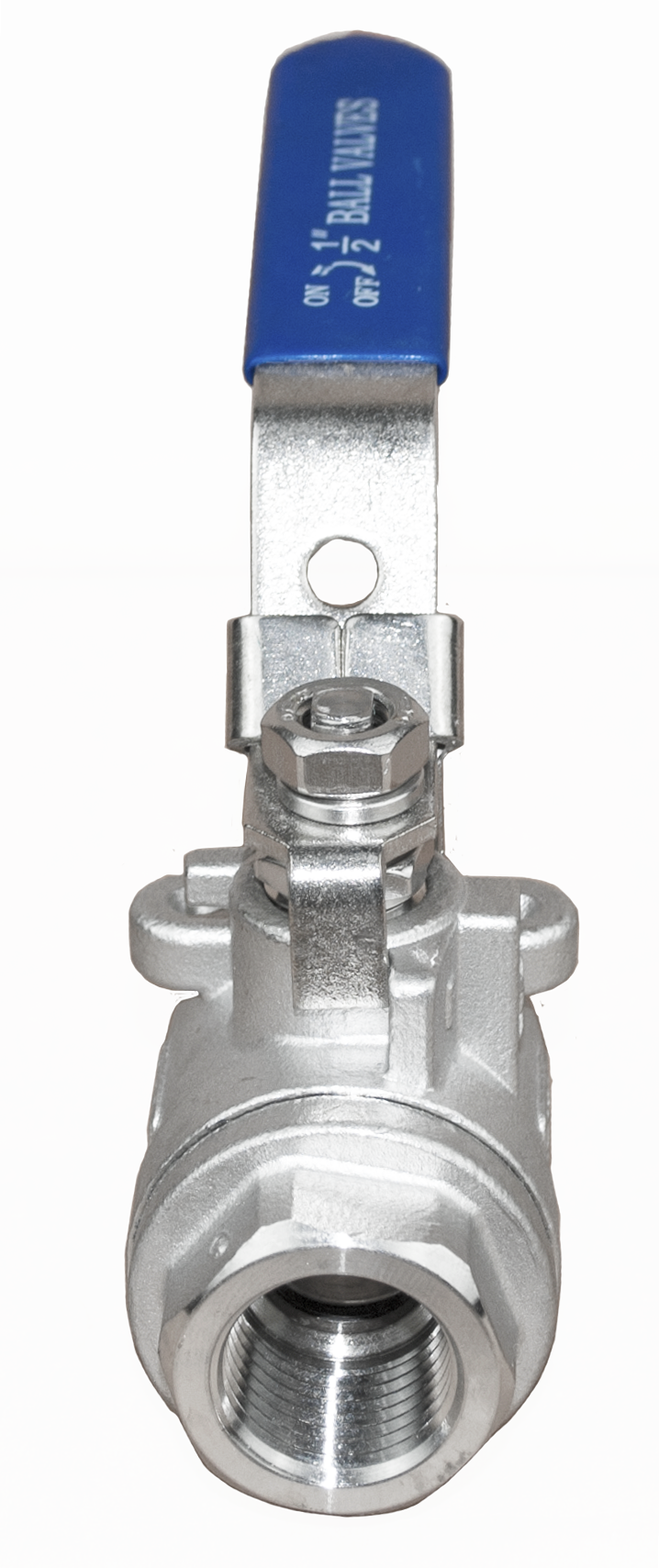

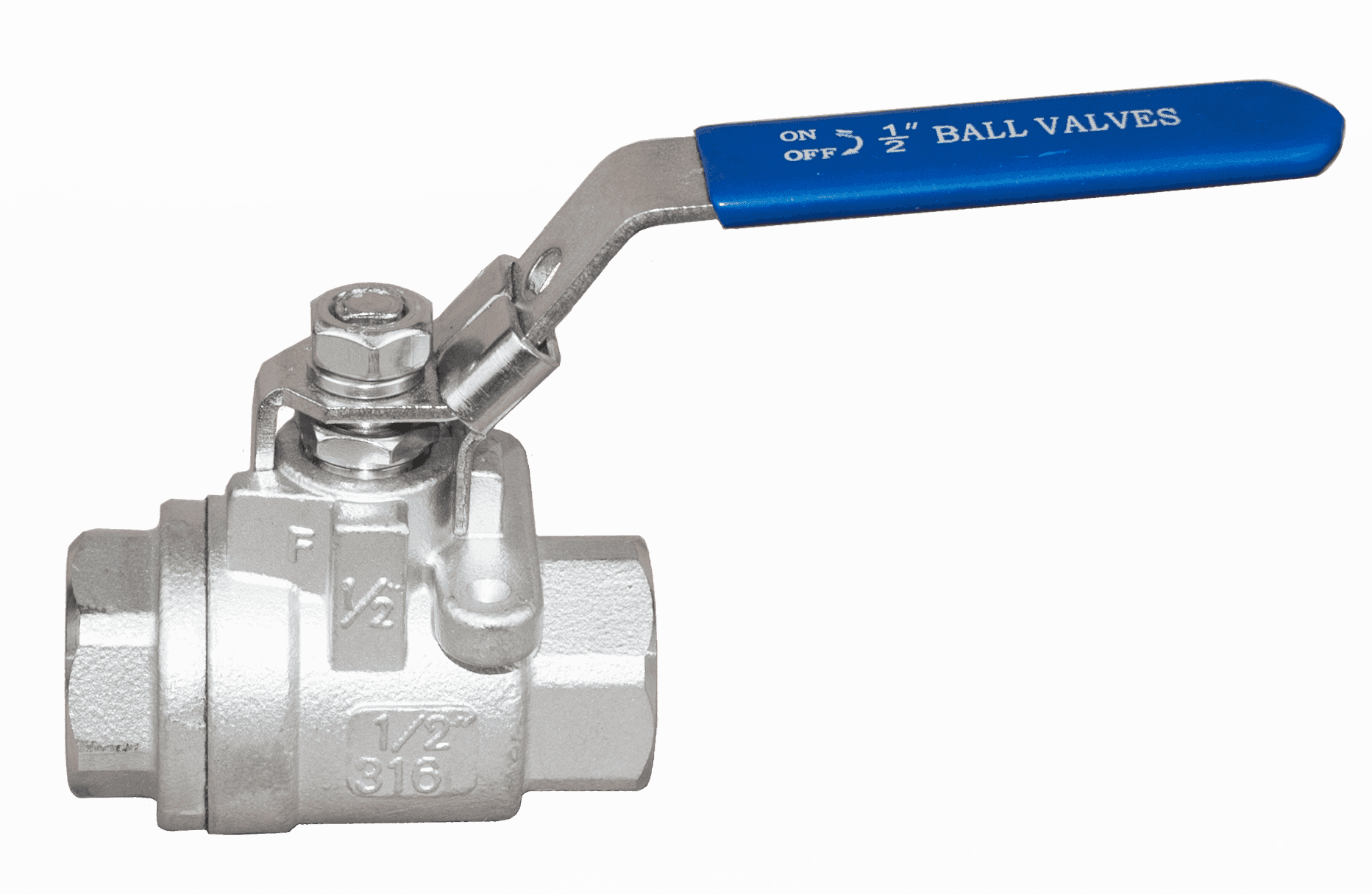

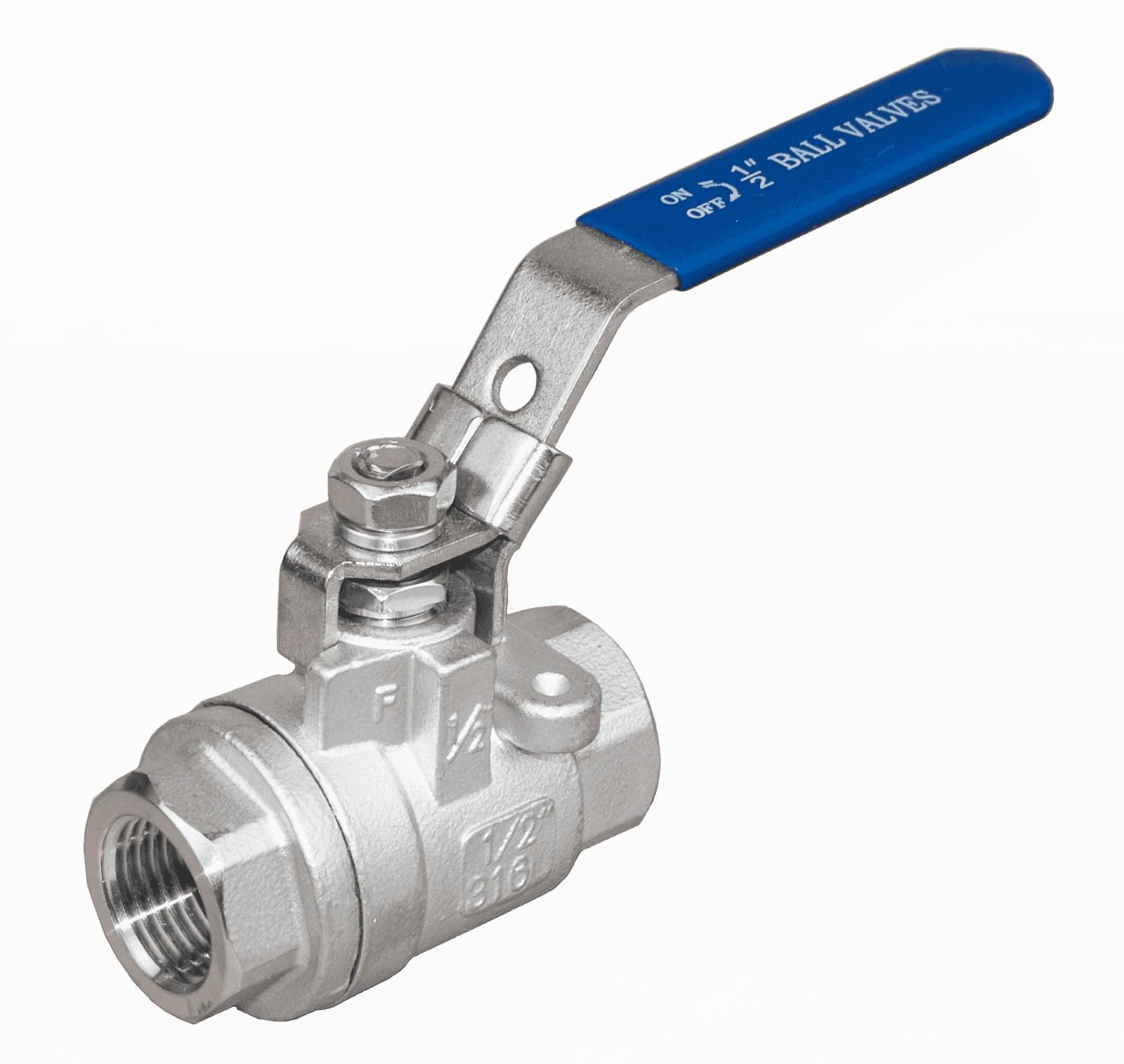

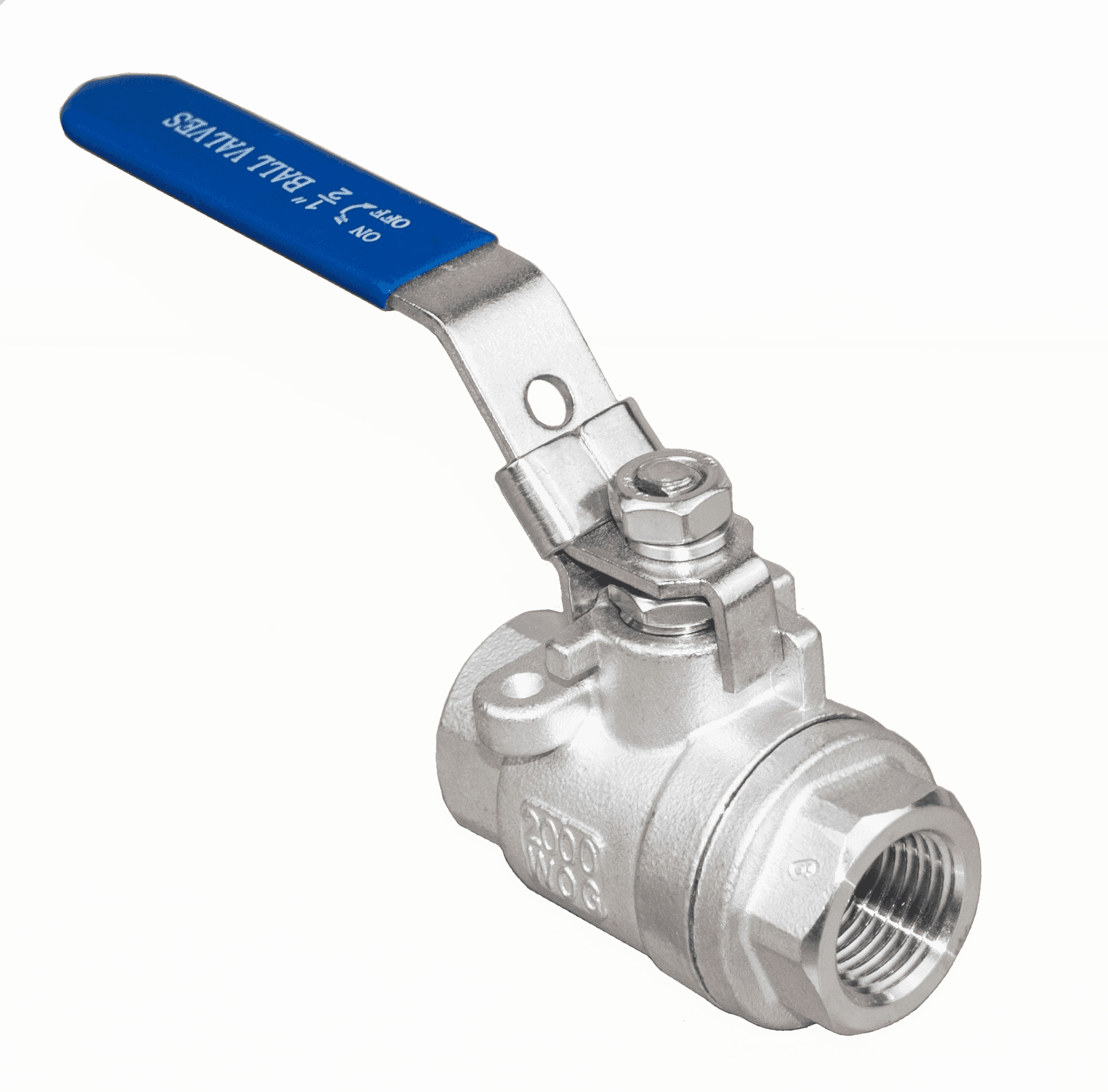

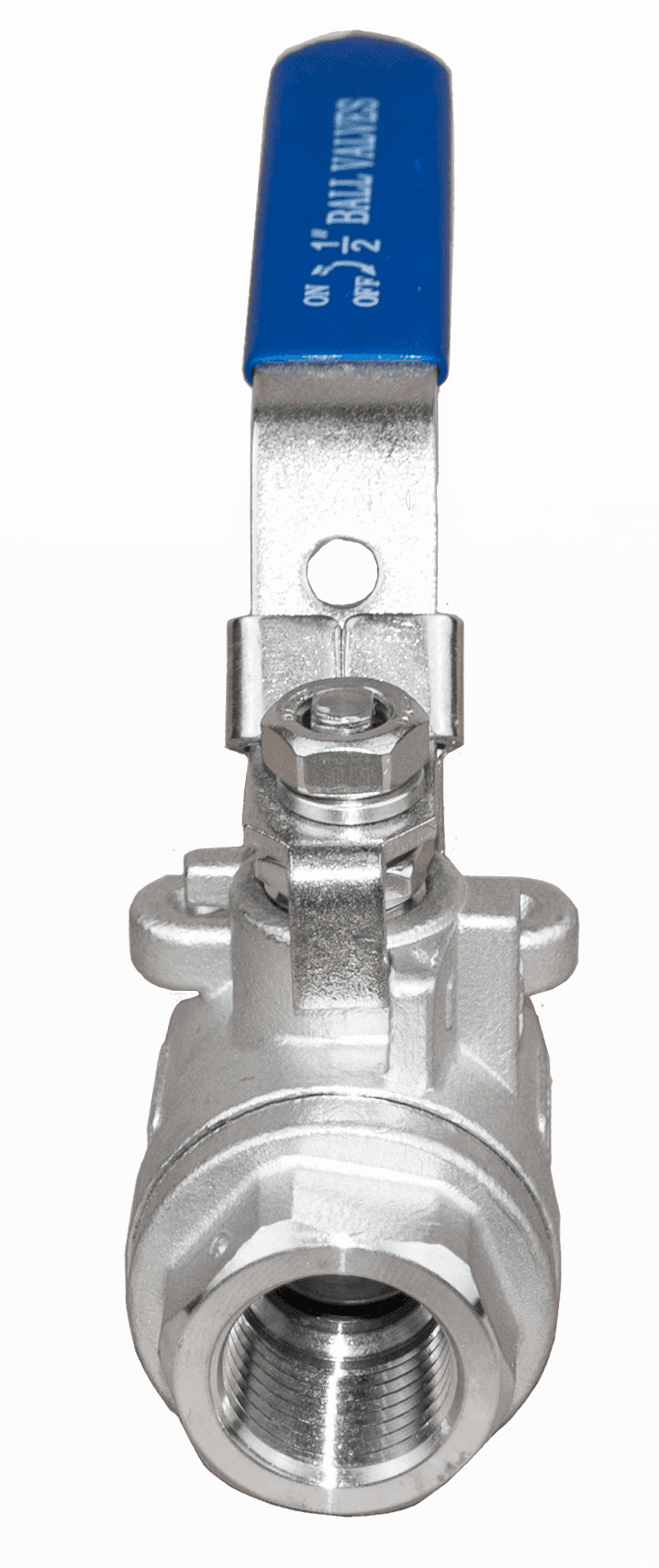

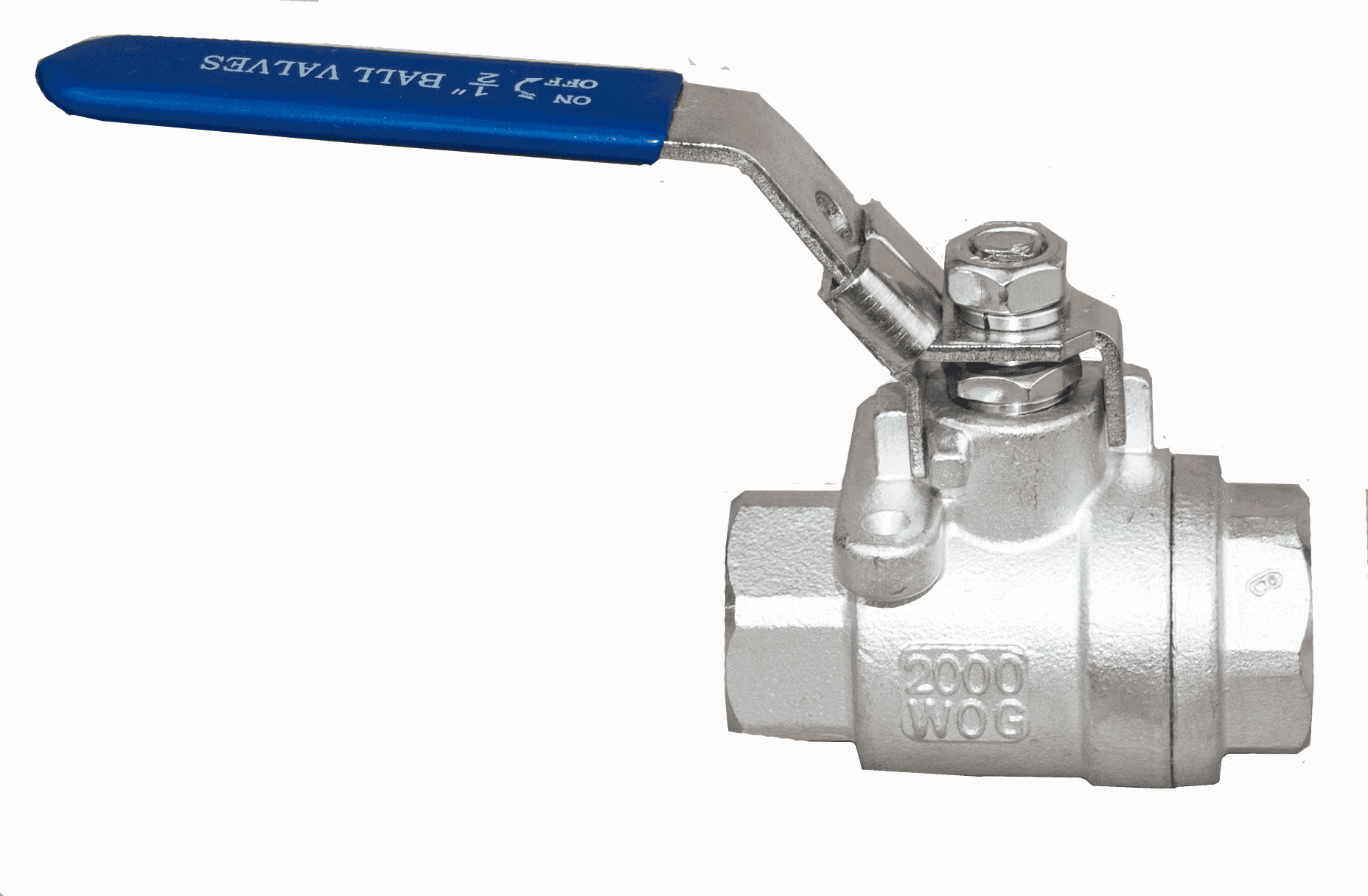

2PC Threaded Ball Valve 2000WOG
2PC 球阀 2000WOG
Overview Two-piece threaded ball valve rated 2000WOG (Water, Oil, Gas). Full port design for high-pressure applications. Economical and reliable.
Product Details
Applications
01 High-pressure water and oil lines
02 Hydraulic systems
03 Gas transmission
04 Industrial process control
05 Chemical and petrochemical
Features
01 Two-piece body – compact and lightweight
02 Full port – minimal pressure drop
03 2000WOG pressure rating
04 Threaded ends: NPT, BSP, or BSPT
05 Blow-out proof stem
06 PTFE seats and seals
07 Materials: CF8M (SS316), CF8 (SS304), or WCB carbon steel
Advantages
01 Handles higher pressure than standard 1000WOG valves
02 Bubble-tight shut-off
03 Easy inline maintenance
04 Corrosion-resistant – suitable for harsh media
05 Ready for actuator mounting (ISO 5211 pad optional)
Standards
01 Design: ASME B16.34 / API 608
02 Thread: ASME B1.20.1 (NPT) or ISO 7-1 (BSP)
03 Testing: API 598 / ISO 5208
04 Pressure rating: 2000WOG (up to 2000 PSI)
05 Temperature range: -20°C to 200°C
06 Certifications: CE, PED (optional)
