Threaded Valve

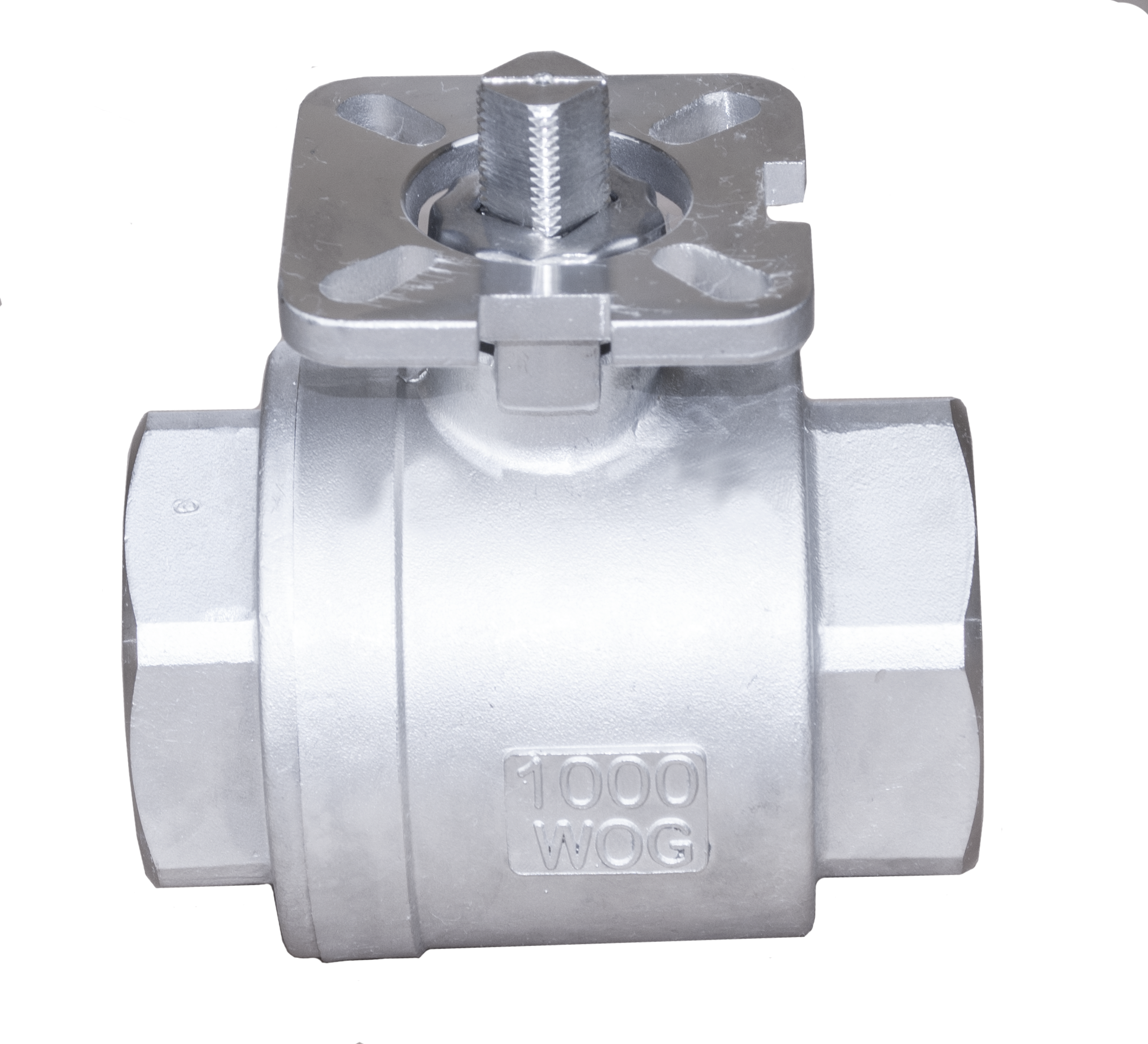

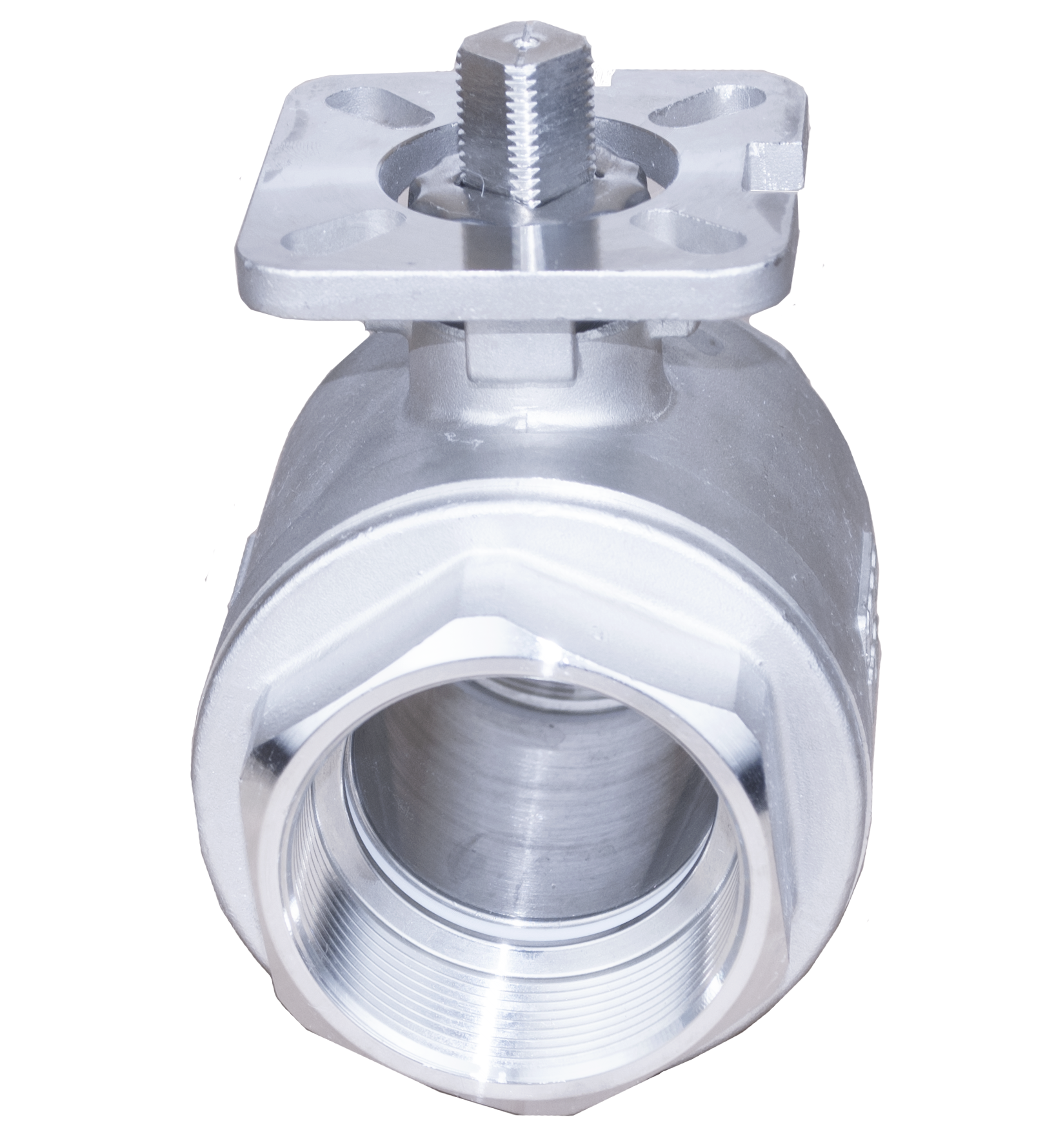

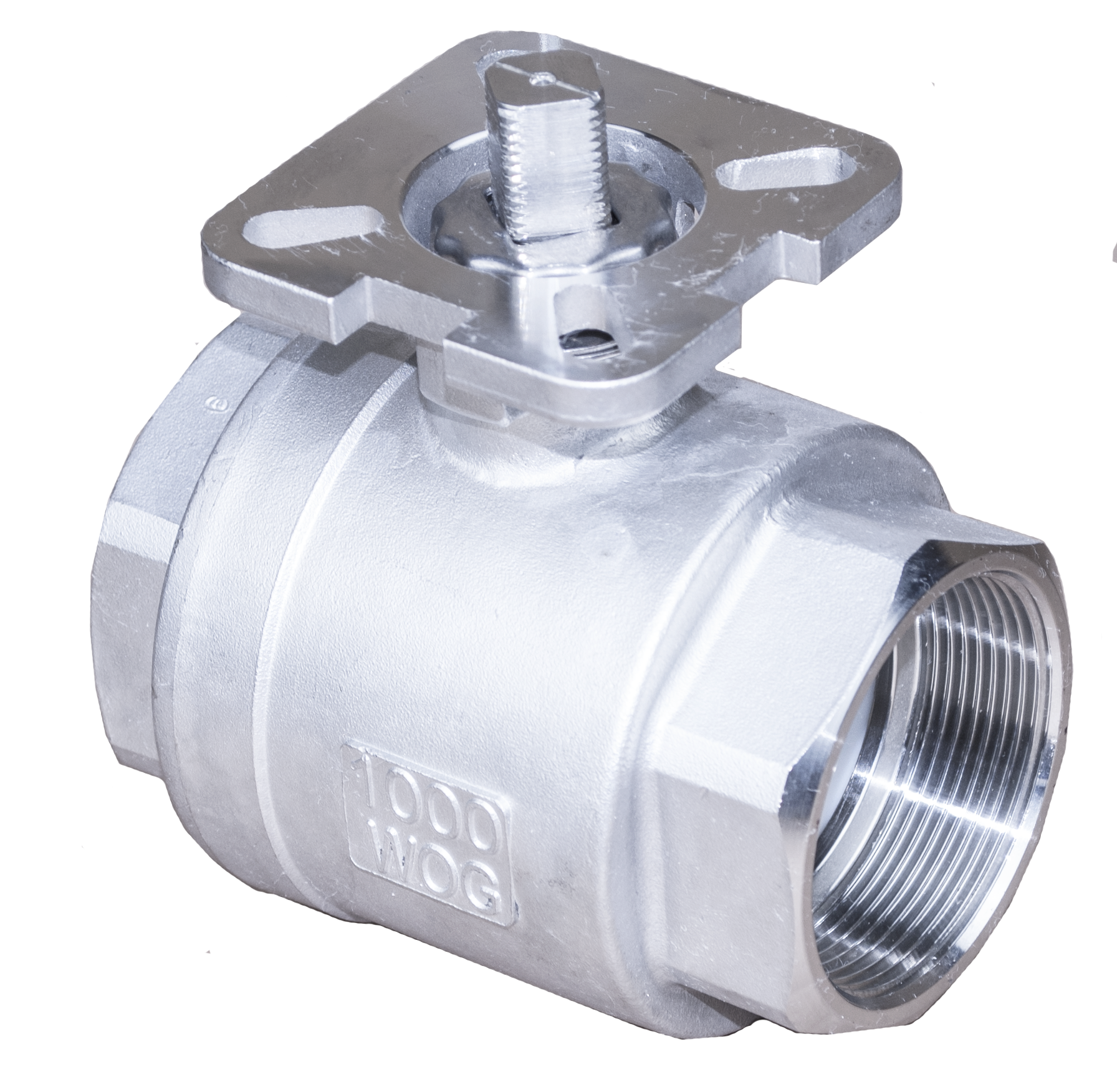

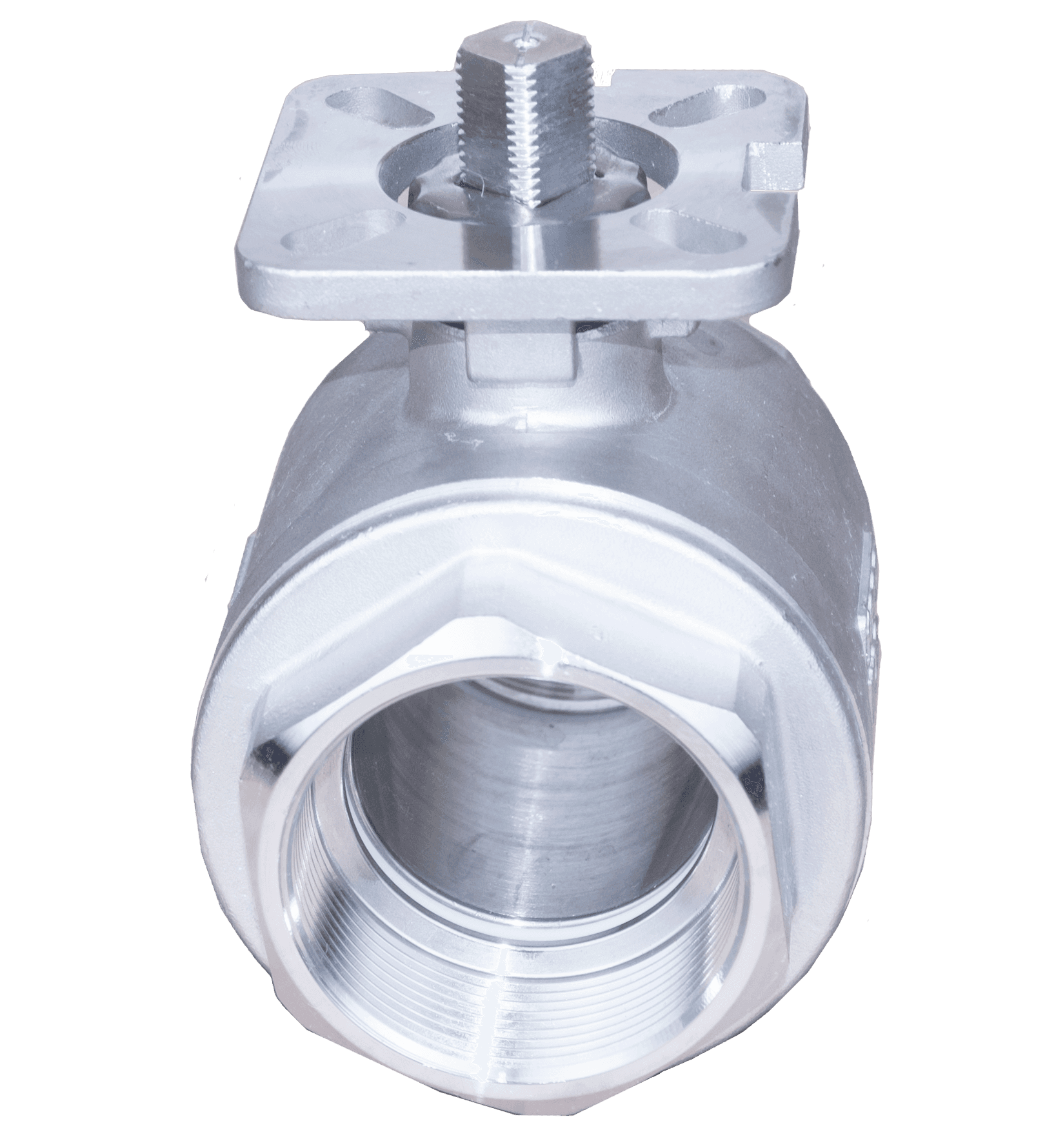

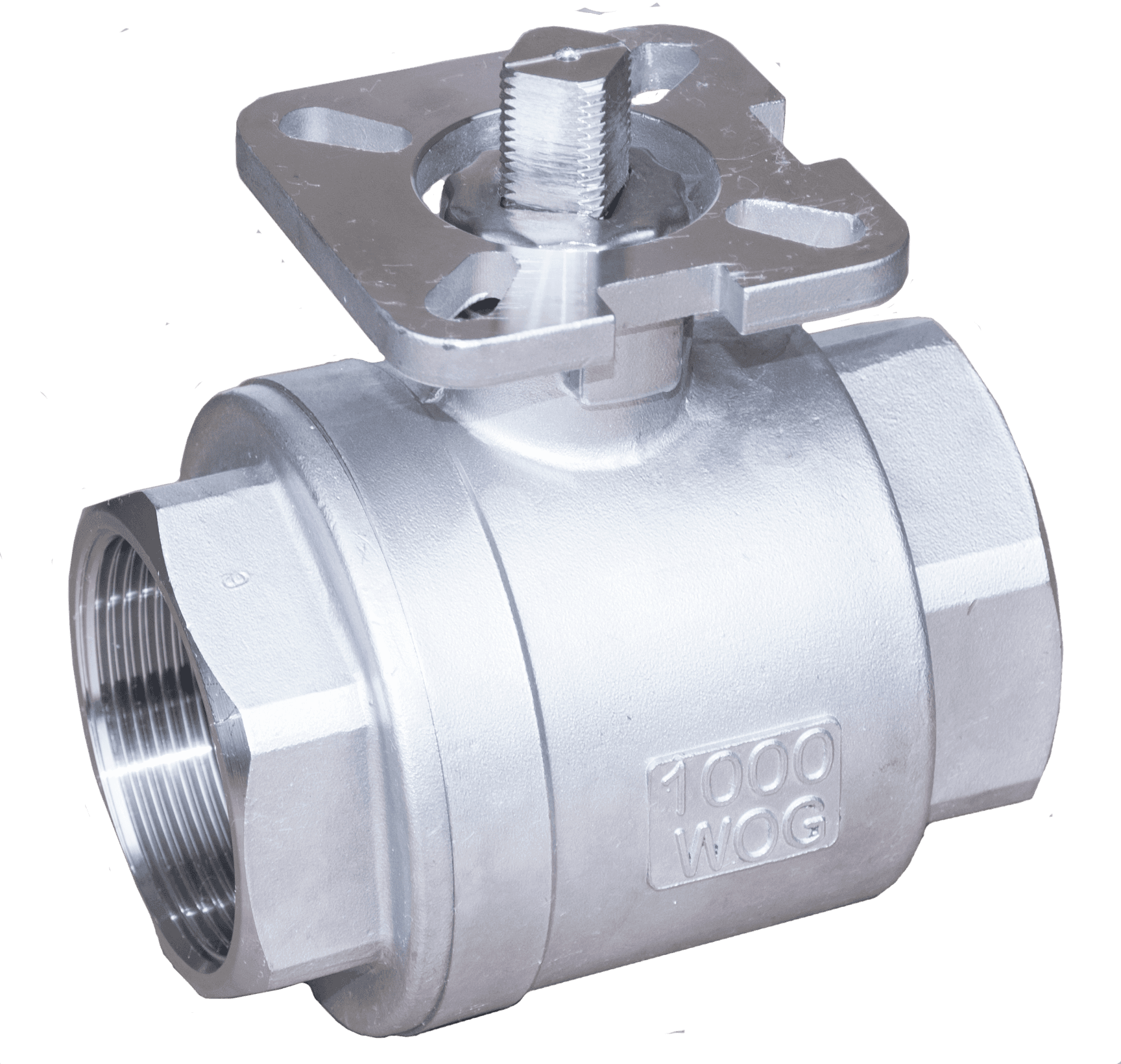

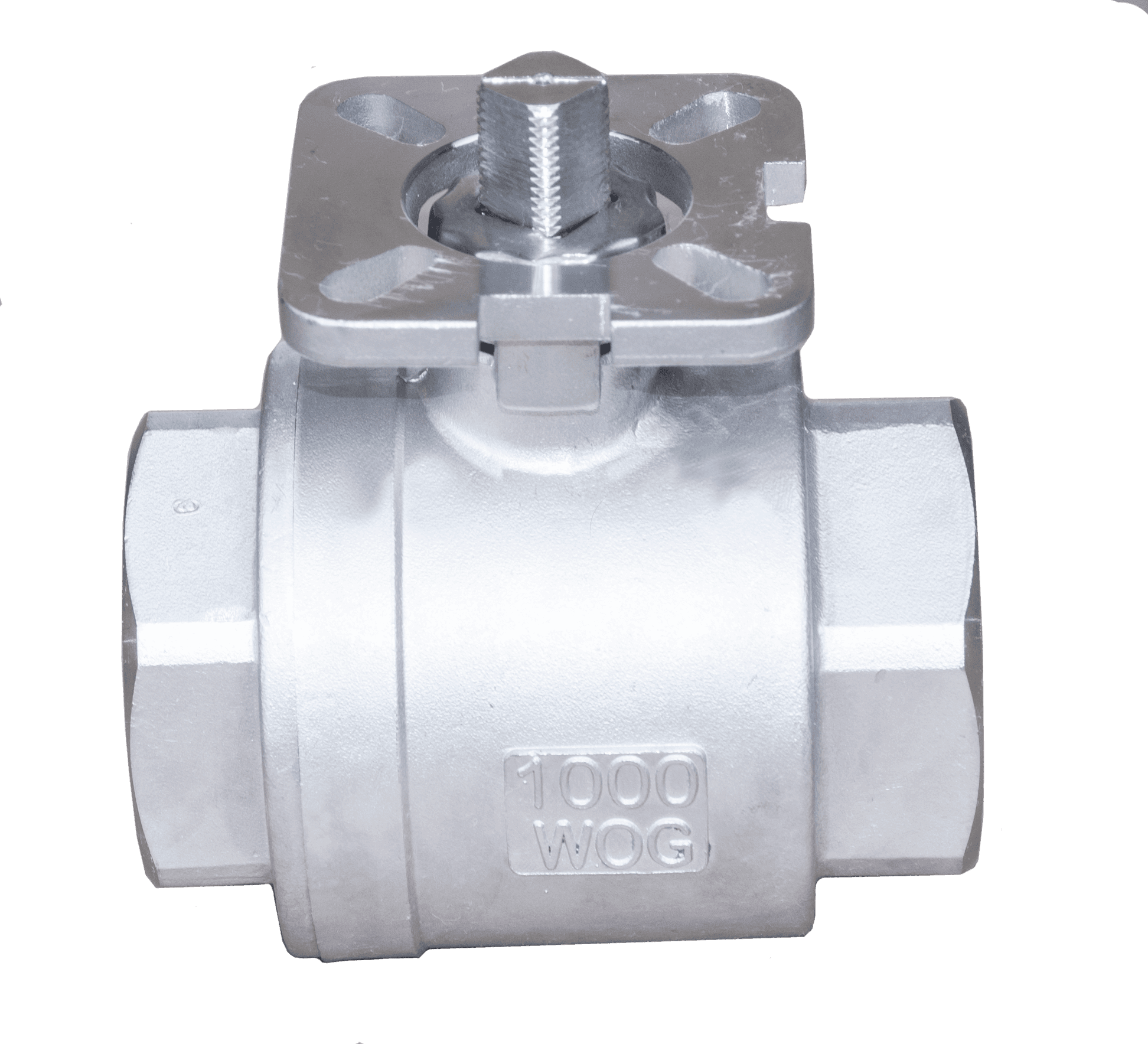

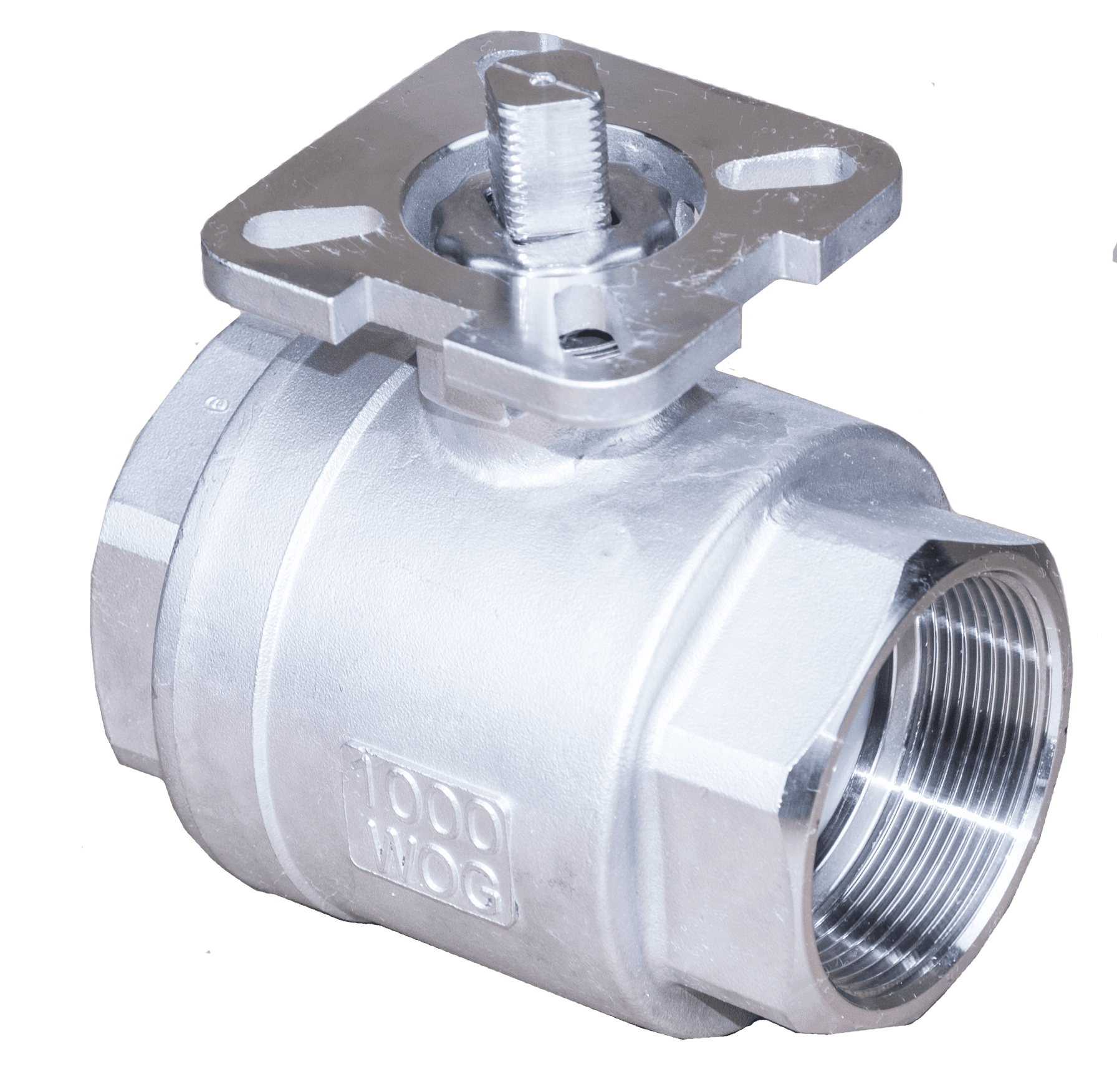

2PC Threaded High Mounting Pad Ball Valve
2PC 高安装座球阀
OVERVIEW
Two-piece threaded ball valve with integrally cast ISO 5211 high mounting pad. Enables direct actuator mounting without brackets. Full port design for maximum flow.
Applications
▸Water, oil, gas lines
▸Chemical, petrochemical, pharmaceutical
▸Automatic control systems
▸High-demand industrial and HVAC applications

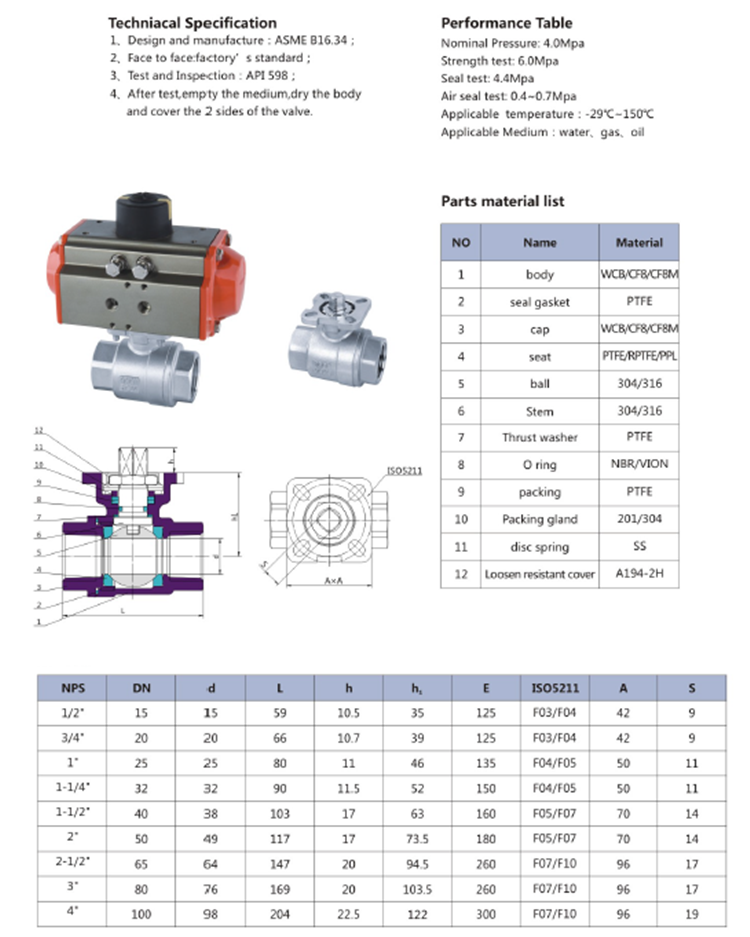

Technical Specifications
01 — Features
Two-piece body – compact, lightweight, economical
Integral ISO 5211 high mounting pad – direct actuator mounting, no bracket needed
Full port design – minimal pressure drop, high Cv
Blow-out proof stem & anti-static device
Threaded ends: NPT, BSP, BSPT, DIN (1/4" to 4")
Materials: CF8, CF8M (SS316/304), WCB, brass
Seat options: PTFE, RPTFE, PPL
Pressure rating: up to 1000 PSI / PN63
Live-loaded packing gland – self-adjusting for no leakage
02 — Advantages
Saves space and cost – no valve-actuator mounting kit needed
Fast, economical in-line maintenance
Ready for automation – accepts pneumatic or electric actuators
Bubble-tight shut-off
Corrosion-resistant, long service life
03 — Standards
Design: ASME B16.34 / API 608
Thread: ASME B1.20.1 (NPT), ISO 7-1 (BSP), DIN 259/2999
Testing: API 598 / EN12266
Mounting pad: ISO 5211
Pressure: 1000 WOG (Water, Oil, Gas)
Temperature: -20°C to +200°C
Certifications: PED, CE, NACE MR0175 (optional)
