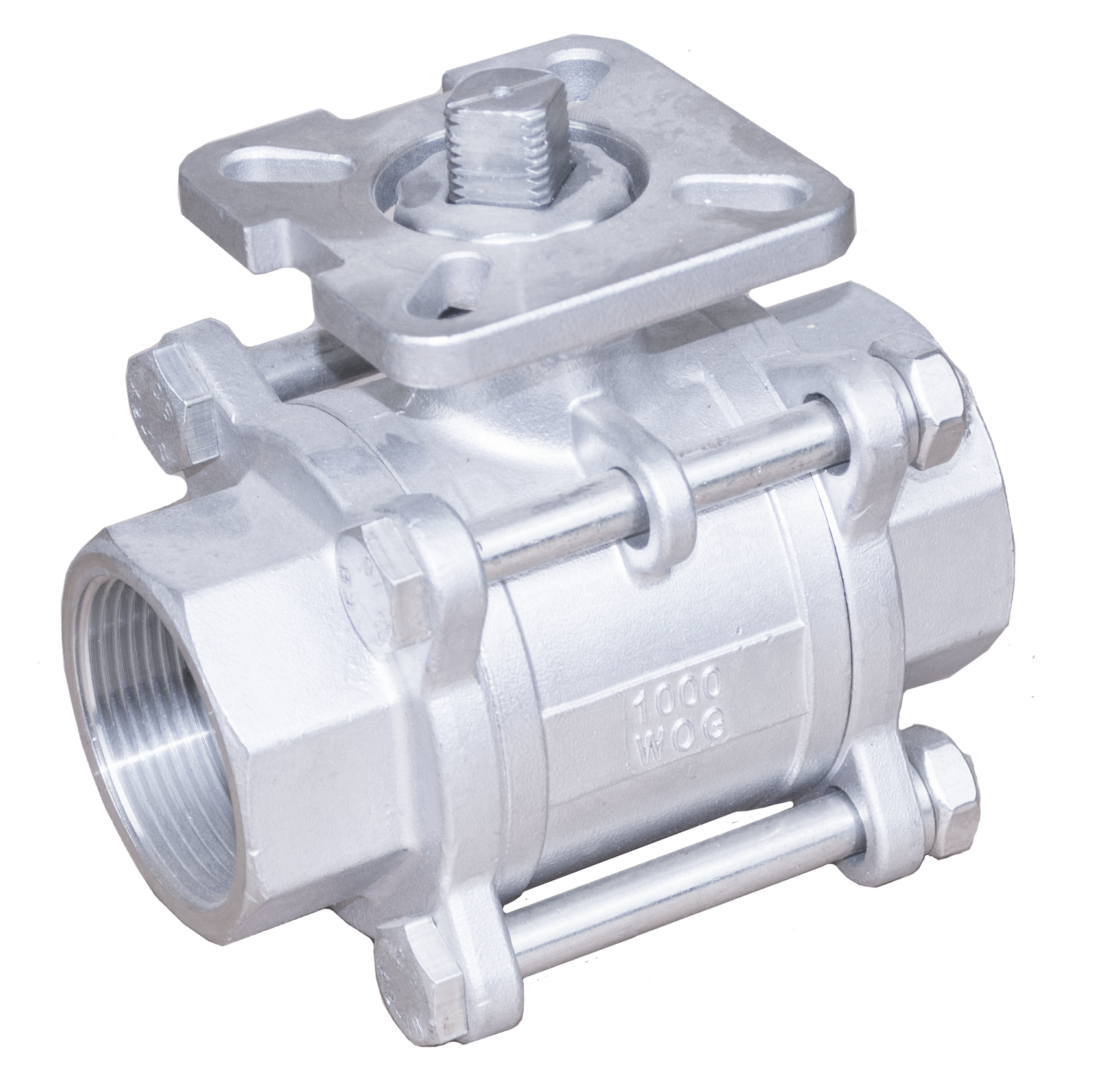

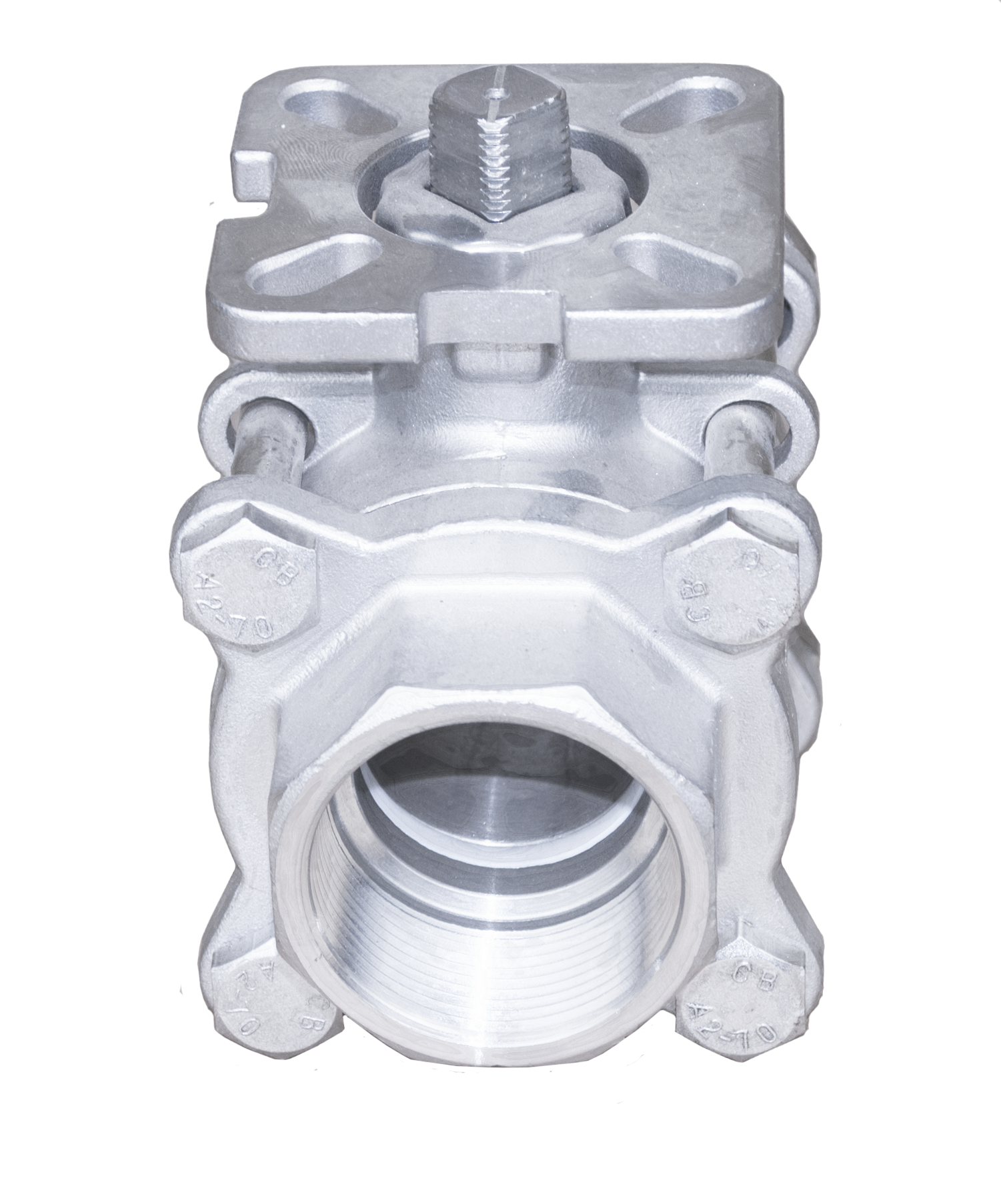

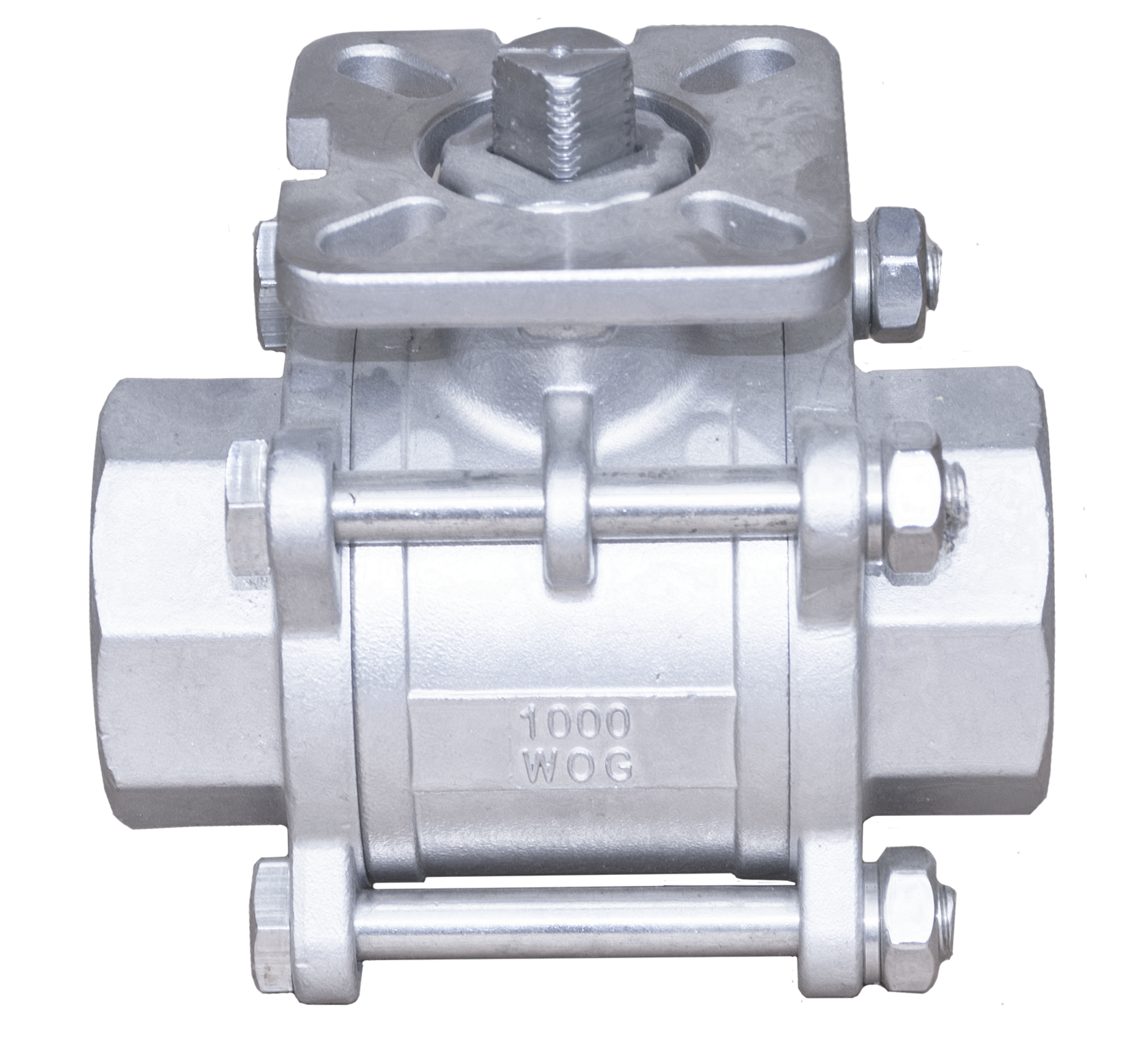

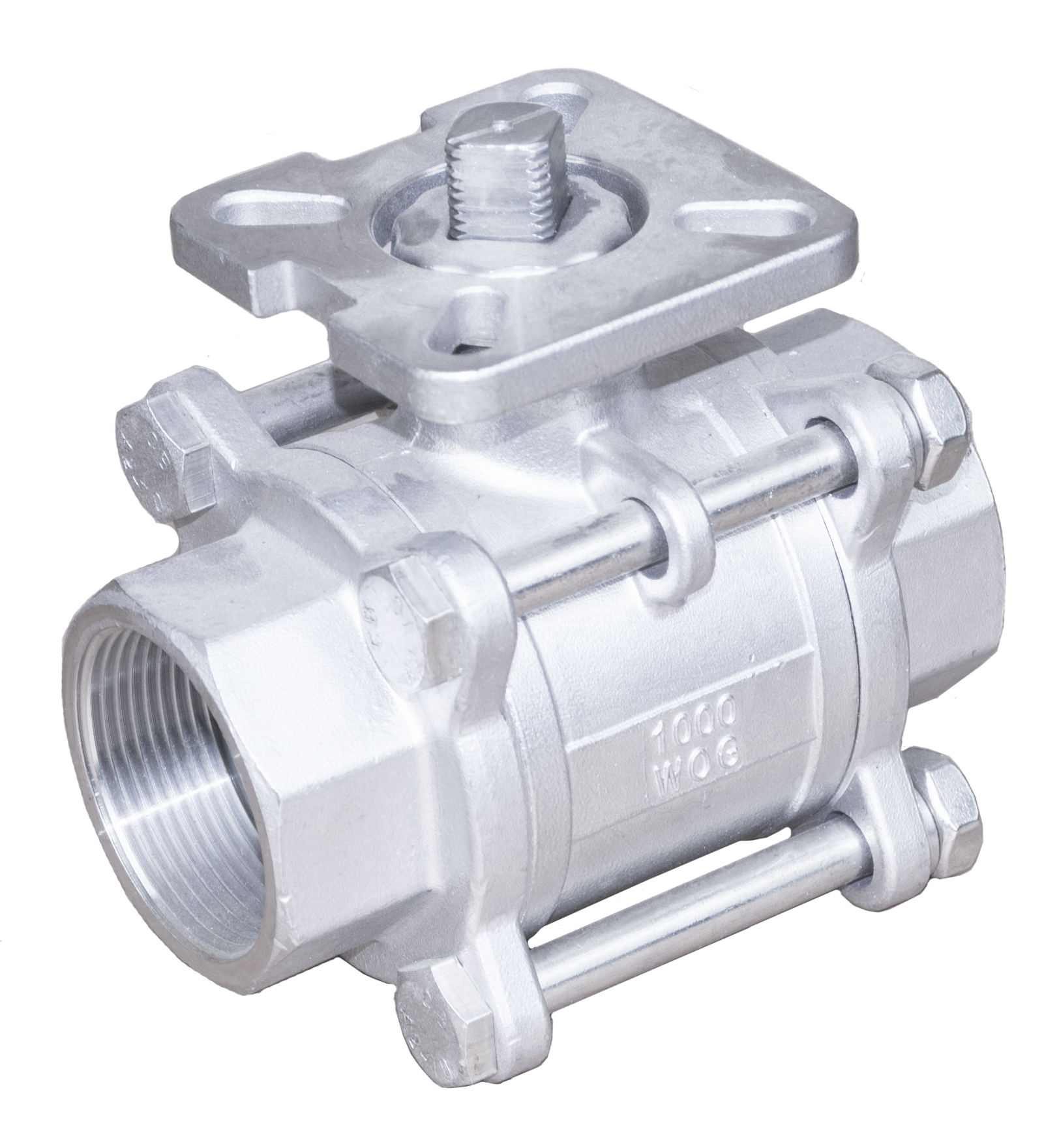

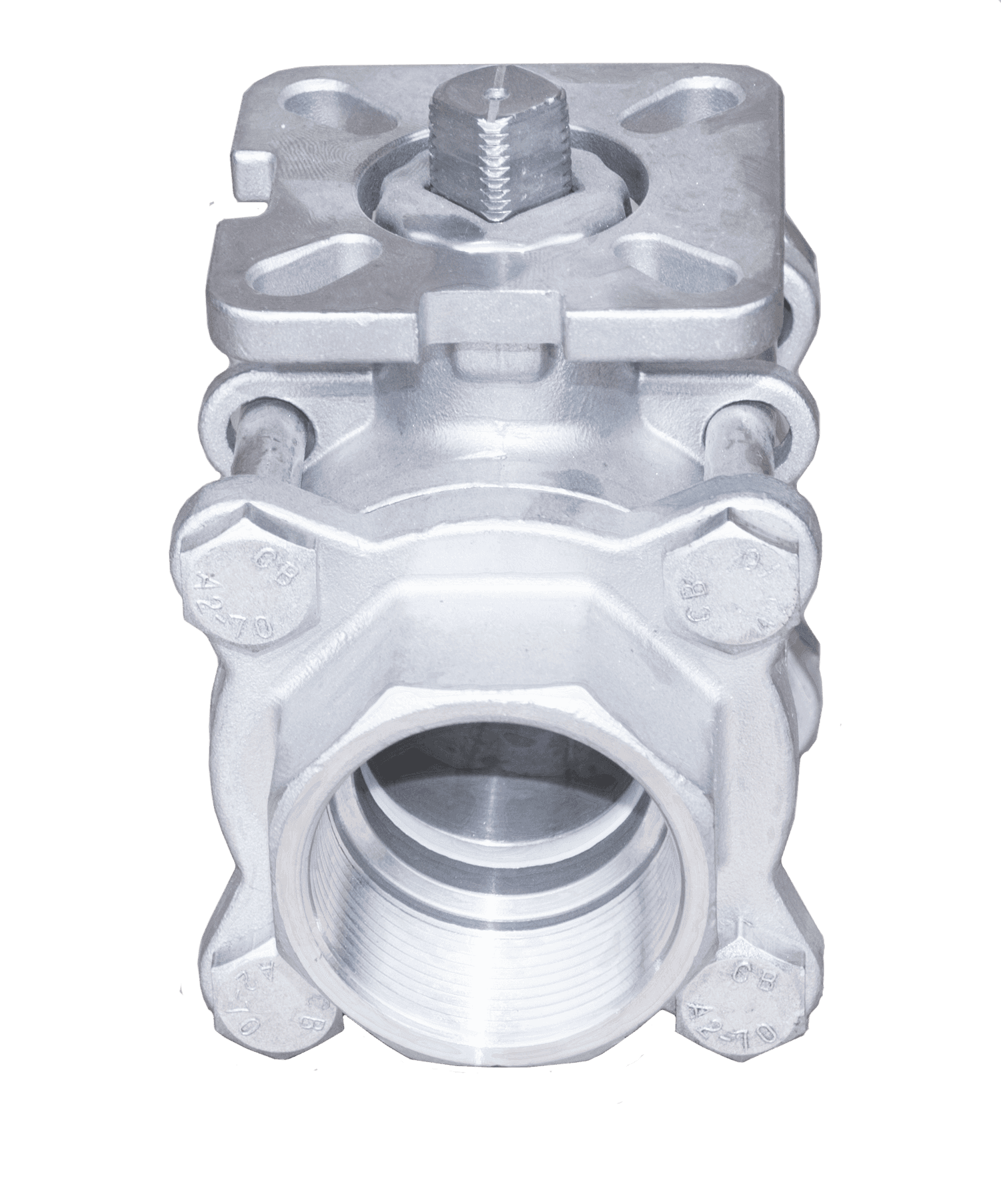

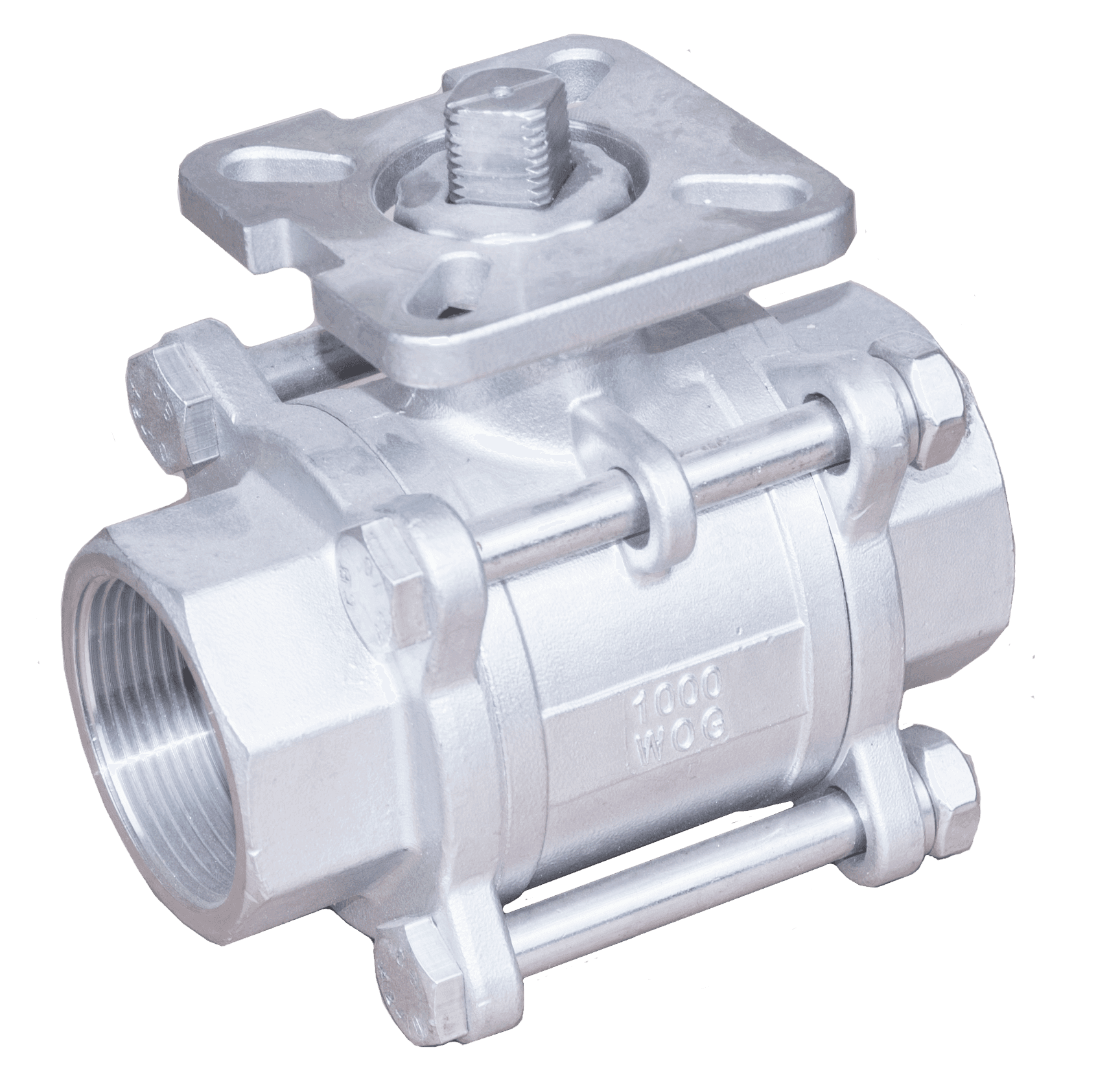

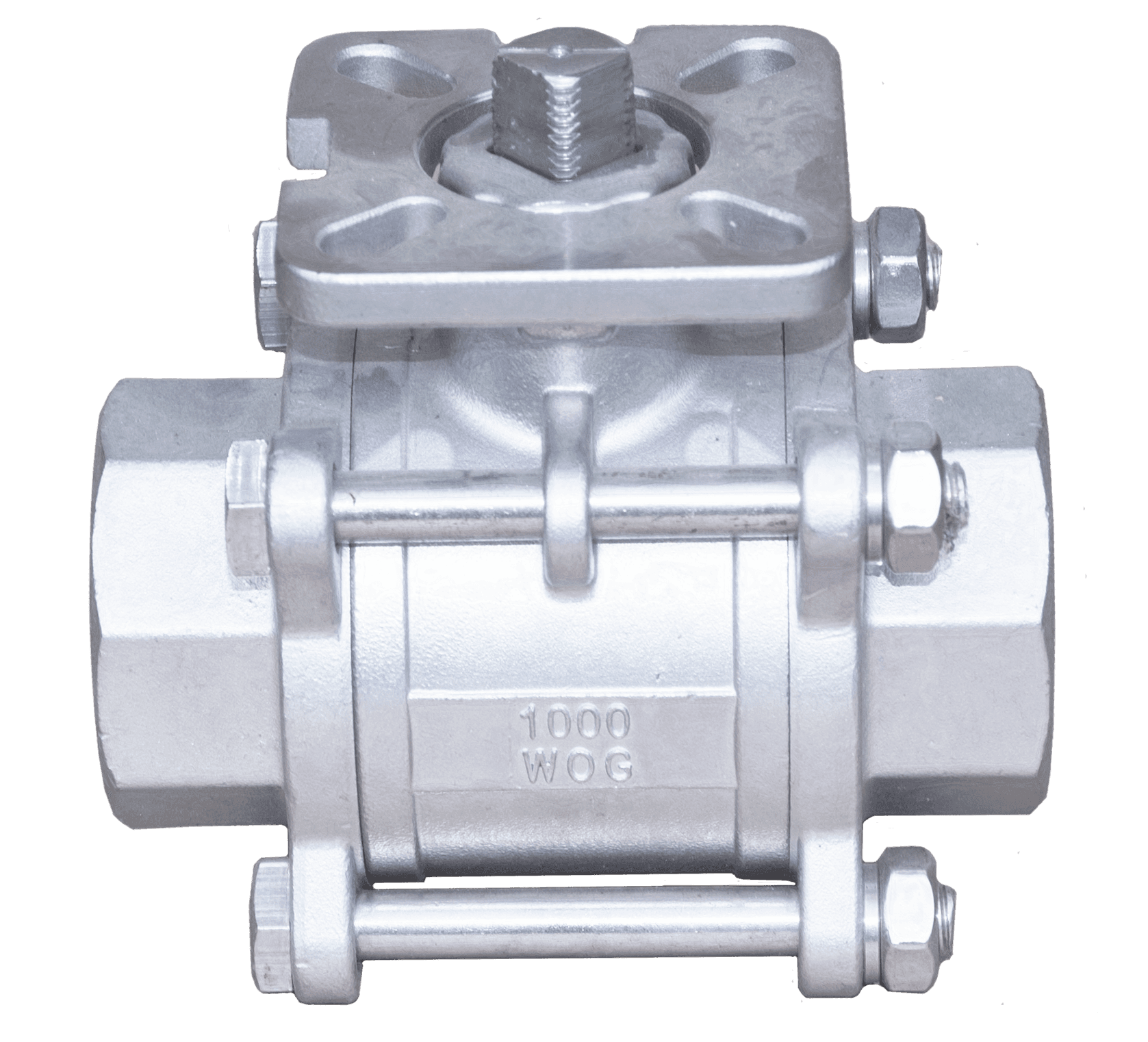

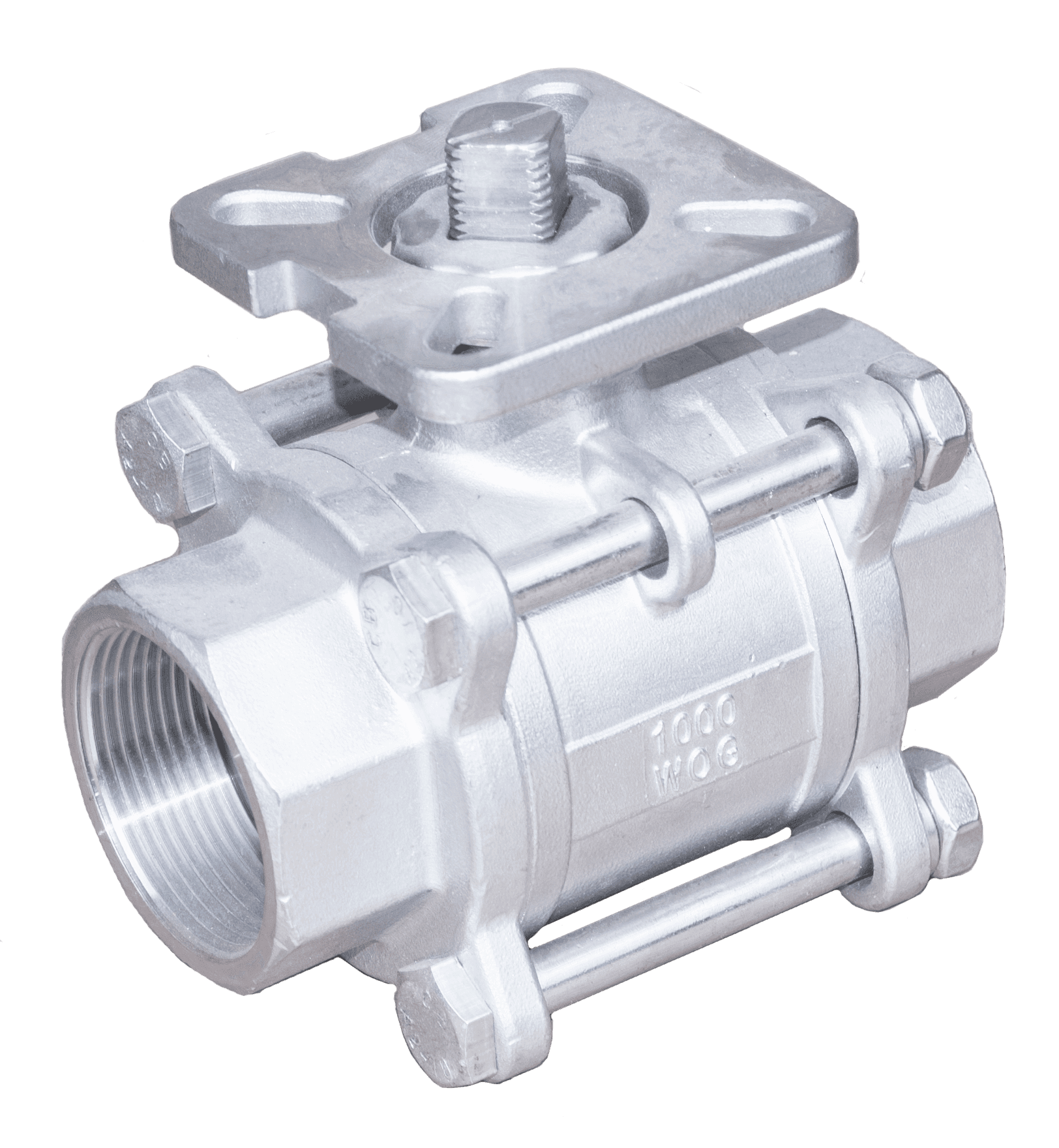

3PC Threaded High Mounting Pad Ball Valve
Three-piece threaded ball valve with integral ISO 5211 high mounting pad. Rated 1000 WOG, full port, designed for automatic control systems.
3PC Threaded High Mounting Pad Ball Valve
Three-piece threaded ball valve with integral ISO 5211 high mounting pad. Rated 1000 WOG, full port, designed for automatic control systems.
Three-piece threaded ball valve with integral ISO 5211 high mounting pad. Rated 1000 WOG, full port, designed for automatic control systems.

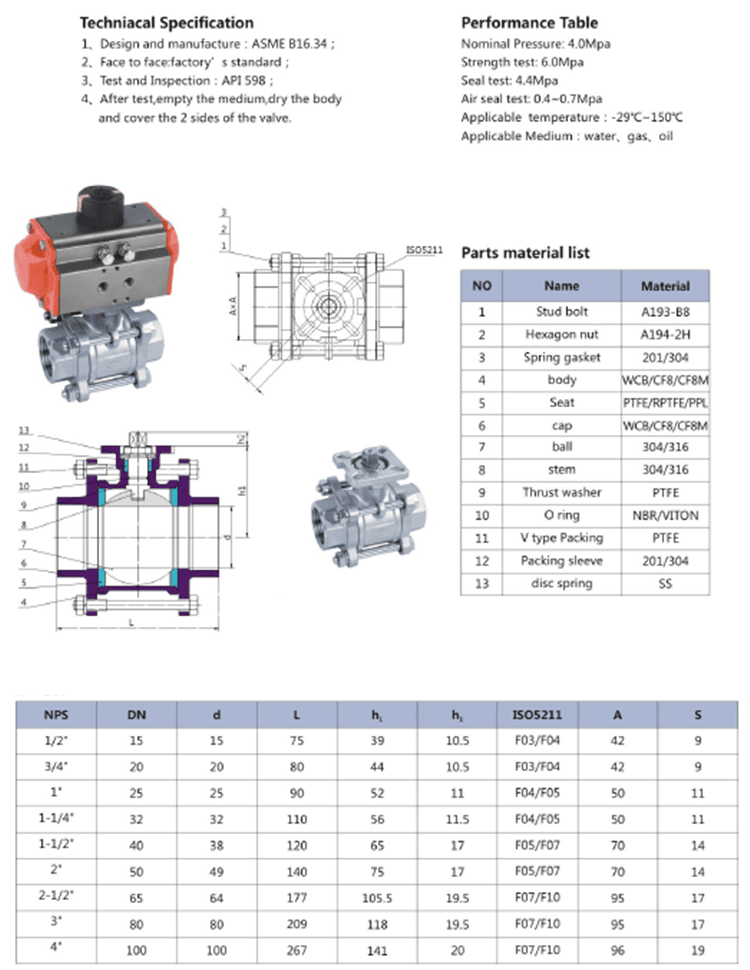

Specifications
| Design | ASME B16.34 / API 608 |
| Thread | ASME B1.20.1 (NPT), ISO 7-1 (BSP), DIN 259/2999 |
| Testing | API 598 / ISO 5208 |
| Mounting pad | ISO 5211 |
| Pressure | 1000 WOG / 1000 PSI |
| Temperature | -20°C to +180°C (PTFE), higher with PEEK/metal seats |
| Certifications | CE, PED, ATEX, NACE MR0175 (optional) |
Features & Benefits
- Three-piece bolted body for inline maintenance access to ball, seats, and stem
- Integral ISO 5211 high mounting pad for direct actuator mounting
- Full port design for minimal pressure drop
- Blow-out proof stem with anti-static device (upon request)
- Threaded ends in NPT, BSP, BSPT, and DIN (1/4" to 4")
Applications
- High-purity and sanitary processes
- Corrosive chemical lines, pharmaceutical, food & beverage
- Oil, gas, steam, water treatment
- Automatic control systems
Features
Three-piece bolted body for inline maintenance access to ball, seats, and stem
Integral ISO 5211 high mounting pad for direct actuator mounting
Full port design for minimal pressure drop
Blow-out proof stem with anti-static device (upon request)
Threaded ends in NPT, BSP, BSPT, and DIN (1/4" to 4")
