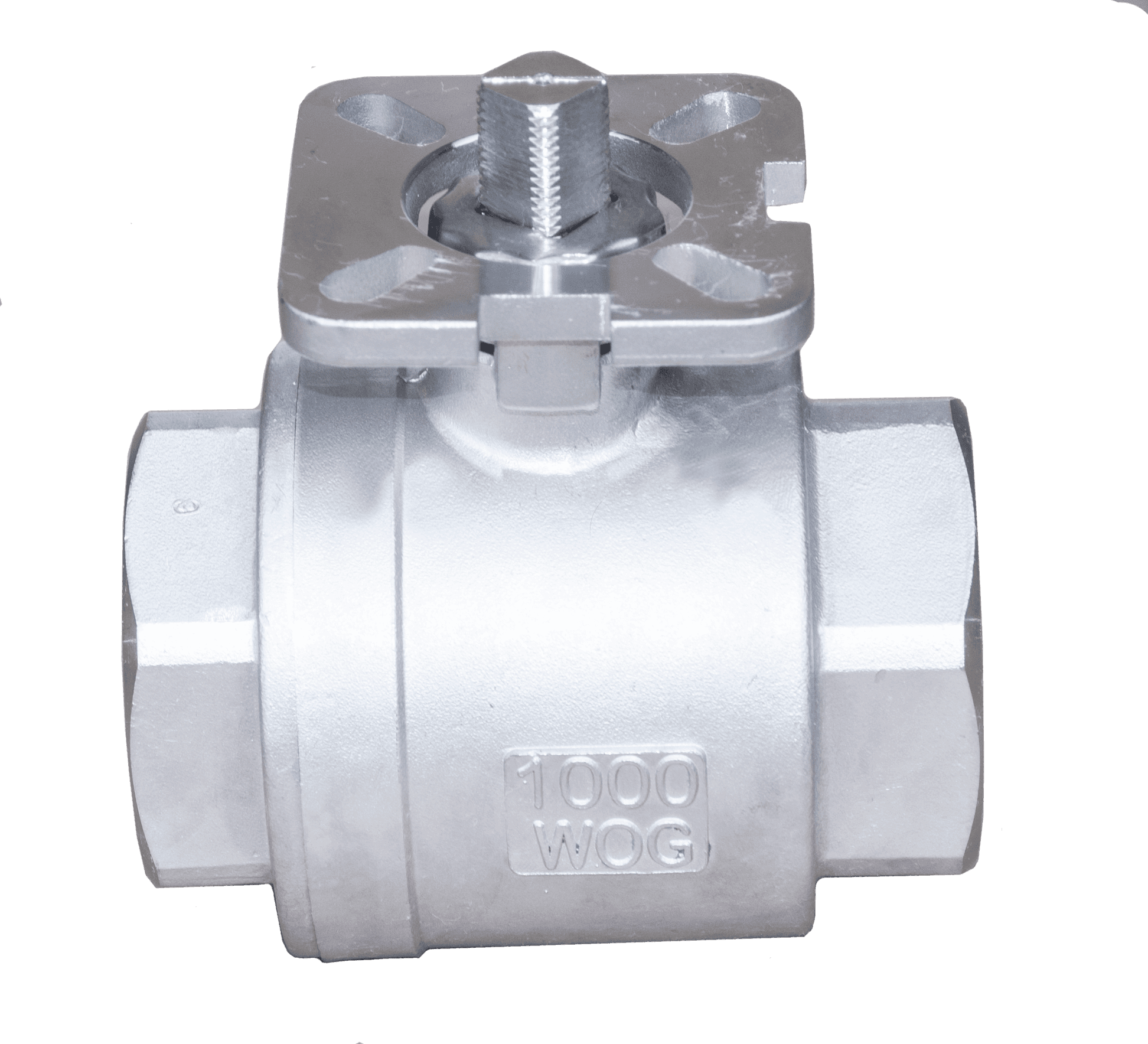

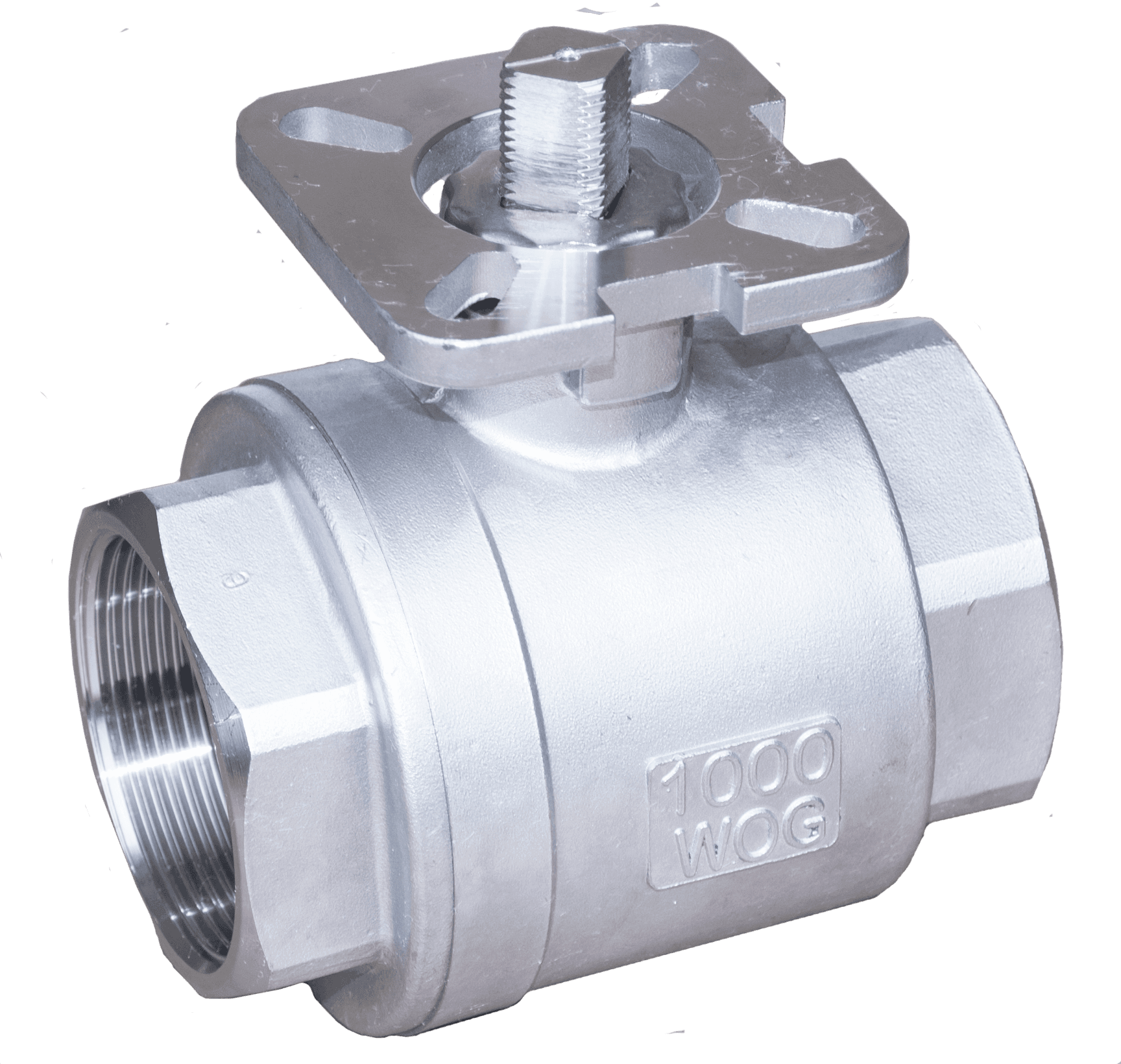

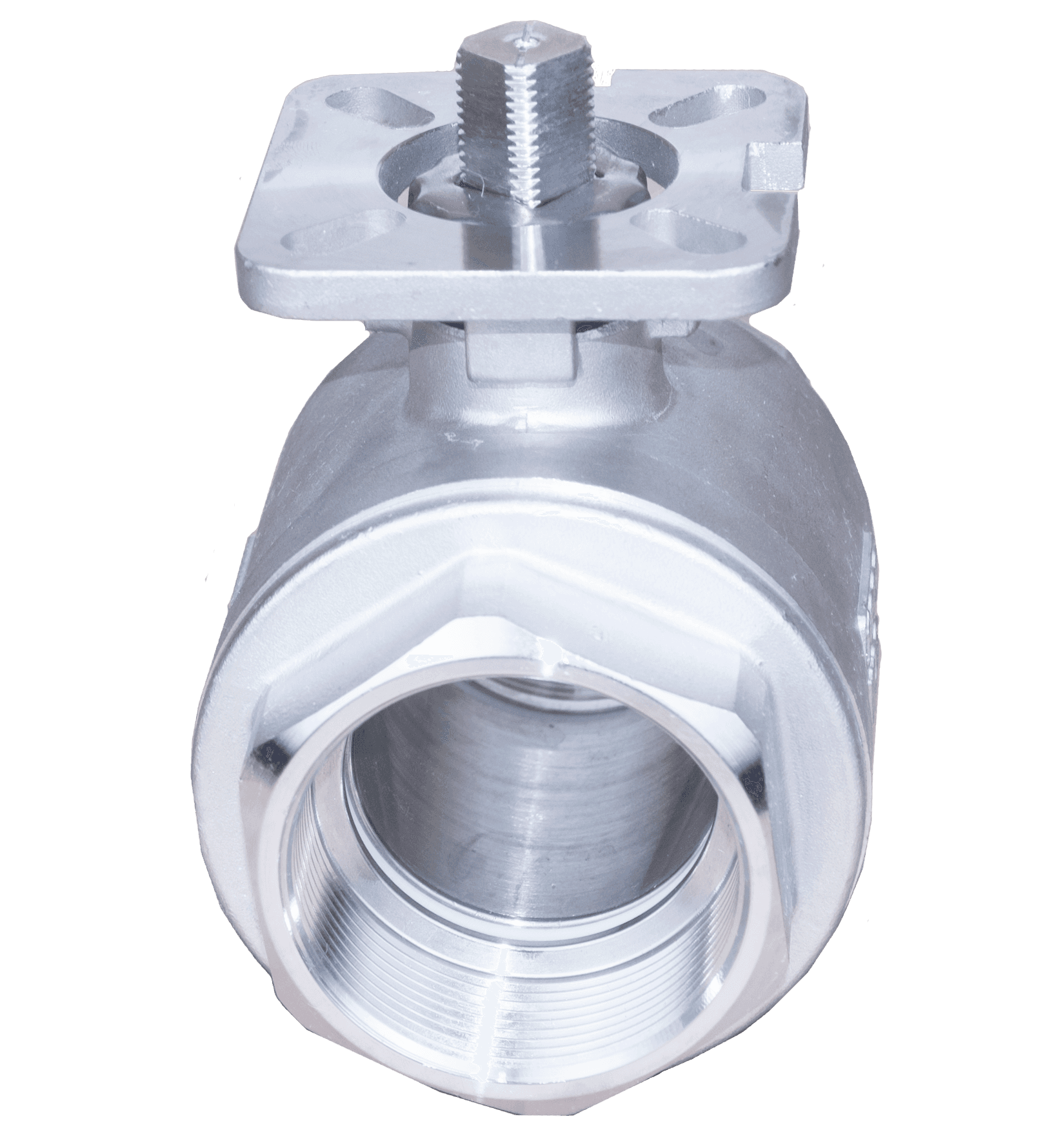

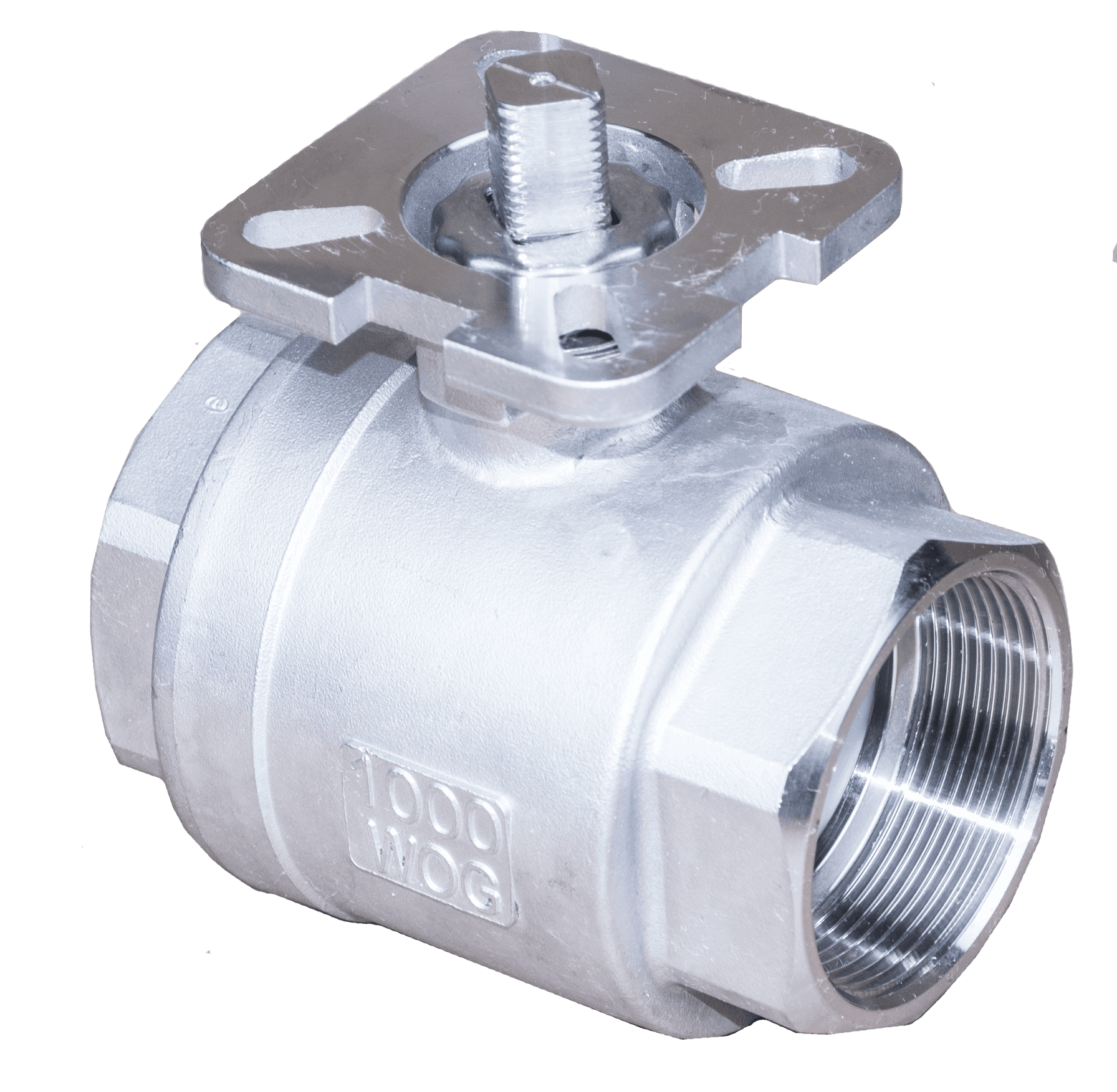

2PC Threaded High Mounting Pad Ball Valve
Two-piece threaded ball valve with integral ISO 5211 mounting pad for direct actuator mounting. Designed for water, oil, gas, and industrial applications up to 1000 WOG.
RECOMMENDED
2PC Threaded High Mounting Pad Ball Valve
Two-piece threaded ball valve with integral ISO 5211 mounting pad for direct actuator mounting. Designed for water, oil, gas, and industrial applications up to 1000 WOG.
Two-piece threaded ball valve with integral ISO 5211 mounting pad for direct actuator mounting. Designed for water, oil, gas, and industrial applications up to 1000 WOG.

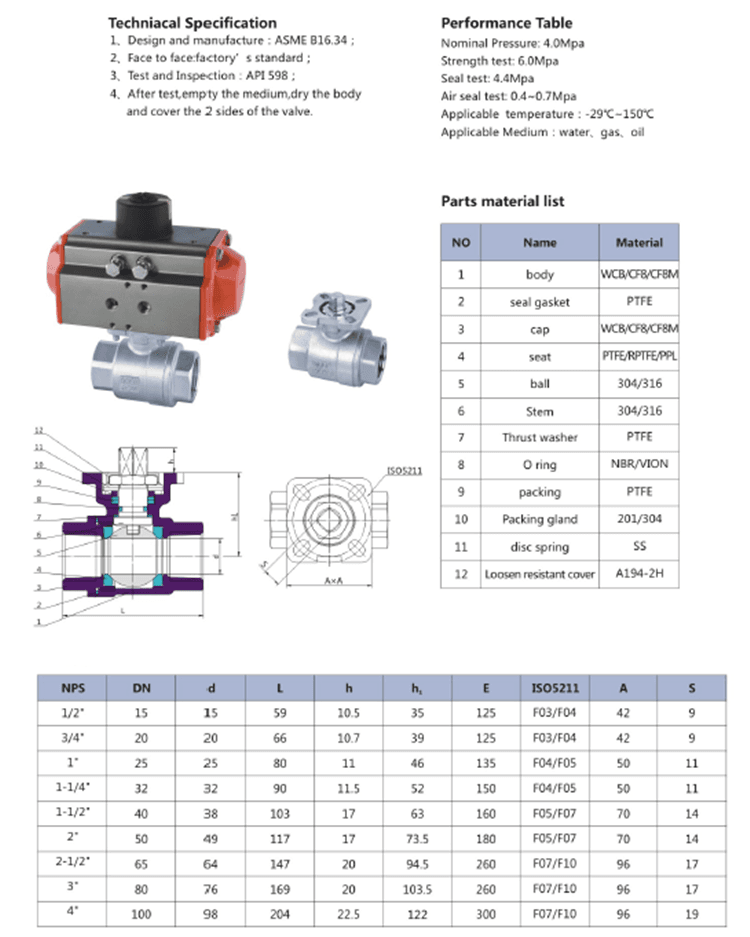

Specifications
| Design | ASME B16.34 / API 608 |
| Thread | ASME B1.20.1 (NPT), ISO 7-1 (BSP), DIN 259/2999-2 |
| Testing | API 598 / EN12266-2 |
| Mounting pad | ISO 5211-10 |
| Pressure | 1000WOG (Water, Oil, Gas) |
| Temperature | -20°C to +200°C |
| Certifications | PED, CE, NACE MR0175 (optional) |
Features & Benefits
- Two-piece body for compact, lightweight, and economical installation
- Integral ISO 5211 high mounting pad enables direct actuator mounting without brackets
- Full port design minimizes pressure drop and delivers high Cv
- Blow-out proof stem and anti-static device for enhanced safety
- Threaded ends in NPT, BSP, BSPT, DIN from 1/4" to 4"
Applications
- Water, oil, and gas lines
- Chemical, petrochemical, and pharmaceutical processing
- Automatic control systems and high-demand industrial processes
- HVAC and general industrial piping systems
Features
Two-piece body for compact, lightweight, and economical installation
Integral ISO 5211 high mounting pad enables direct actuator mounting without bra
Full port design minimizes pressure drop and delivers high Cv
Blow-out proof stem and anti-static device for enhanced safety
Threaded ends in NPT, BSP, BSPT, DIN from 1/4" to 4"
