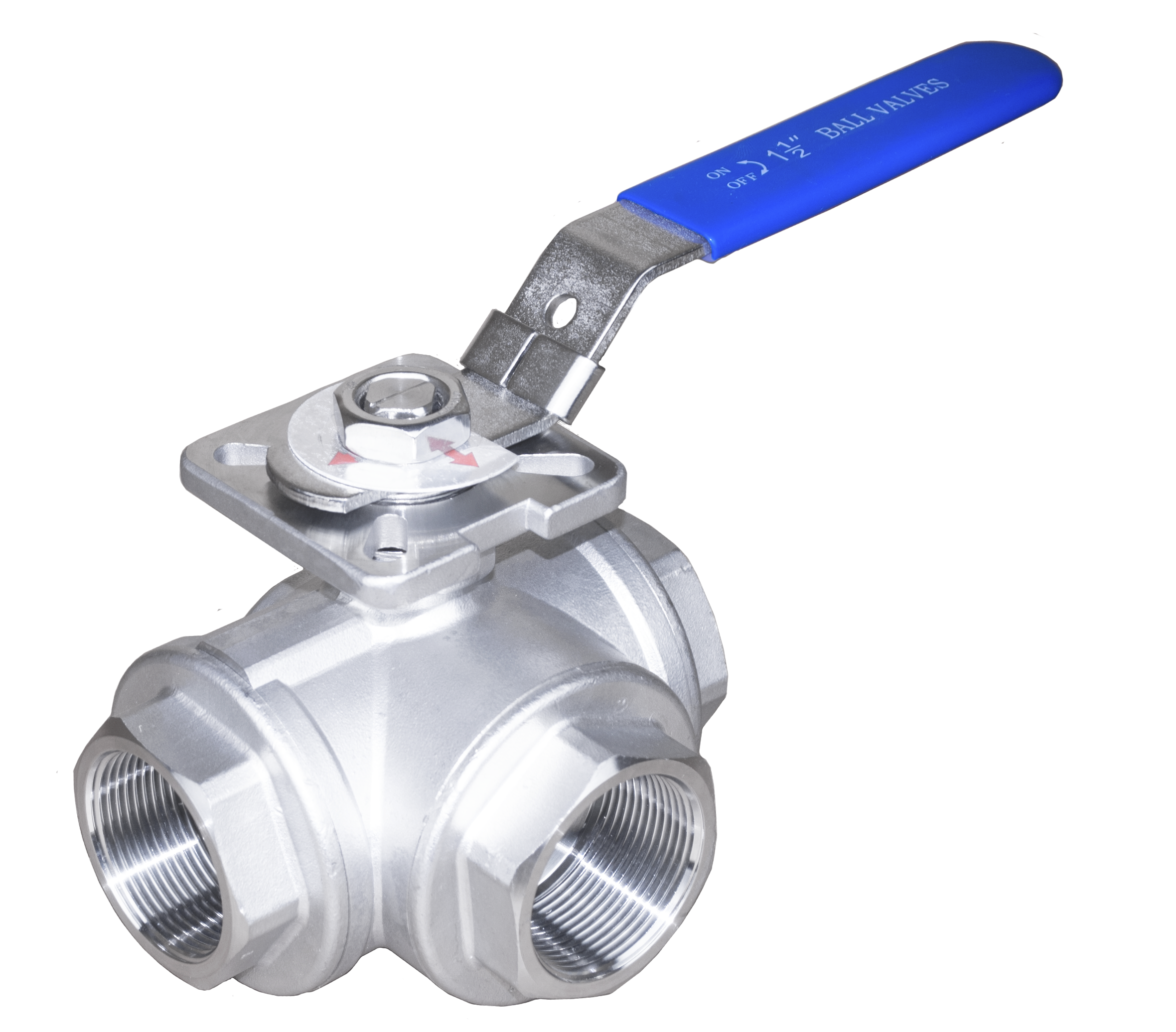

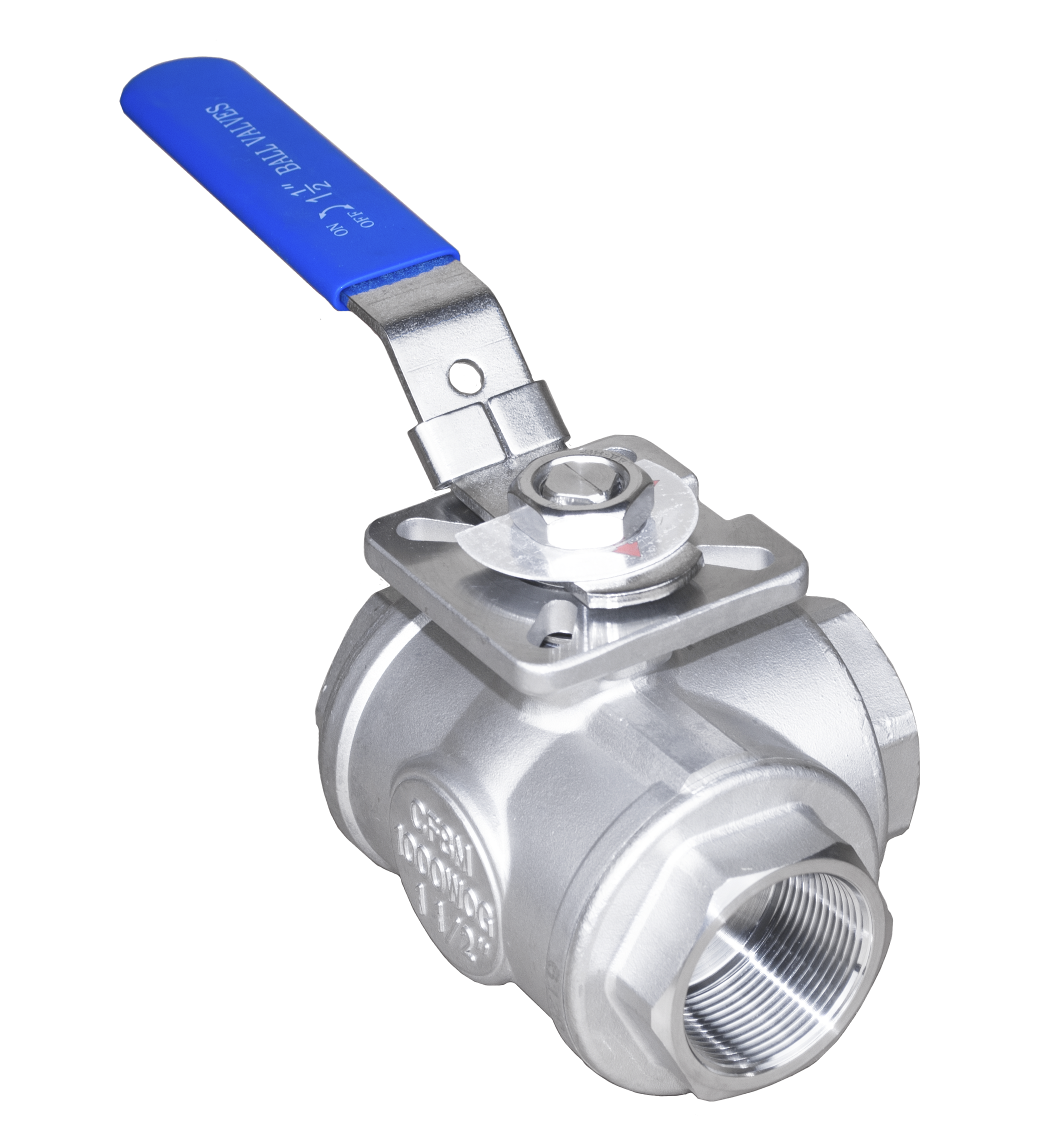

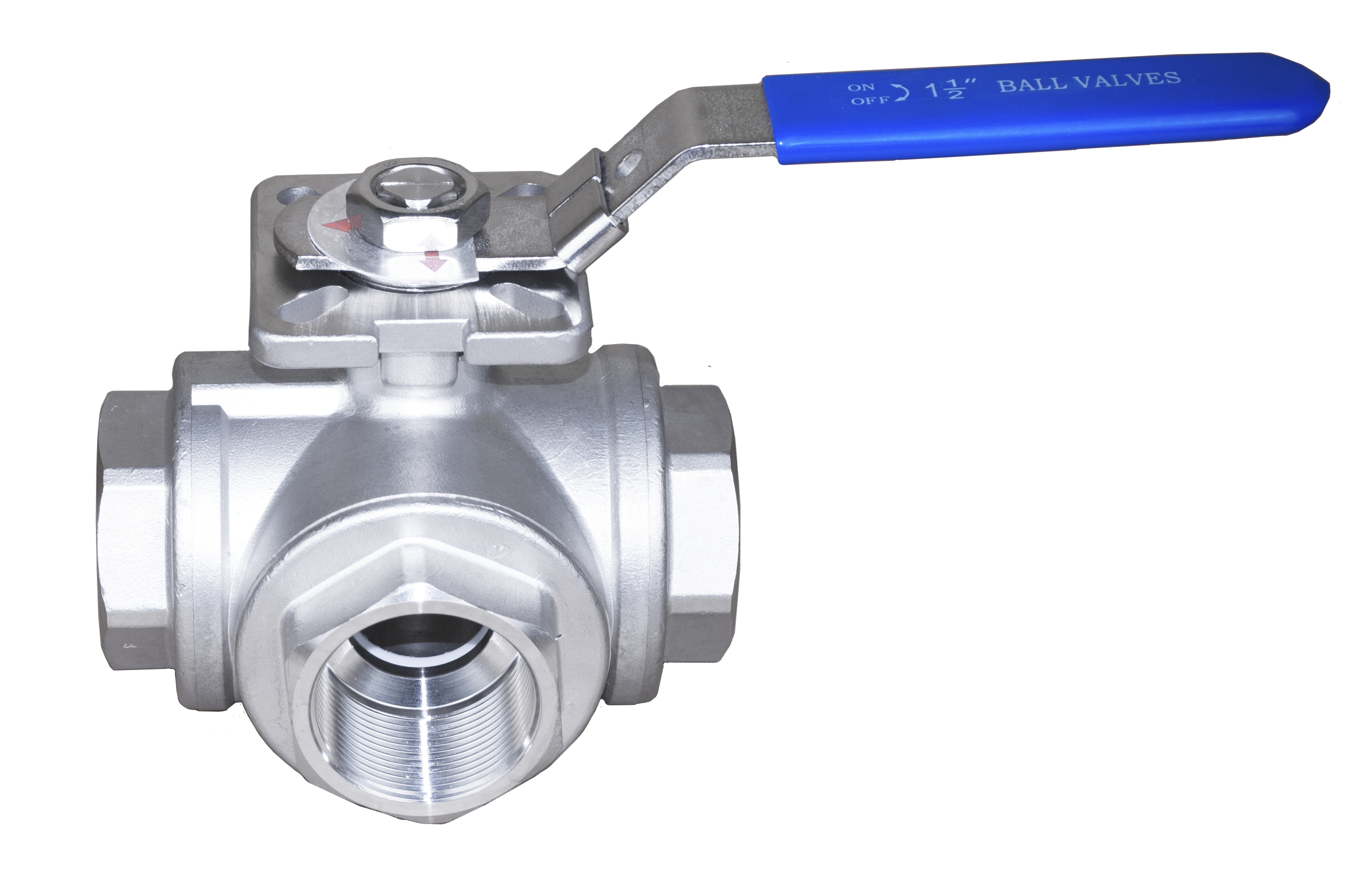

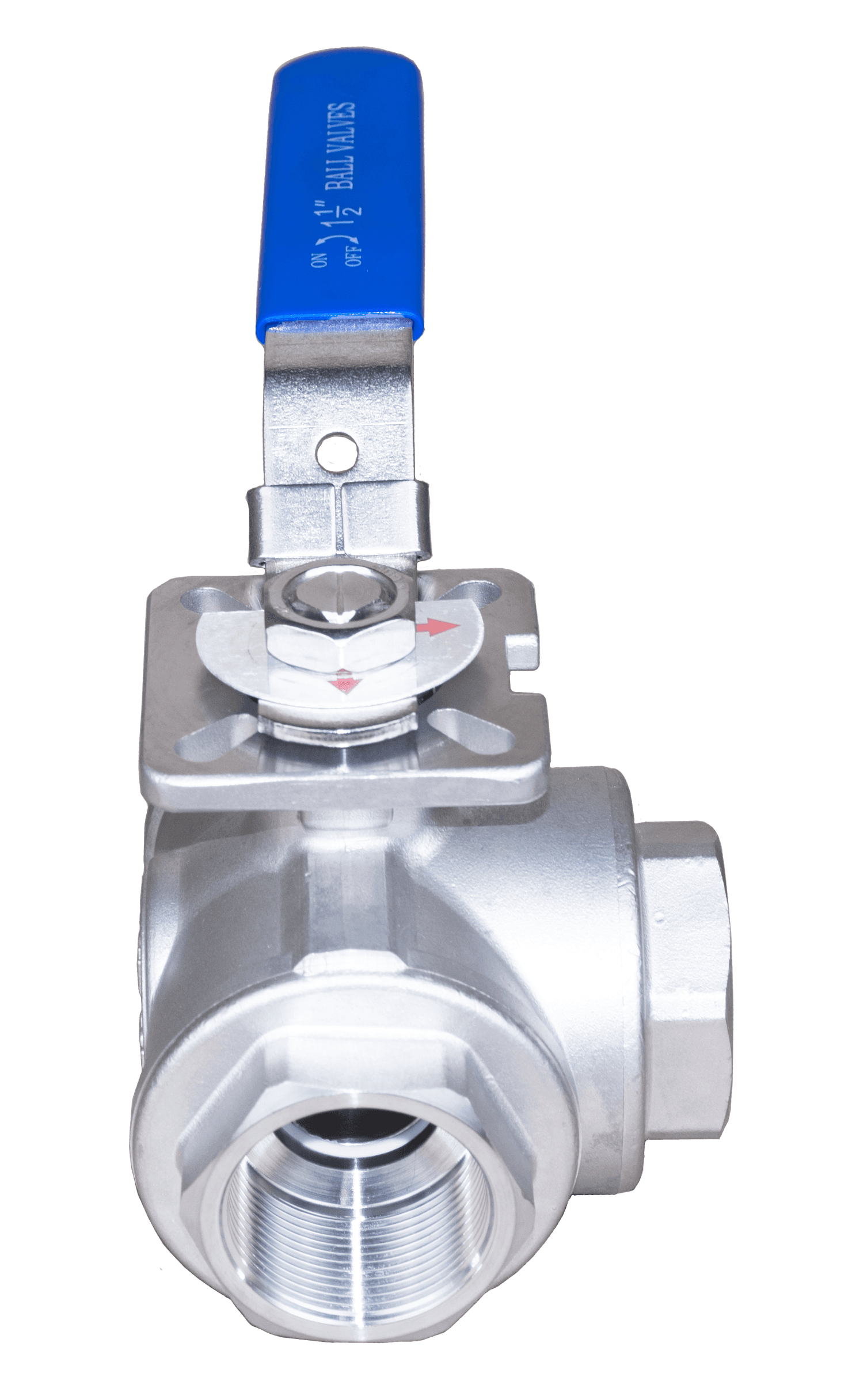

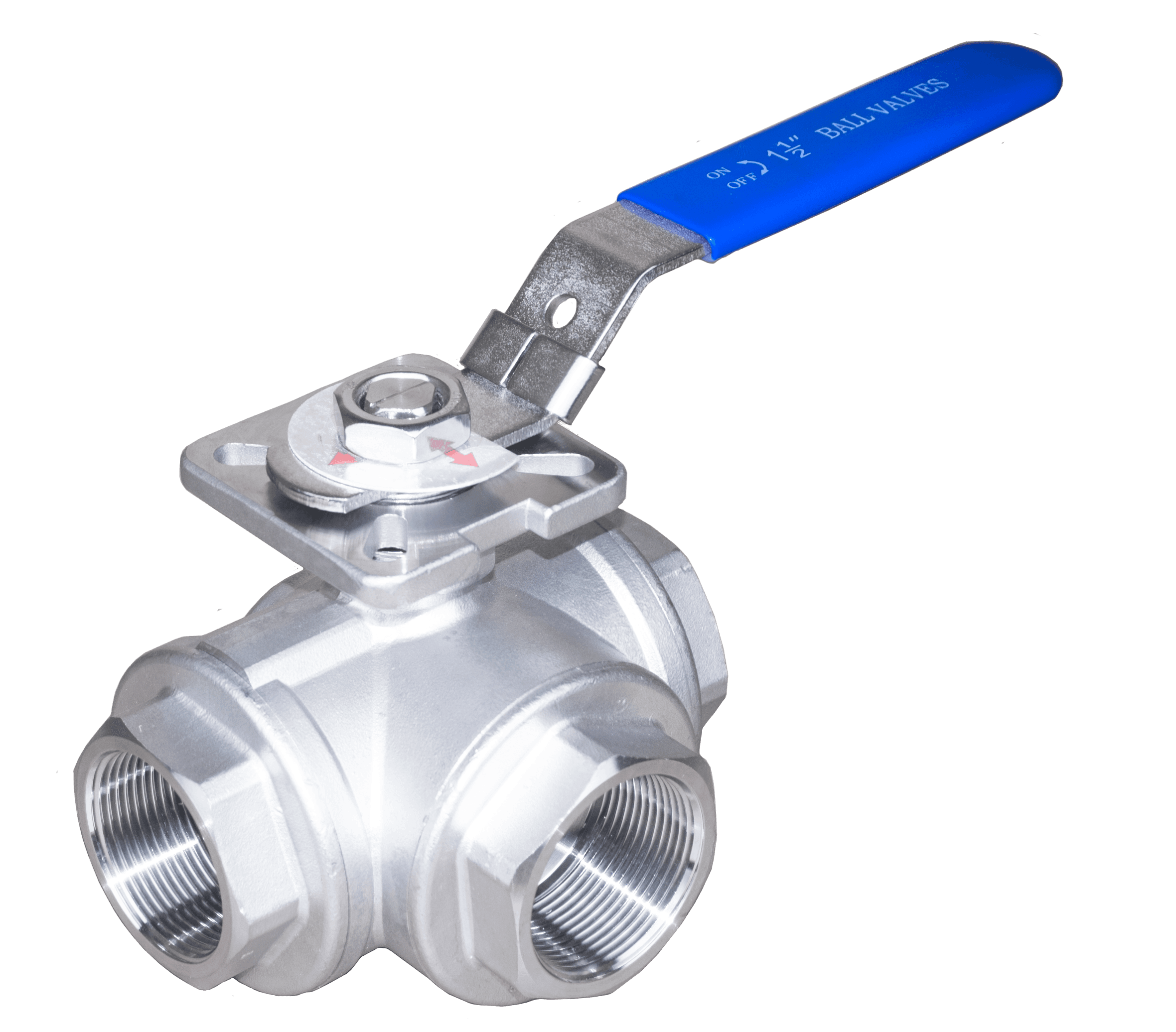

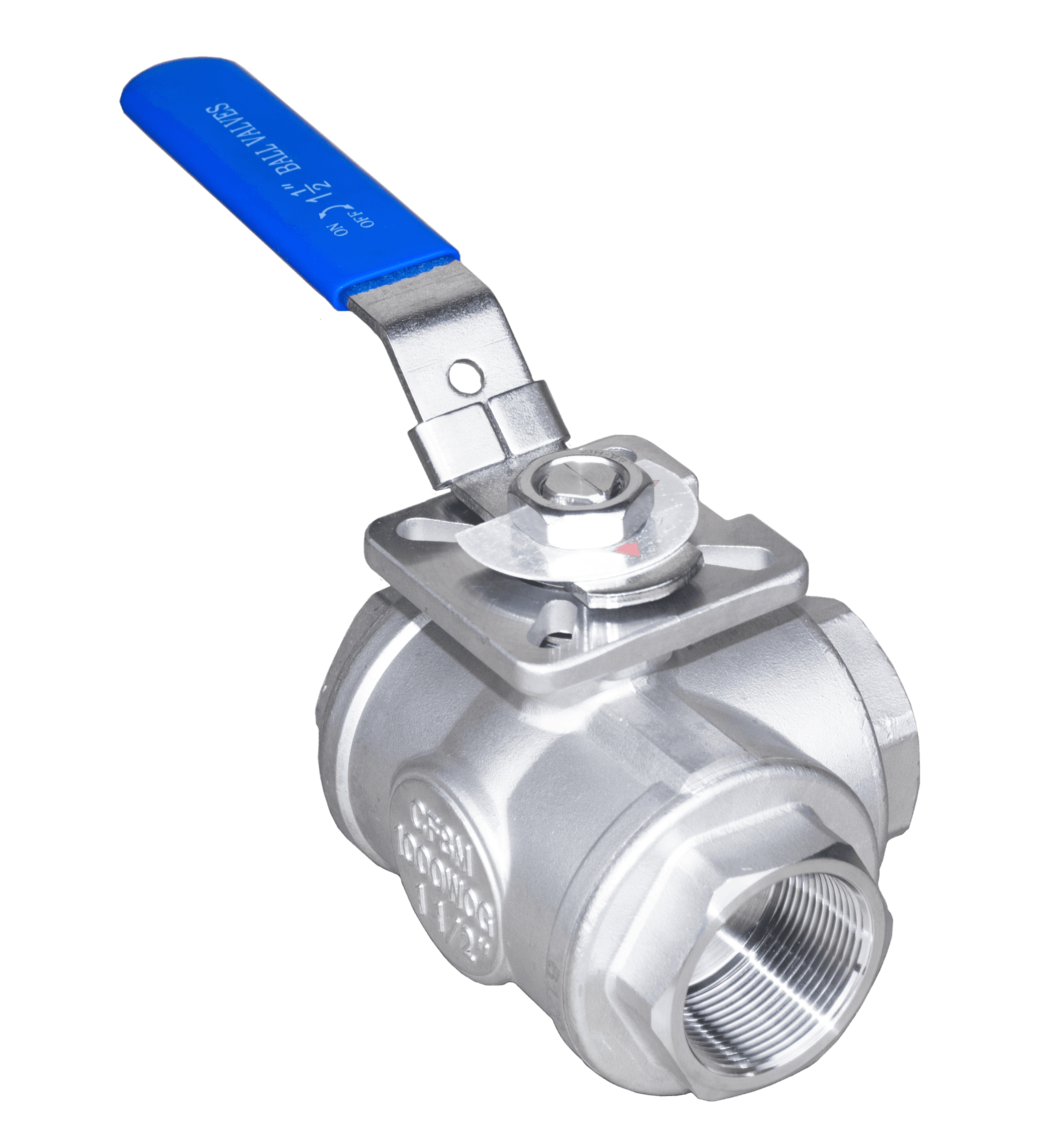

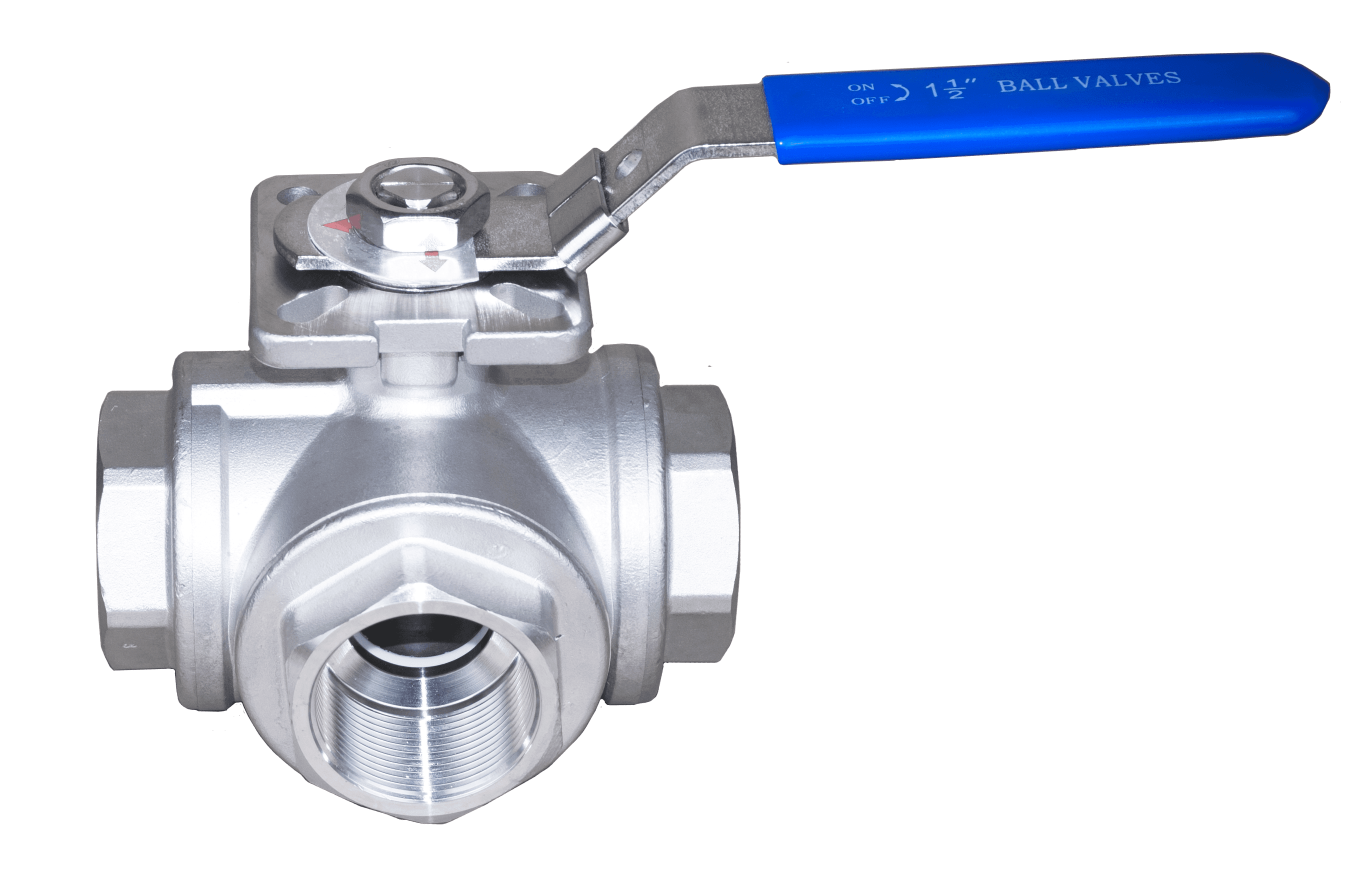

3-Way High Mounting Pad Ball Valve With Handle
Three-way ball valve with ISO 5211 mounting pad, threaded ends (NPT/BSP), rated up to 1000 PSI. Ideal for flow diversion and mixing.
RECOMMENDED
3-Way High Mounting Pad Ball Valve With Handle
Three-way ball valve with ISO 5211 mounting pad, threaded ends (NPT/BSP), rated up to 1000 PSI. Ideal for flow diversion and mixing.
Three-way ball valve with ISO 5211 mounting pad, threaded ends (NPT/BSP), rated up to 1000 PSI. Ideal for flow diversion and mixing.

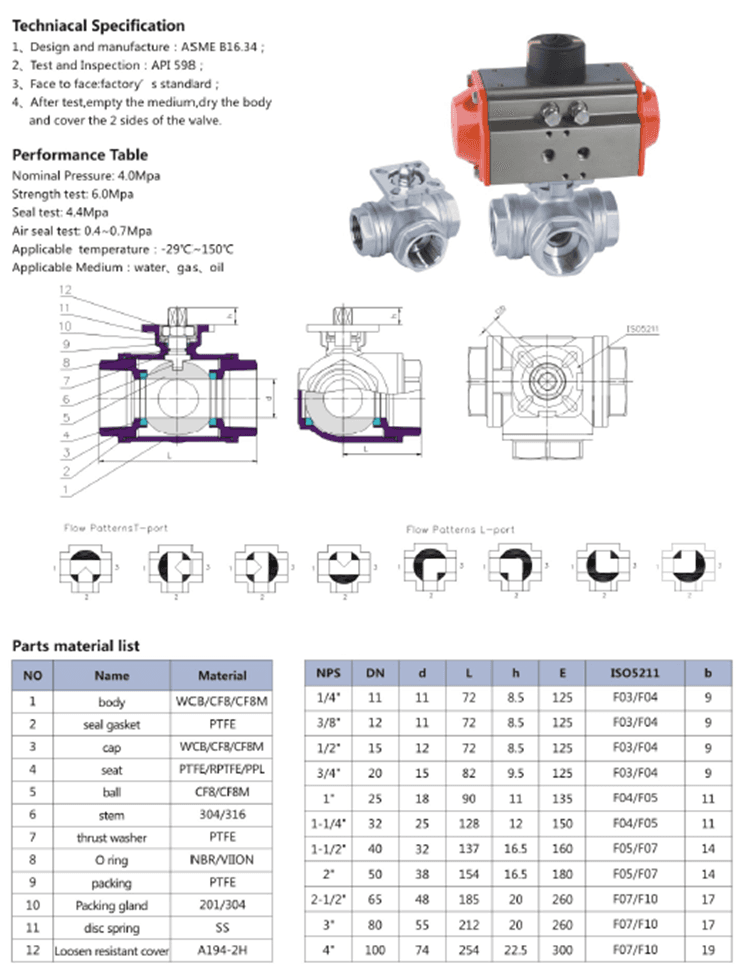

Specifications
| Design | ASME B16.34 |
| Testing | API 598 |
| Mounting pad | ISO 5211 |
| Thread standards | ISO 7-1 (BSP) or ASME B1.20.1 (NPT) |
| Pressure rating | up to 1000 PSI |
| Temperature range | -20°C to 200°C |
| Certifications | CE, PED (optional) |
Features & Benefits
- ISO 5211 high mounting pad for easy actuator integration
- L-port (90° diverter) or T-port (180° mixer) configurations
- Threaded ends in NPT or BSP per ISO 7-1 or ASME B1.20.1
- Blow-out proof stem for enhanced safety
- PTFE seats for reliable sealing across -20°C to 200°C
Applications
- Flow diversion and switching
- Mixing two inlets into one outlet
- Bypass lines for maintenance or control
- Tank filling and process automation
