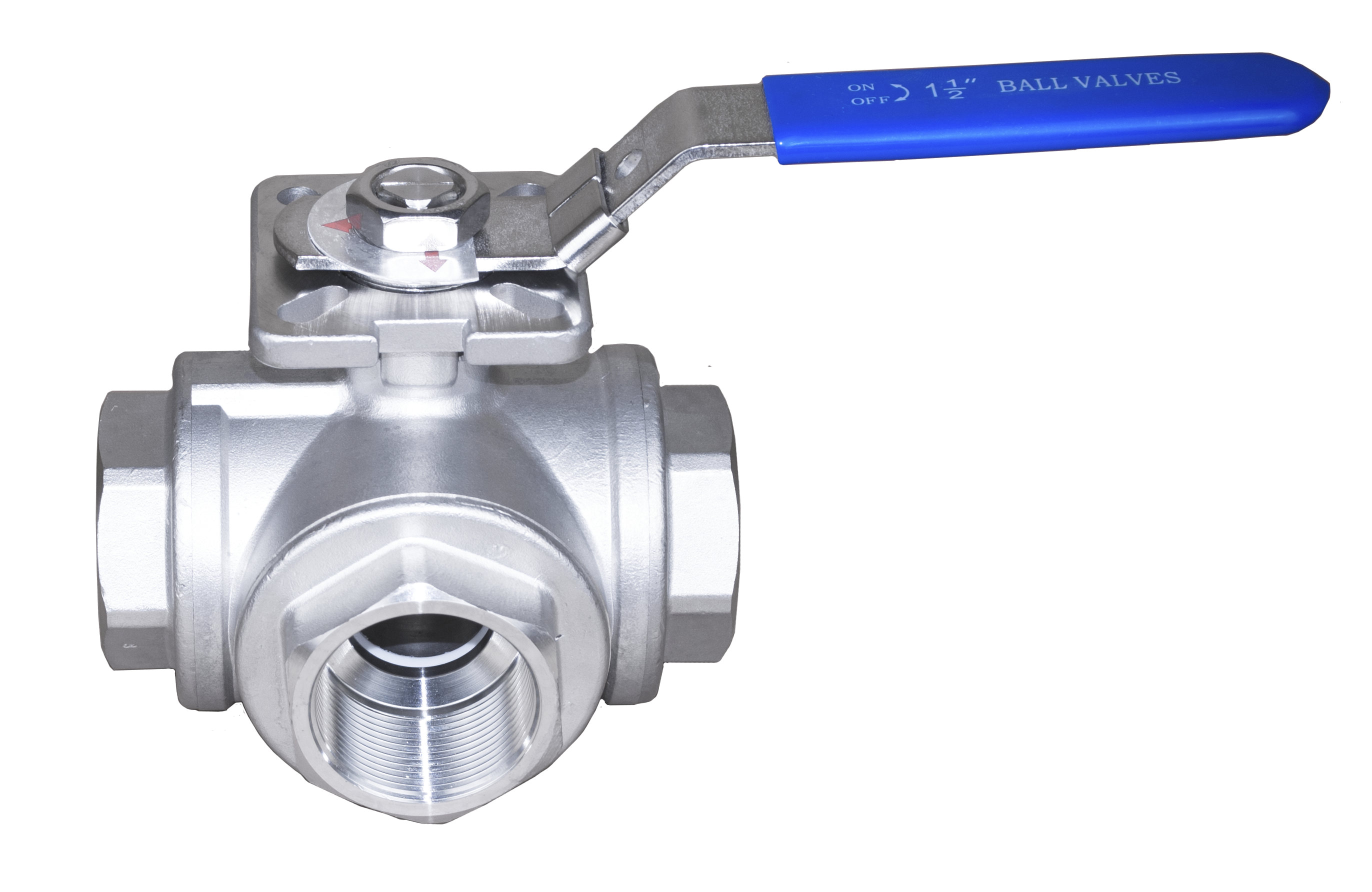

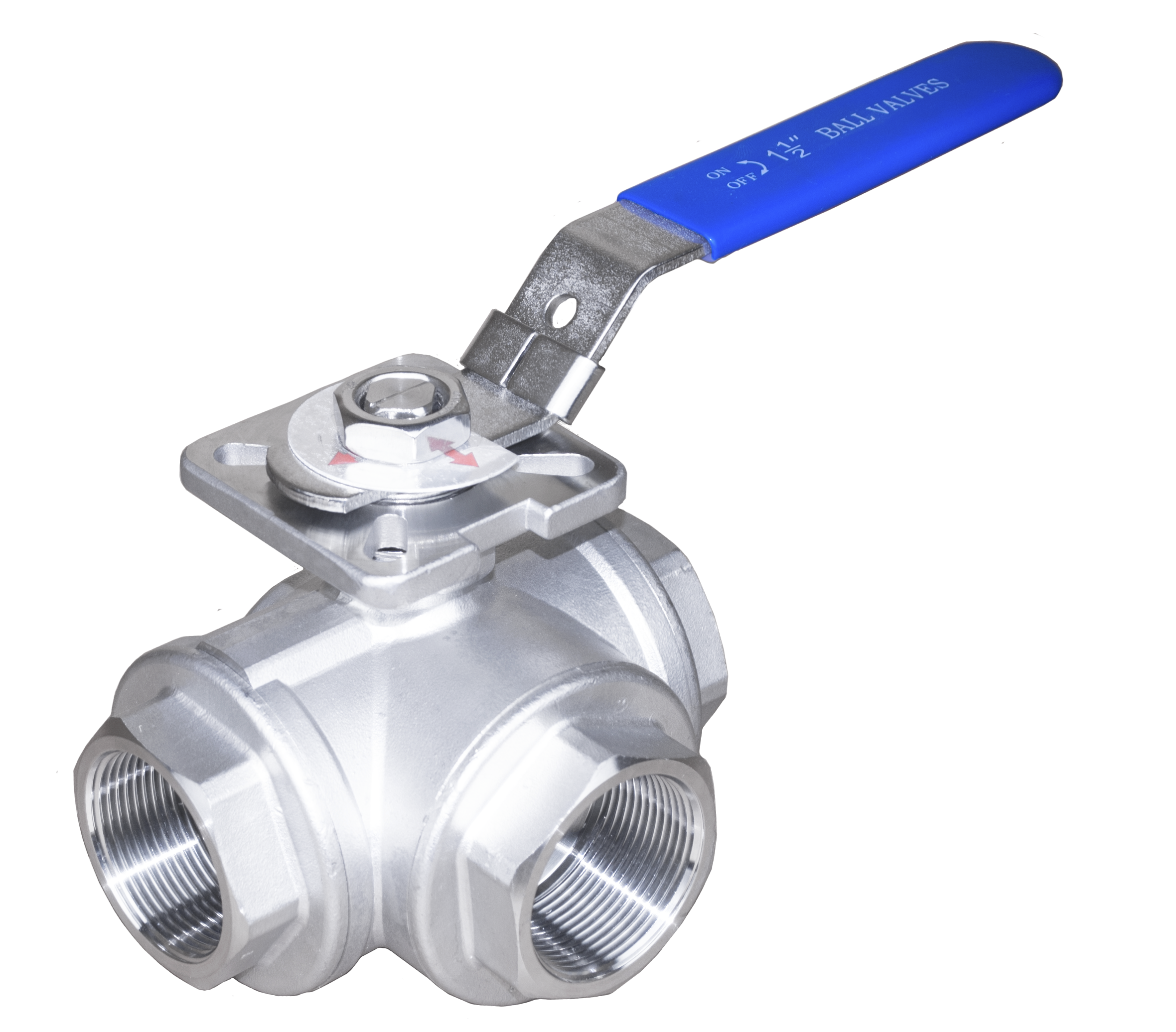

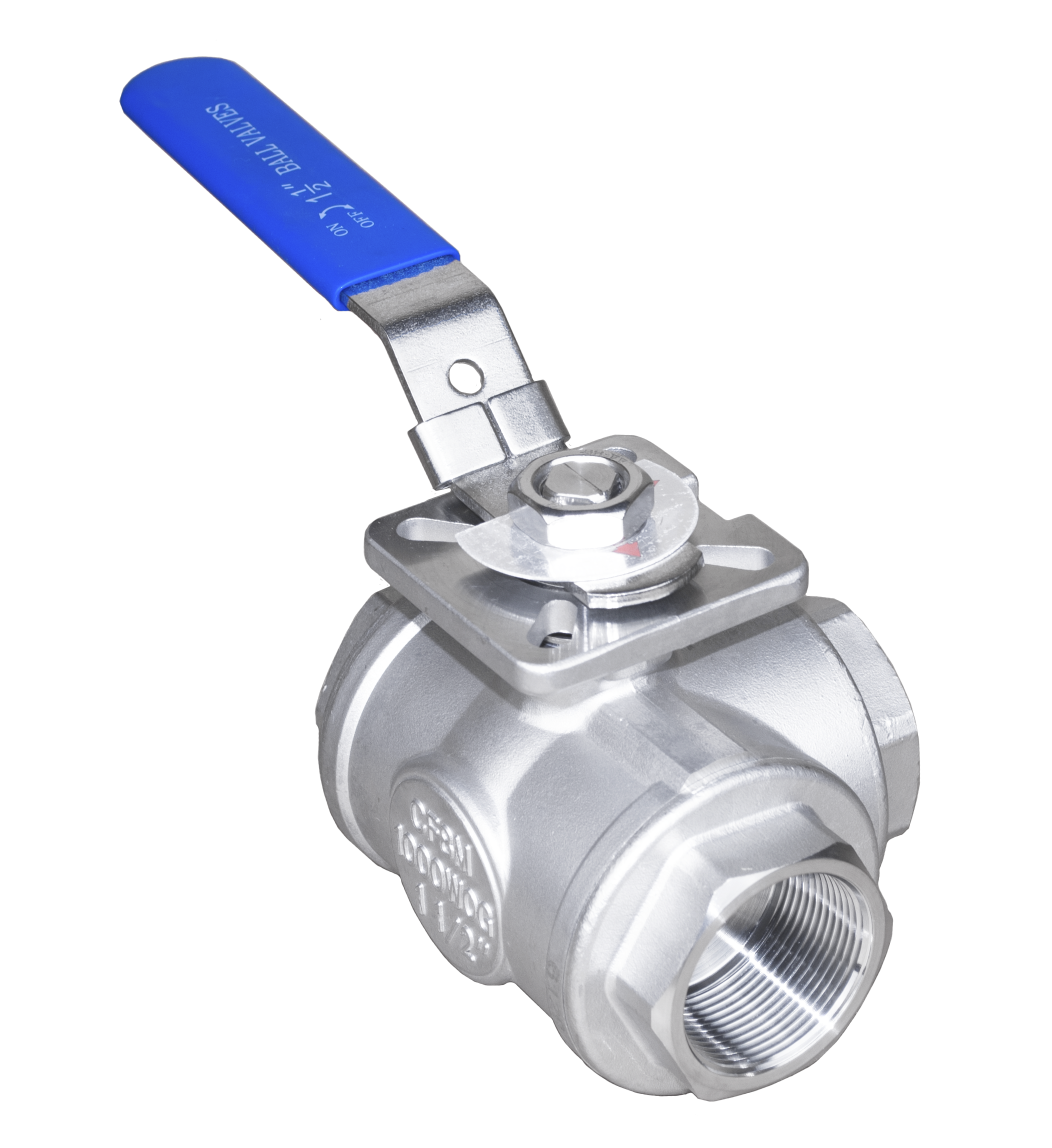

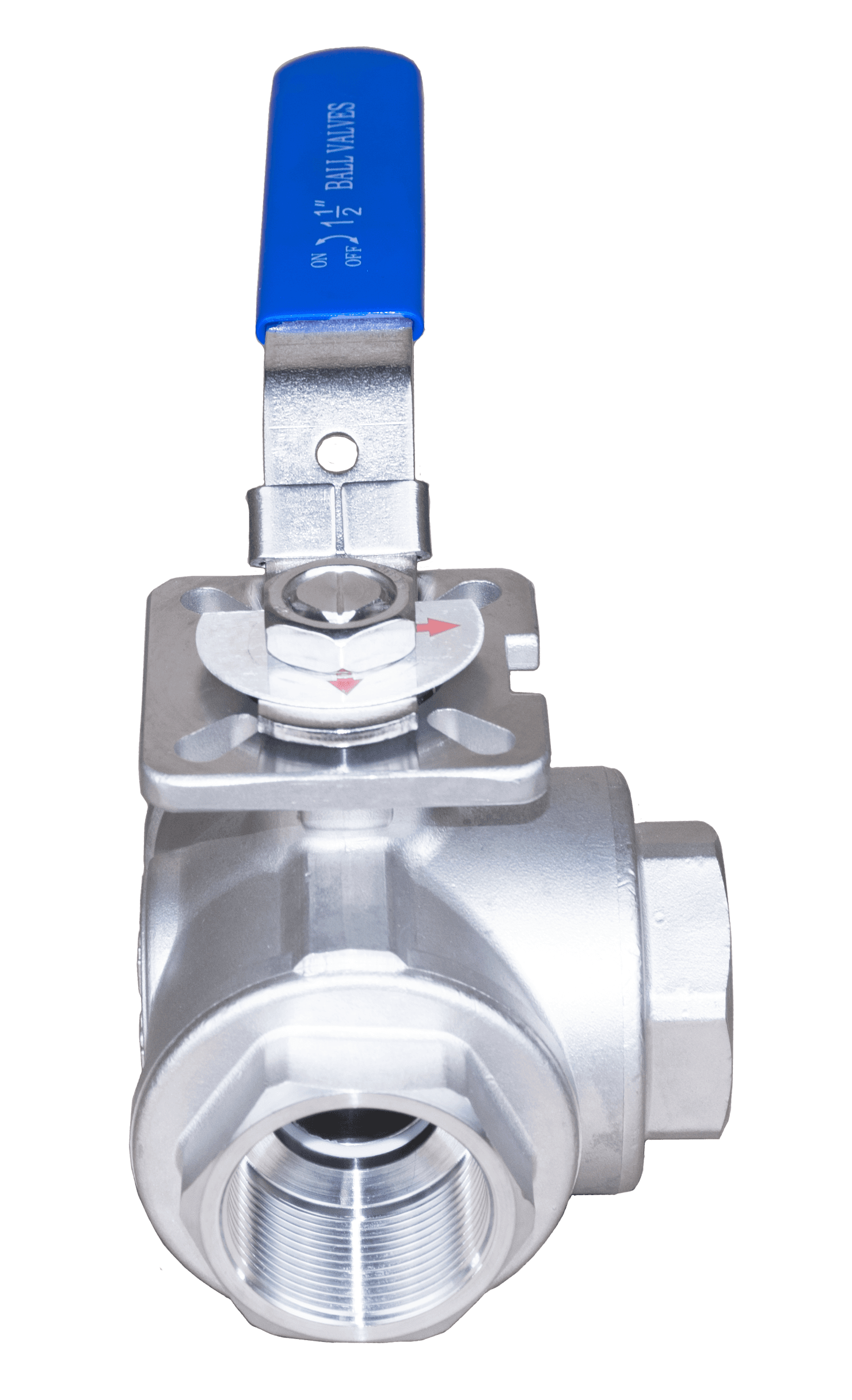

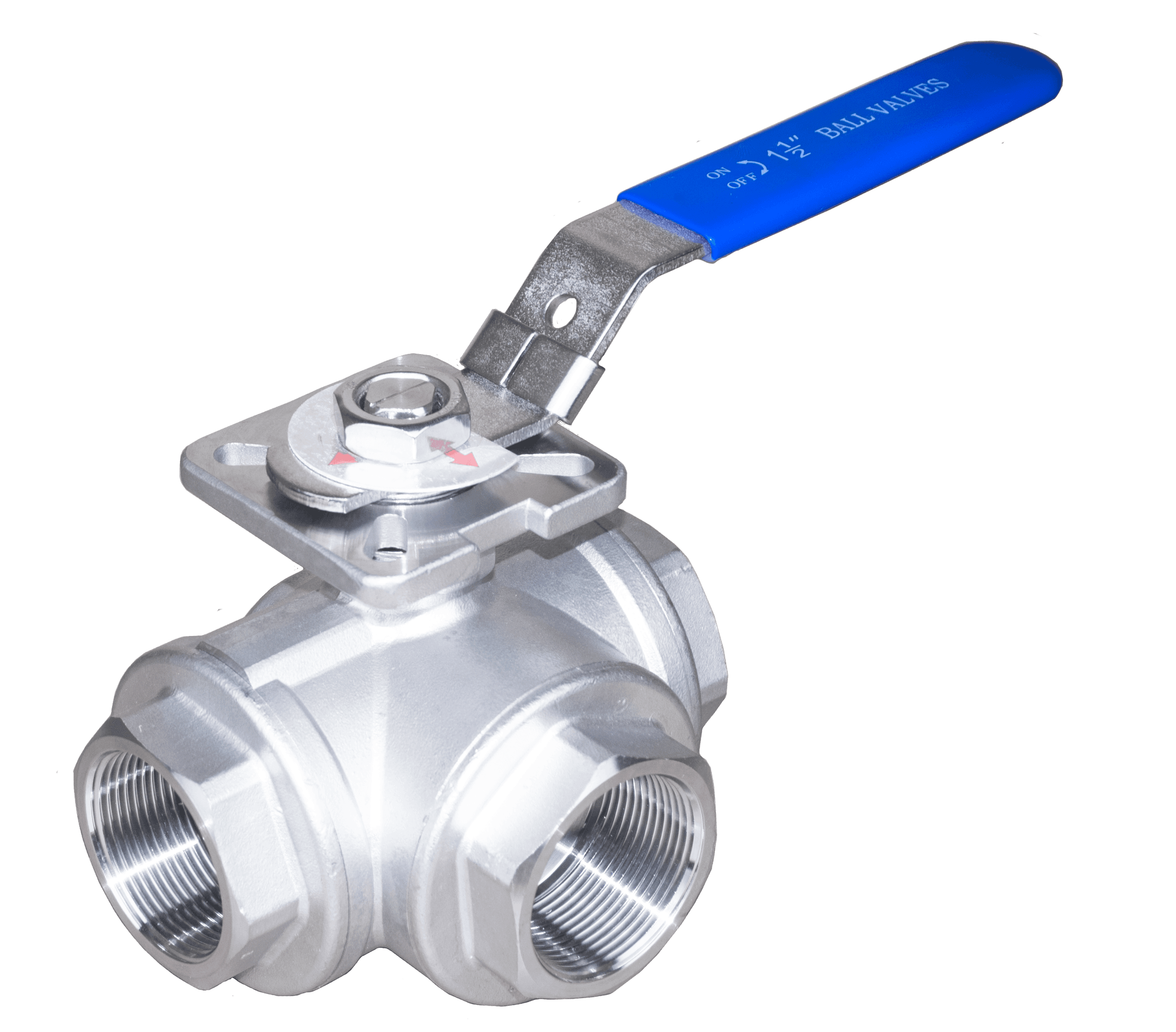

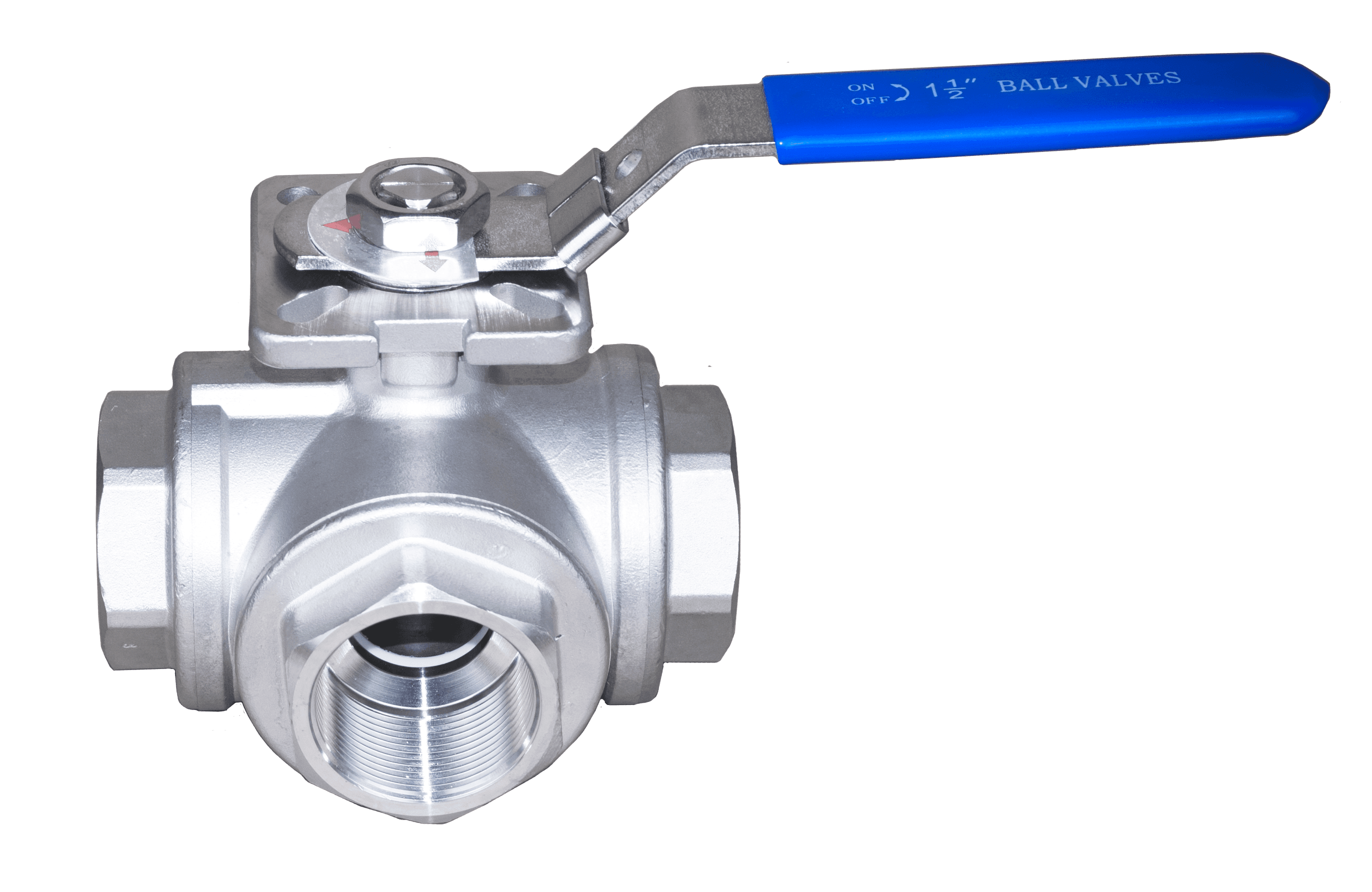

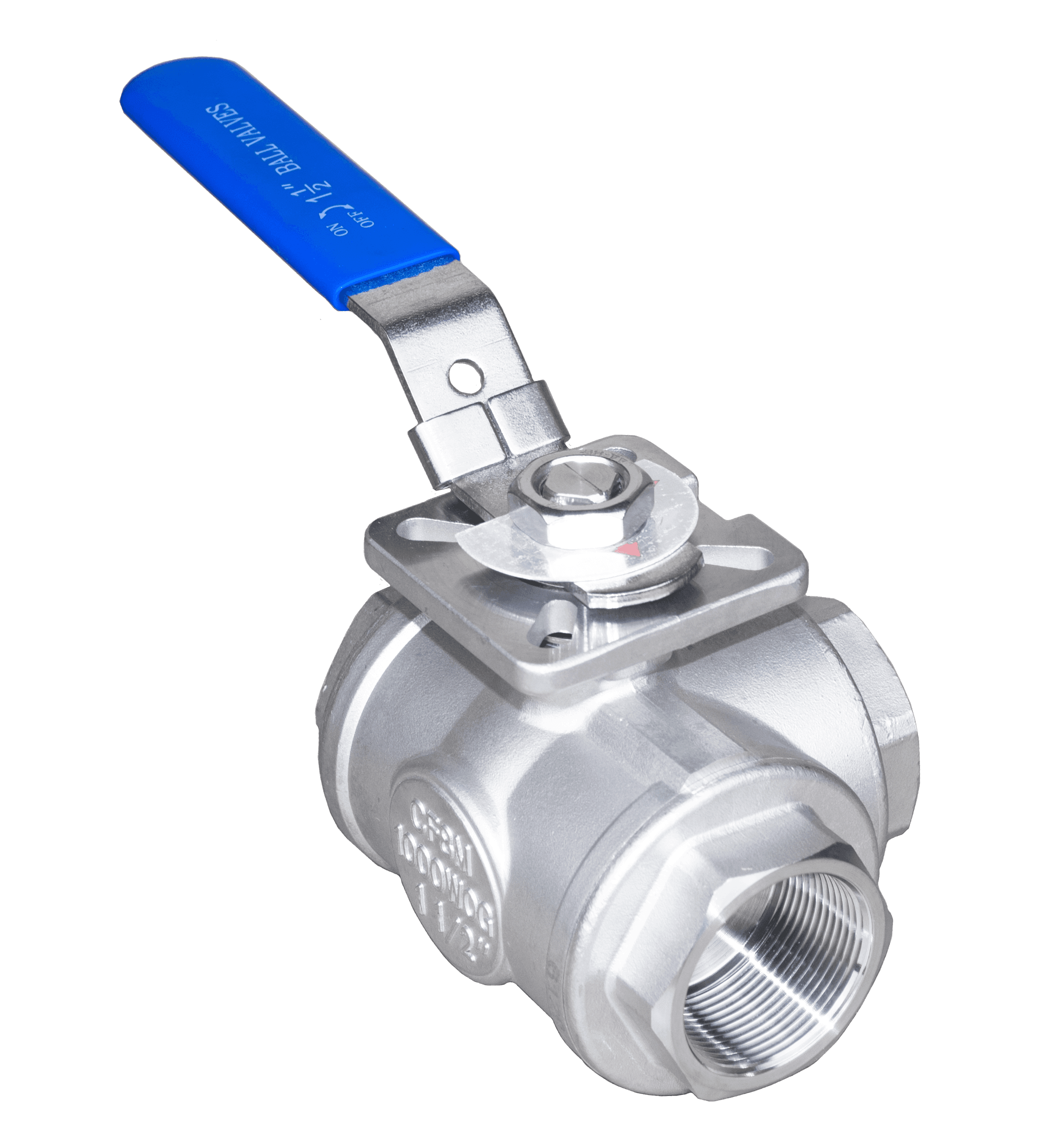

3-Way Threaded Ball Valve
A versatile 3-way ball valve with threaded ends for flow diversion or mixing. Ideal for bypass lines and instrumentation panels up to 1000 PSI.
RECOMMENDED
3-Way Threaded Ball Valve
A versatile 3-way ball valve with threaded ends for flow diversion or mixing. Ideal for bypass lines and instrumentation panels up to 1000 PSI.
A versatile 3-way ball valve with threaded ends for flow diversion or mixing. Ideal for bypass lines and instrumentation panels up to 1000 PSI.

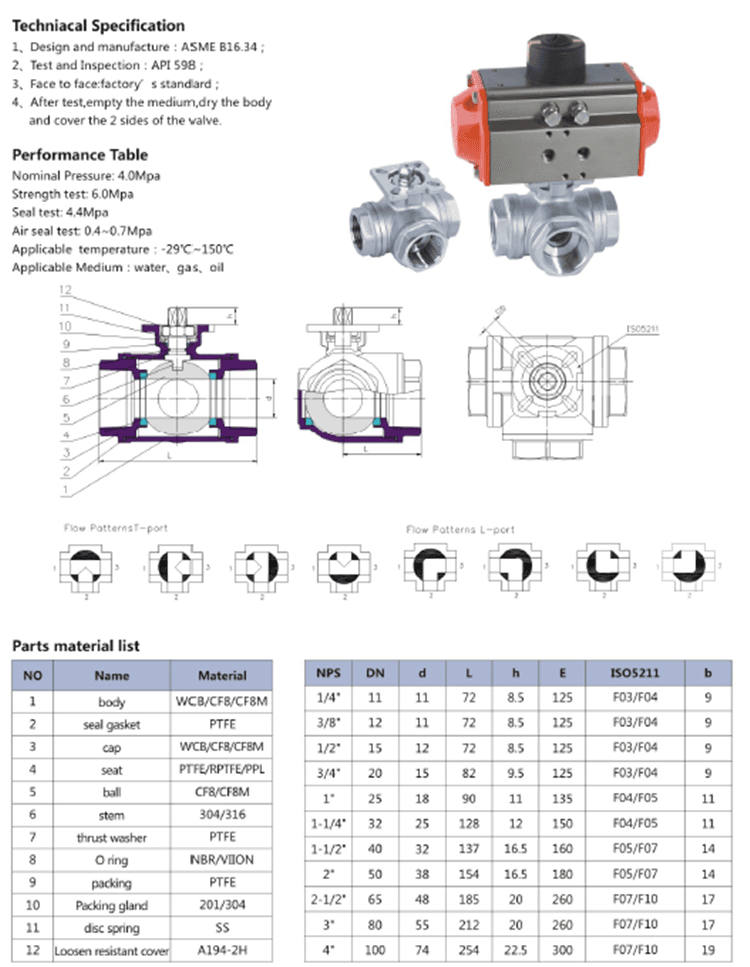

Specifications
- ASME B16.34
- API 598
- NPT/BSP per ISO 7-1
- up to 1000 PSI
- CE/PED optional
Features & Benefits
- L-port configuration: 90° rotation diverts flow between ports
- T-port configuration: 180° rotation mixes or distributes flow
- Threaded ends in NPT or BSP (1/4" to 4") per ISO 7-1
- Blow-out proof stem and PTFE seats for reliable sealing
- Materials available: SS316, brass, and WCB (carbon steel)
Applications
- Flow switching and diversion in piping systems
- Bypass lines for maintenance or control
- Tank filling with selectable source
- Instrumentation panels requiring compact multi-port valves
Features
L-port configuration: 90° rotation diverts flow between ports
T-port configuration: 180° rotation mixes or distributes flow
Threaded ends in NPT or BSP (1/4" to 4") per ISO 7-1
Blow-out proof stem and PTFE seats for reliable sealing
Materials available: SS316, brass, and WCB (carbon steel)
