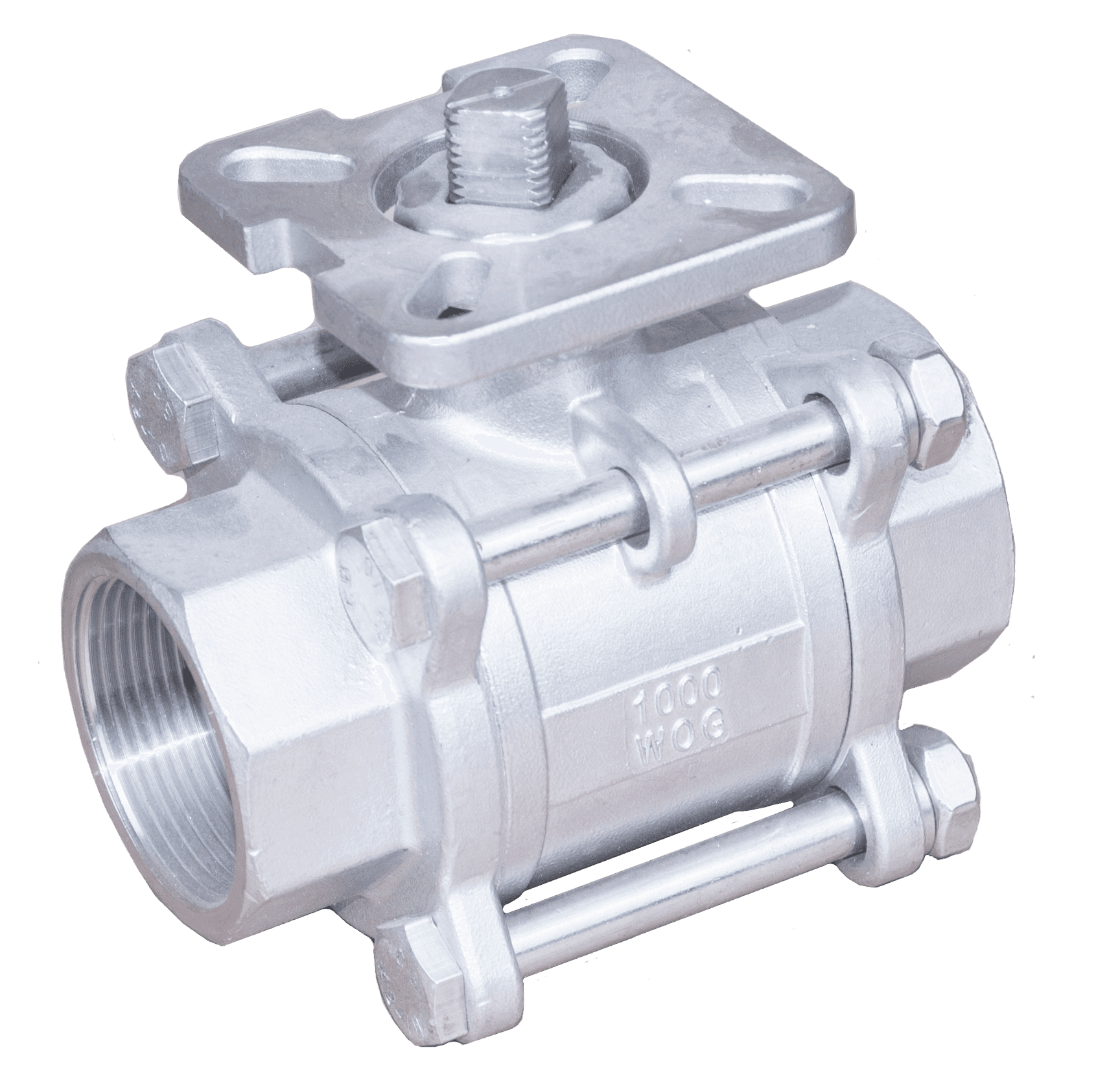

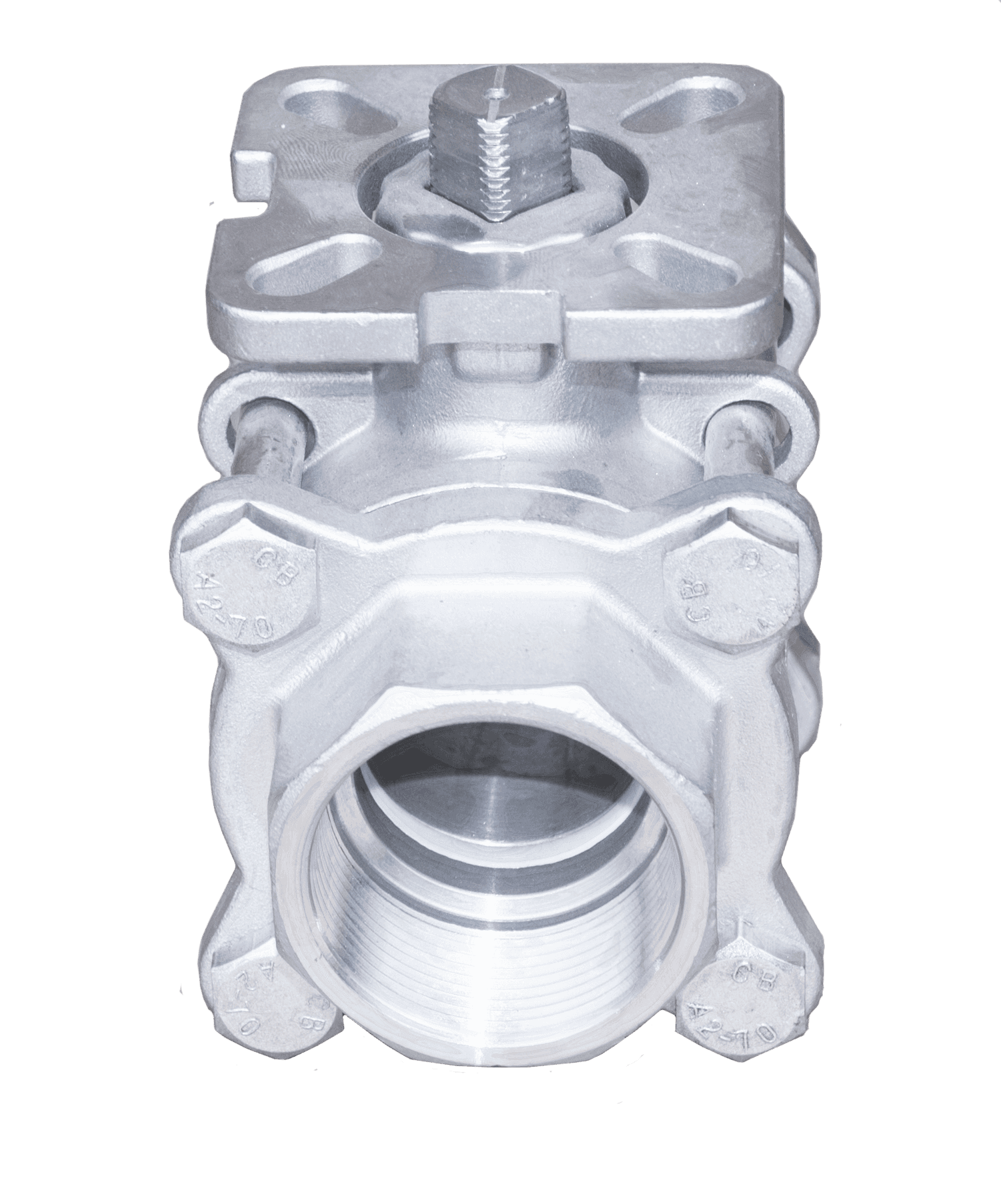

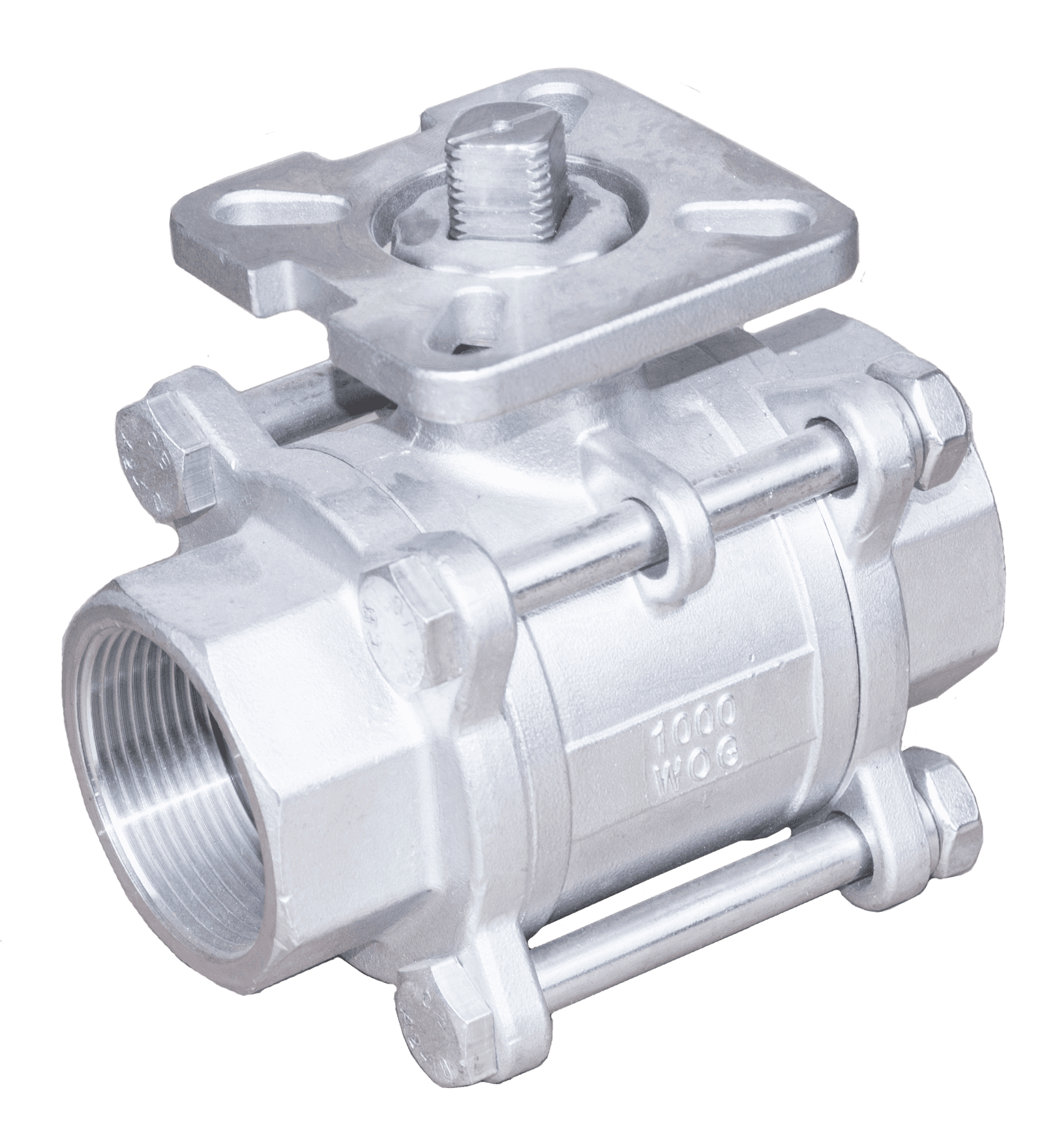

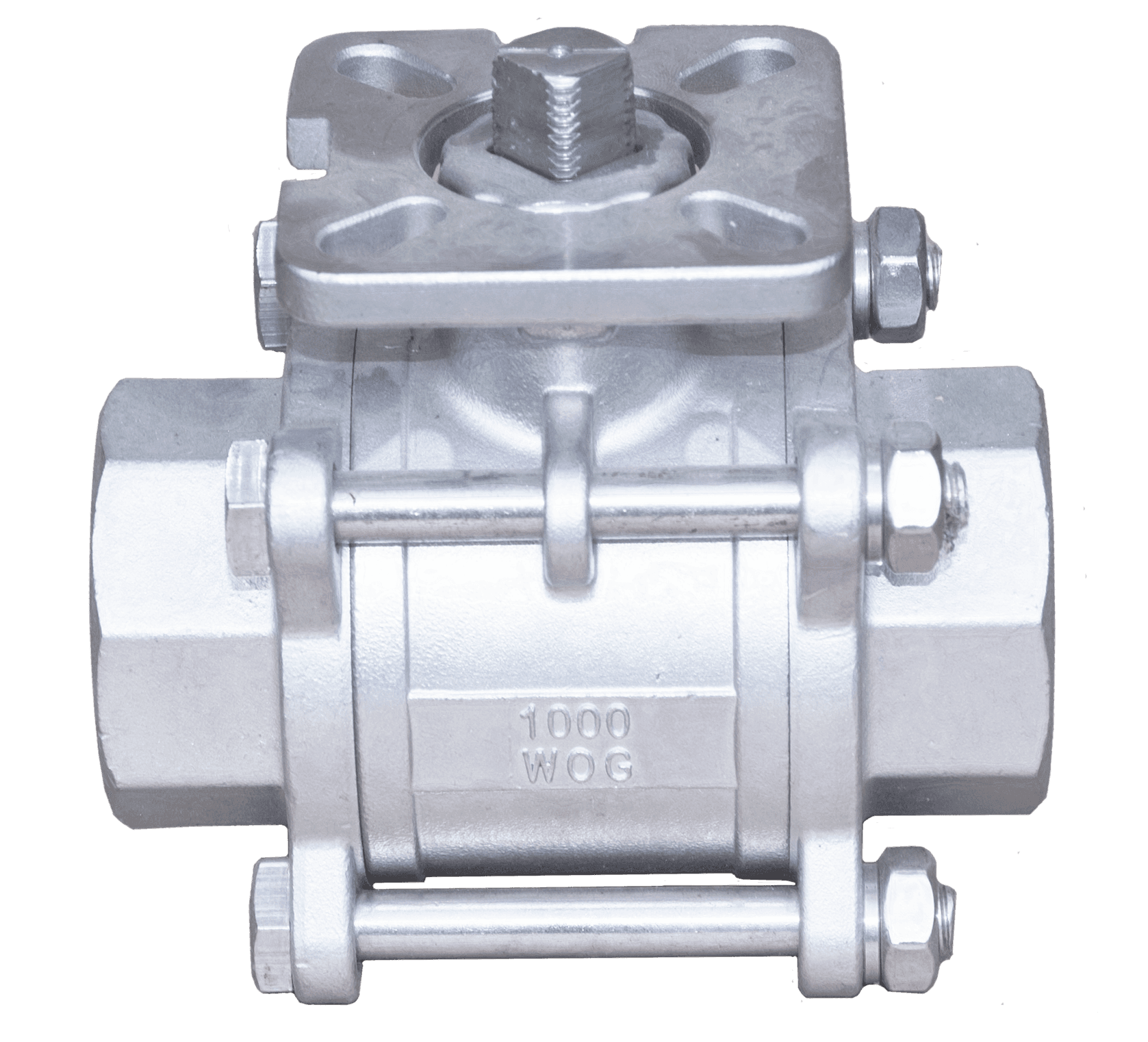

3PC Threaded High Mounting Pad Ball Valve
Three-piece threaded ball valve with ISO 5211 mounting pad for direct actuator integration. Suitable for chemical, pharmaceutical, and industrial systems under 1000 PSI.
RECOMMENDED
3PC Threaded High Mounting Pad Ball Valve
Three-piece threaded ball valve with ISO 5211 mounting pad for direct actuator integration. Suitable for chemical, pharmaceutical, and industrial systems under 1000 PSI.
Three-piece threaded ball valve with ISO 5211 mounting pad for direct actuator integration. Suitable for chemical, pharmaceutical, and industrial systems under 1000 PSI.

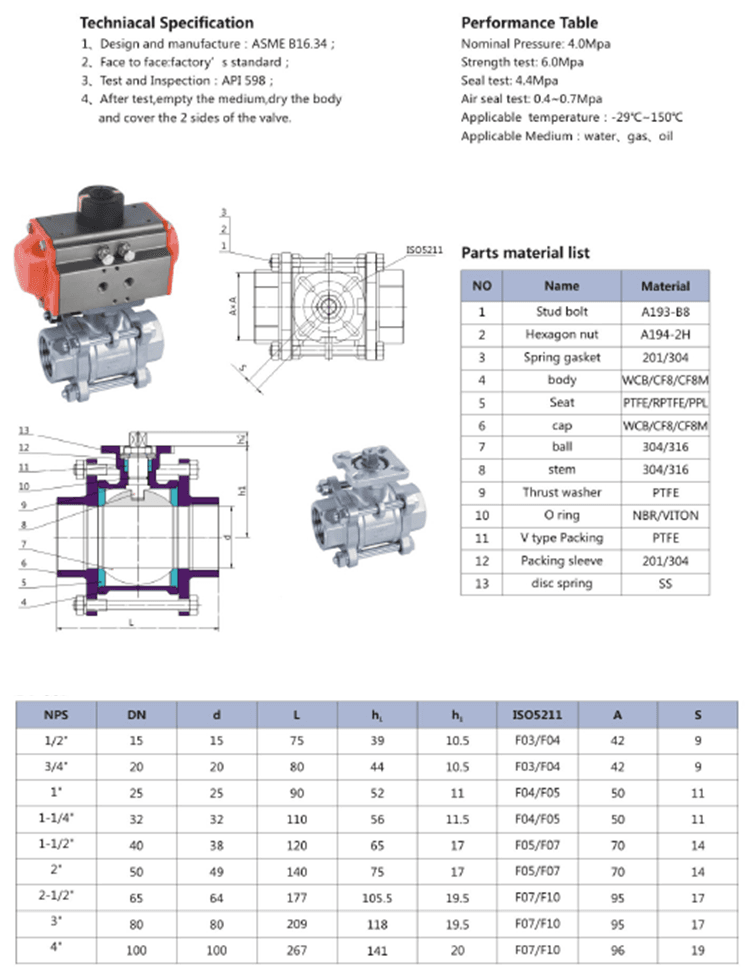

Specifications
| Design | ASME B16.34 / API 608-1 |
| Thread | ASME B1.20.1 (NPT), ISO 7-1 (BSP), DIN 259/2999-1 |
| Testing | API 598 / ISO 5208-1 |
| Mounting pad | ISO 5211-1 |
| Pressure | 1000WOG / 1000PSI |
| Temperature | -20°C to +180°C (PTFE), higher with PEEK/metal seats-1 |
| Certifications | CE, PED, ATEX, NACE MR0175 (optional) |
Features & Benefits
- Three-piece bolted body design allows inline access to ball, seats, and stem without removing piping
- Integral ISO 5211 high mounting pad enables direct actuator mounting for automated control
- Full port design minimizes pressure drop and allows unrestricted flow
- Blow-out proof stem and optional anti-static device enhance safety in hazardous environments
- Threaded ends available in NPT, BSP, BSPT, and DIN sizes from 1/4" to 4"
Applications
- High-purity and sanitary processes in pharmaceutical and food & beverage industries
- Corrosive chemical lines and aggressive fluid handling
- Oil, gas, steam, and water treatment systems
- Automatic control systems requiring reliable on/off or modulating service
