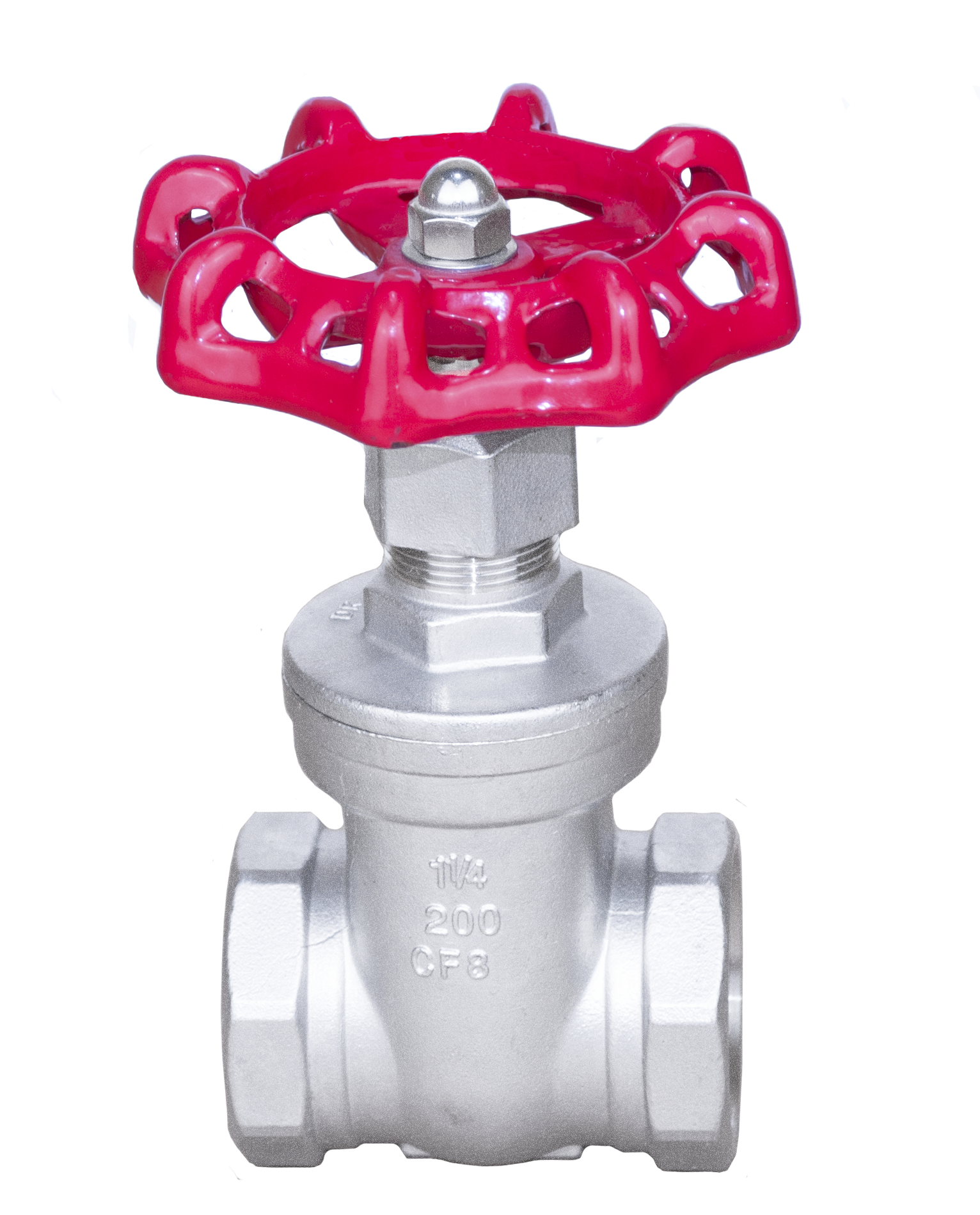

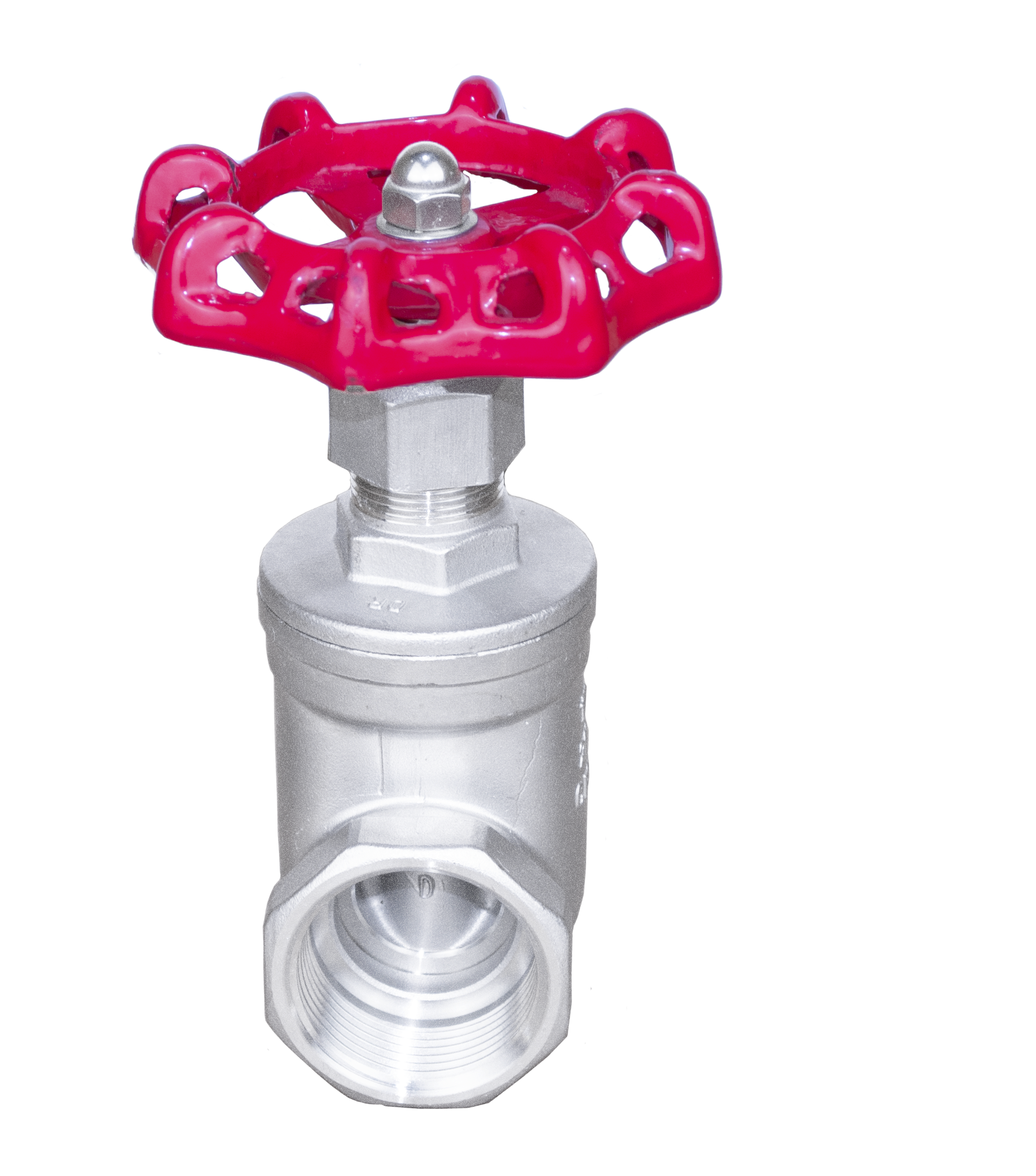

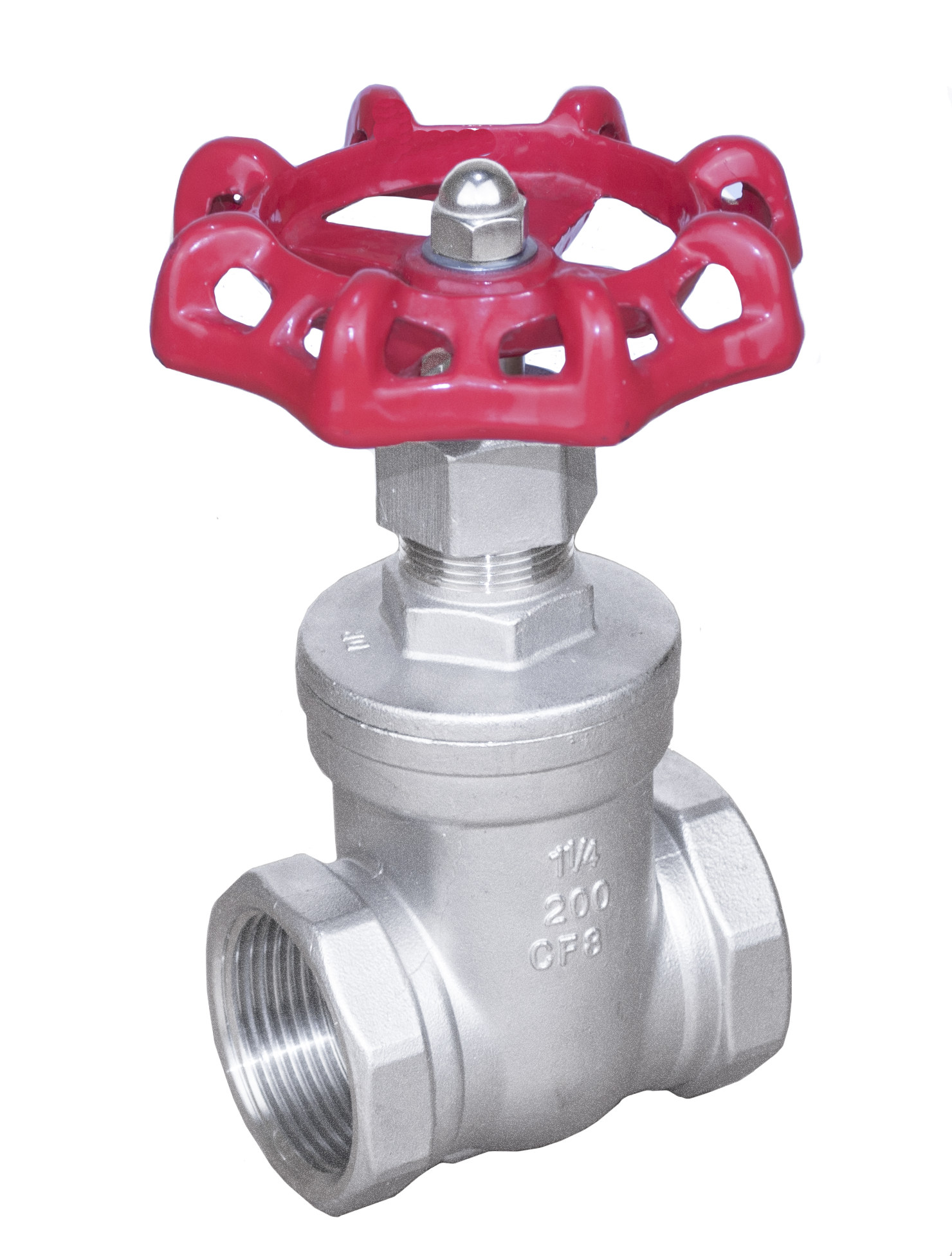

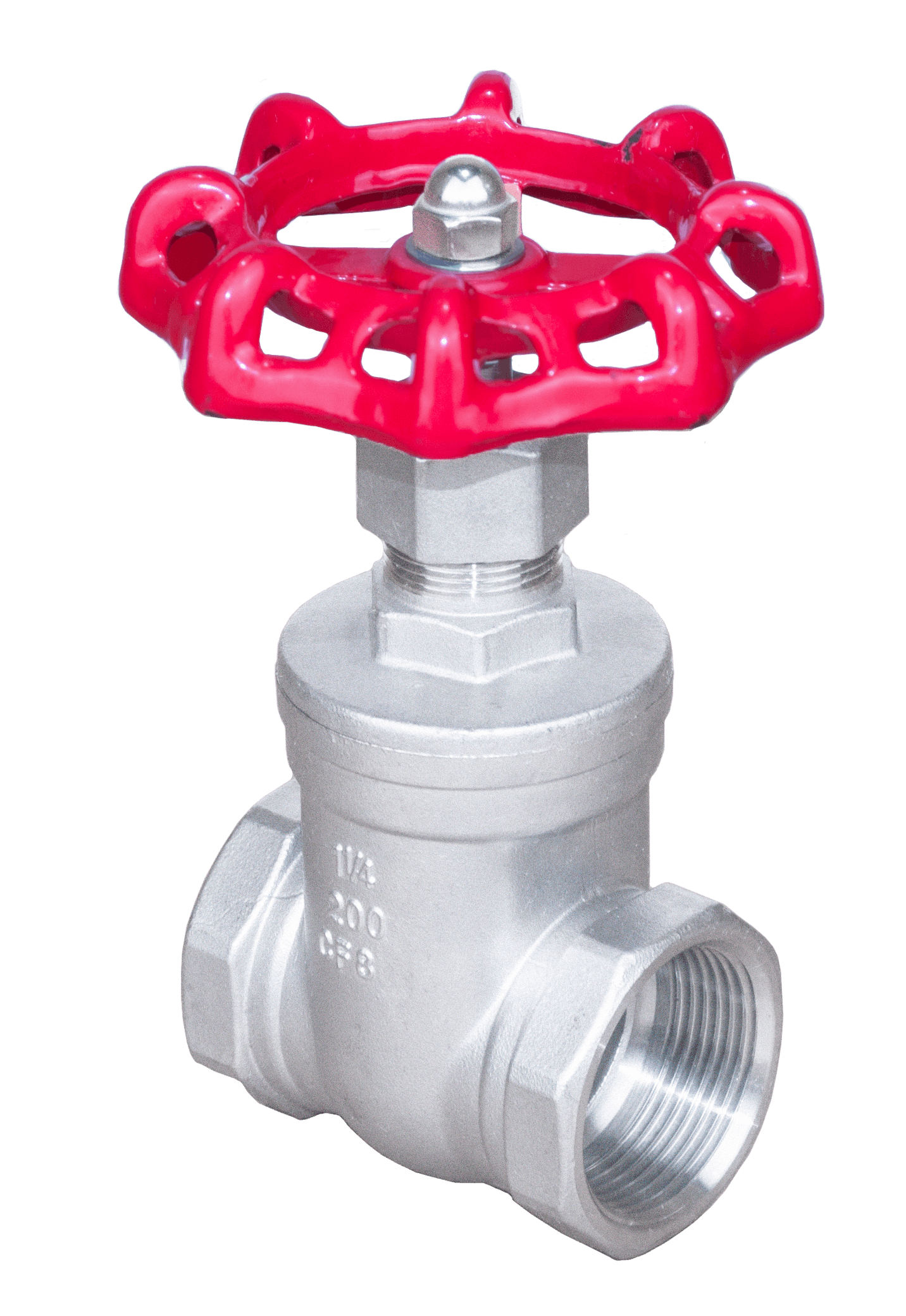

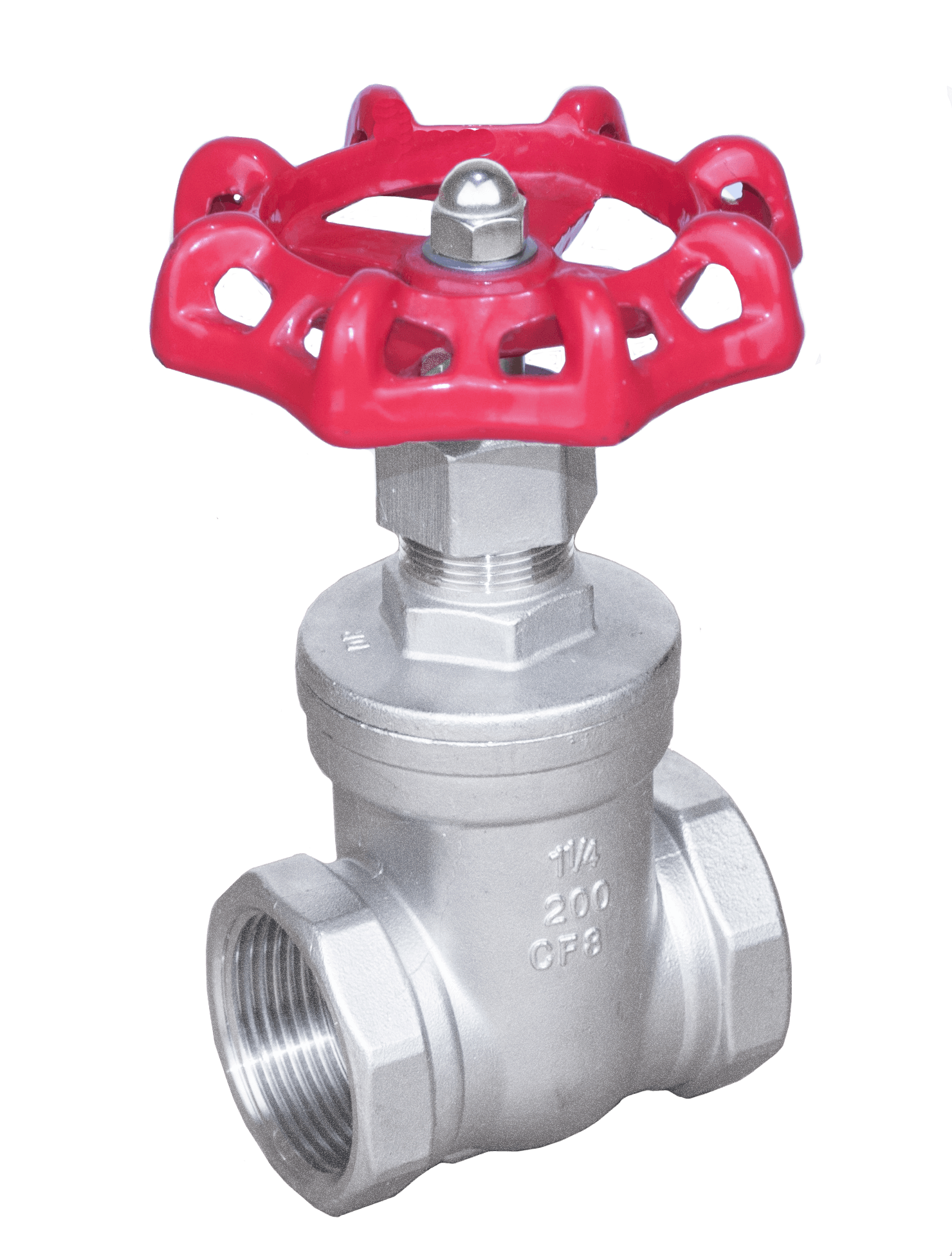

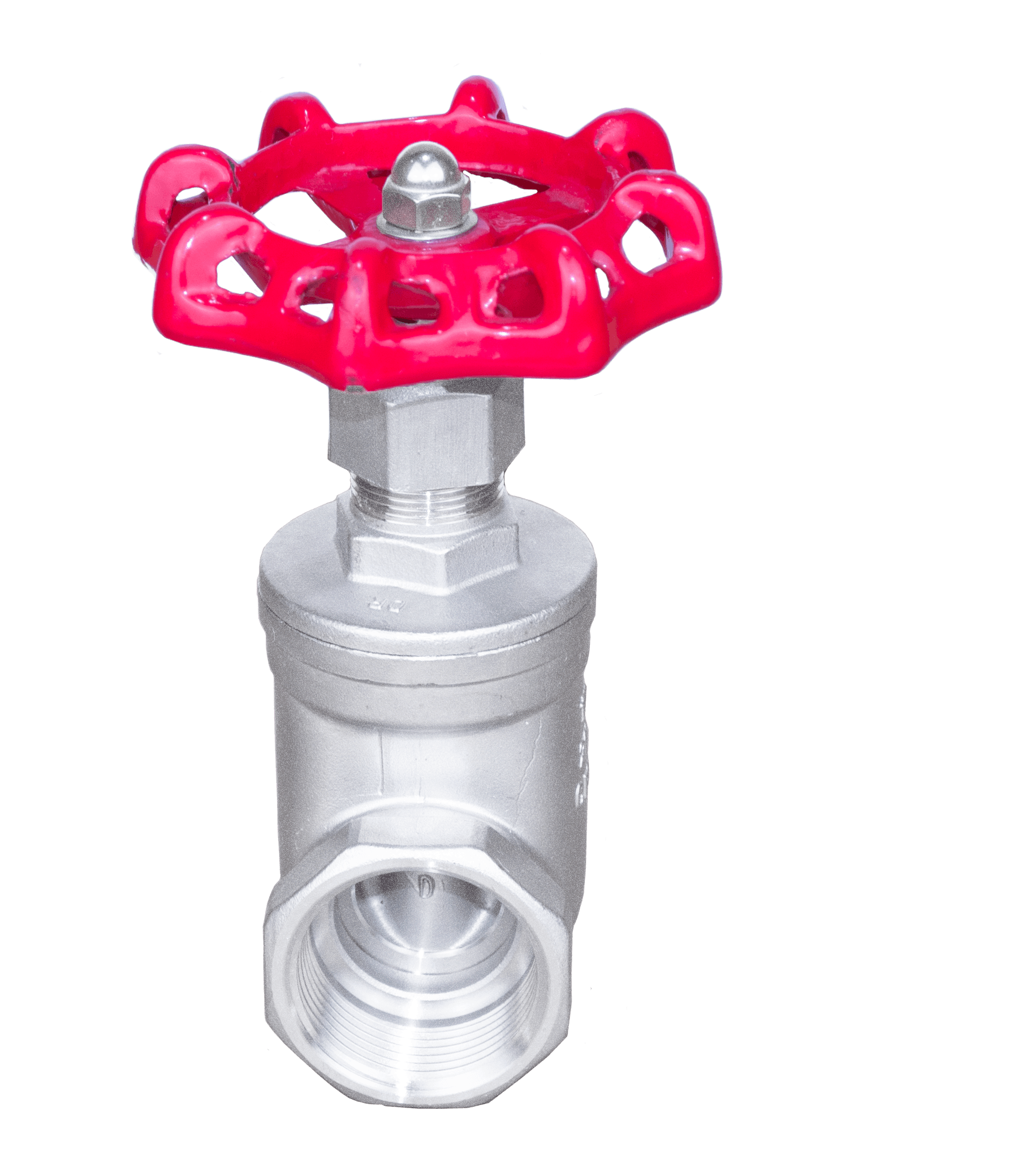

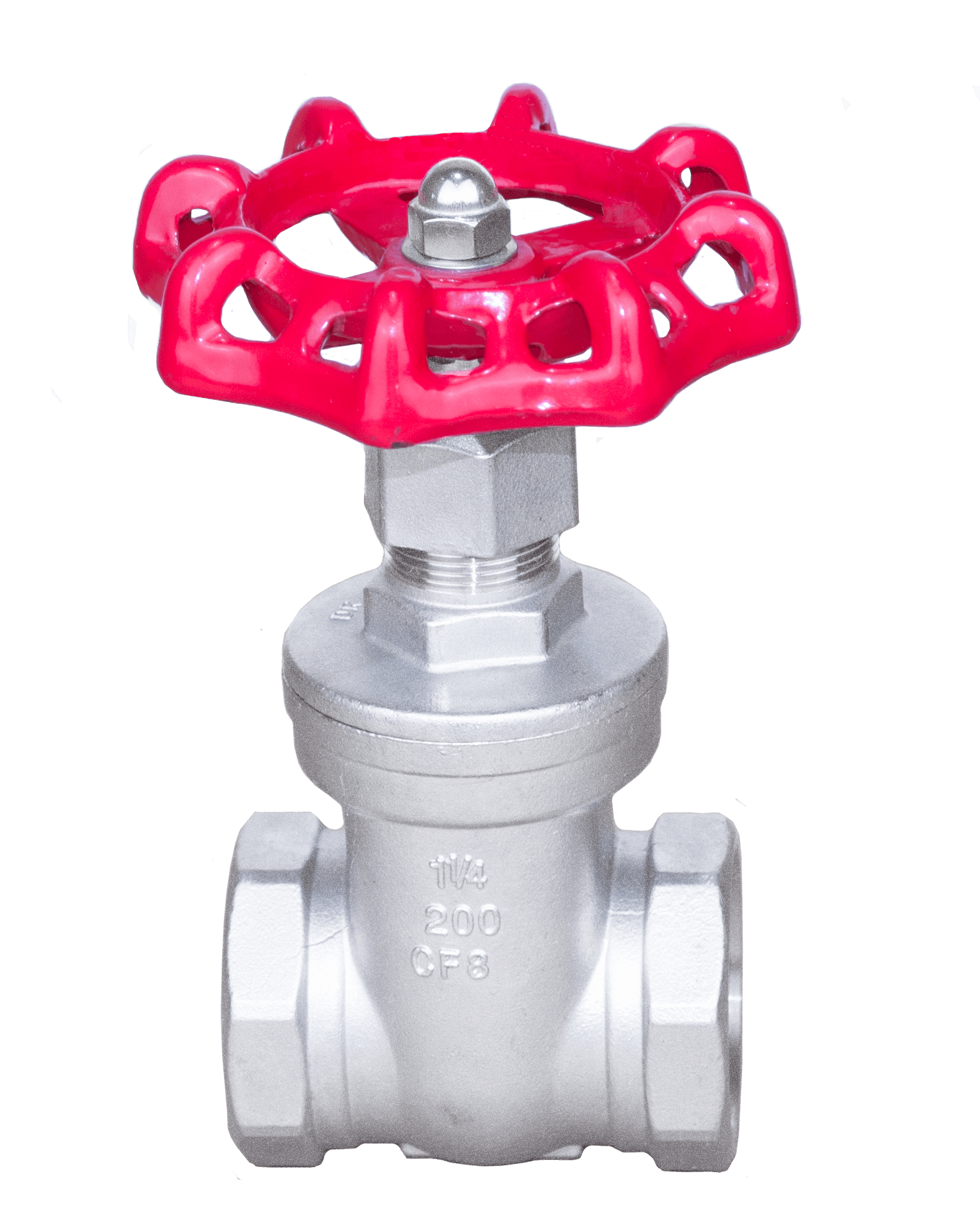

Stainless Steel Threaded Gate Valve
Durable stainless steel threaded gate valve for on/off service in water, oil, and chemical lines. Available in Class 150, 300, or 2000WOG.
RECOMMENDED
Stainless Steel Threaded Gate Valve
Durable stainless steel threaded gate valve for on/off service in water, oil, and chemical lines. Available in Class 150, 300, or 2000WOG.
Durable stainless steel threaded gate valve for on/off service in water, oil, and chemical lines. Available in Class 150, 300, or 2000WOG.

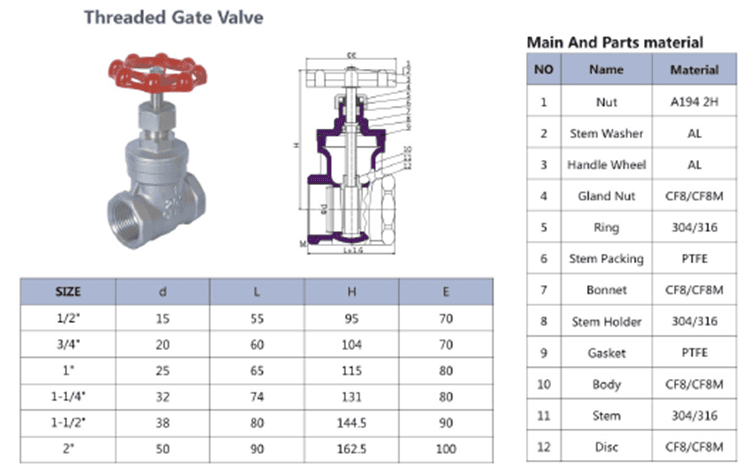

Specifications
| Design | ASME B16.34 / API 600 (applicable) |
| Thread | ASME B1.20.1 (NPT) or ISO 7-1 (BSP) |
| Face-to-face | Manufacturer standard |
| Testing | API 598 / ISO 5208 |
| Pressure rating | Class 150 / Class 300 / 2000WOG (optional) |
| Temperature range | -20°C to 200°C (PTFE) / up to 400°C (graphite packing) |
| Certifications | CE, PED, NACE MR0175 (optional) |
Features & Benefits
- Non-rising stem (NRS) saves vertical space in tight installations
- Full bore design minimizes pressure drop across the valve
- Wedge gate (solid or flexible) ensures tight shut-off
- Threaded ends in NPT, BSP, or BSPT (1/2" to 2") for easy connection
- PTFE or graphite packing for temperature ranges from -20°C up to 400°C
Applications
- Water and wastewater lines
- Oil and gas distribution
- Chemical and petrochemical processing
- HVAC and fire protection systems
Features
Non-rising stem (NRS) saves vertical space in tight installations
Full bore design minimizes pressure drop across the valve
Wedge gate (solid or flexible) ensures tight shut-off
Threaded ends in NPT, BSP, or BSPT (1/2" to 2") for easy connection
PTFE or graphite packing for temperature ranges from -20°C up to 400°C
