Threaded Valve

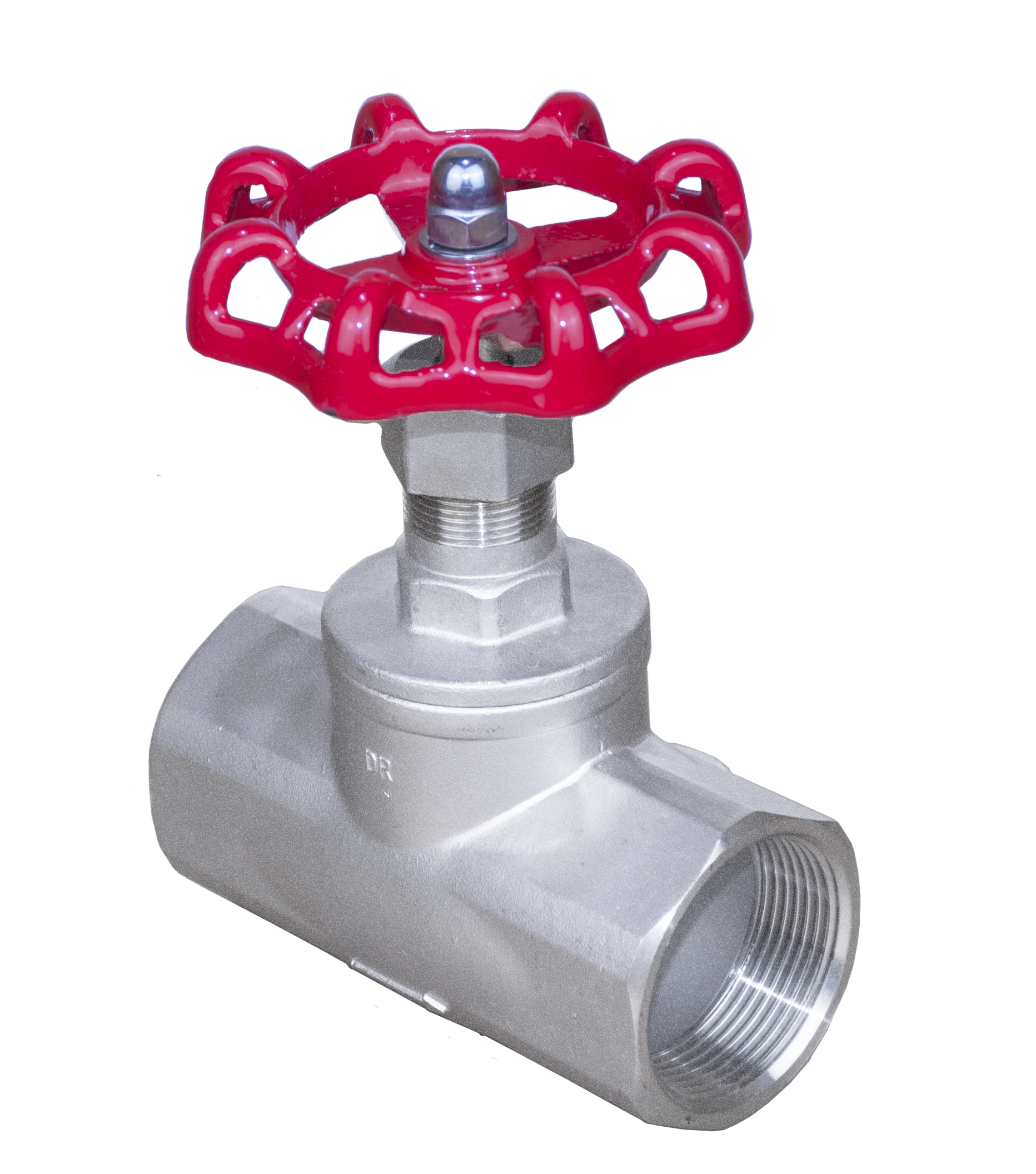

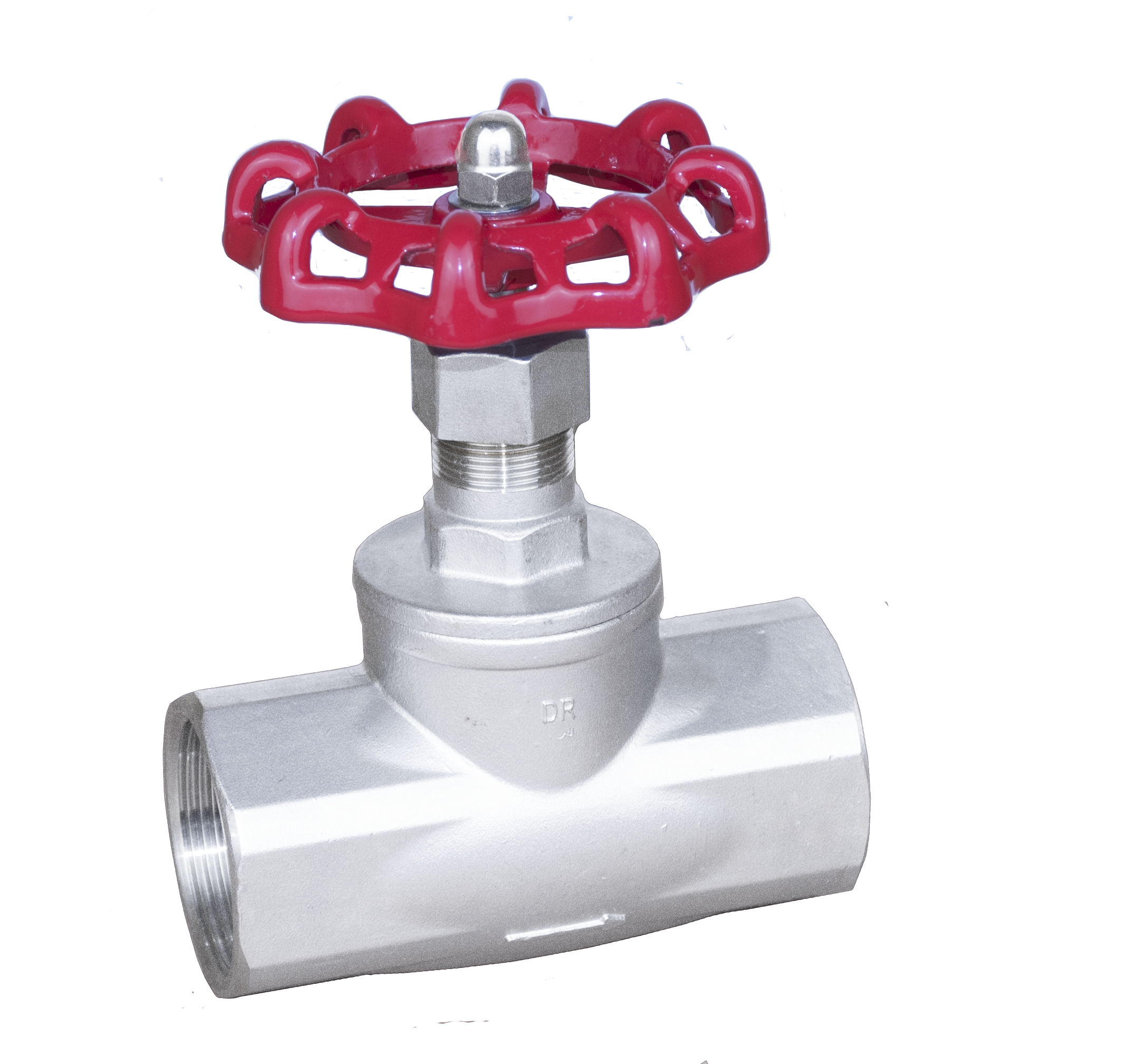

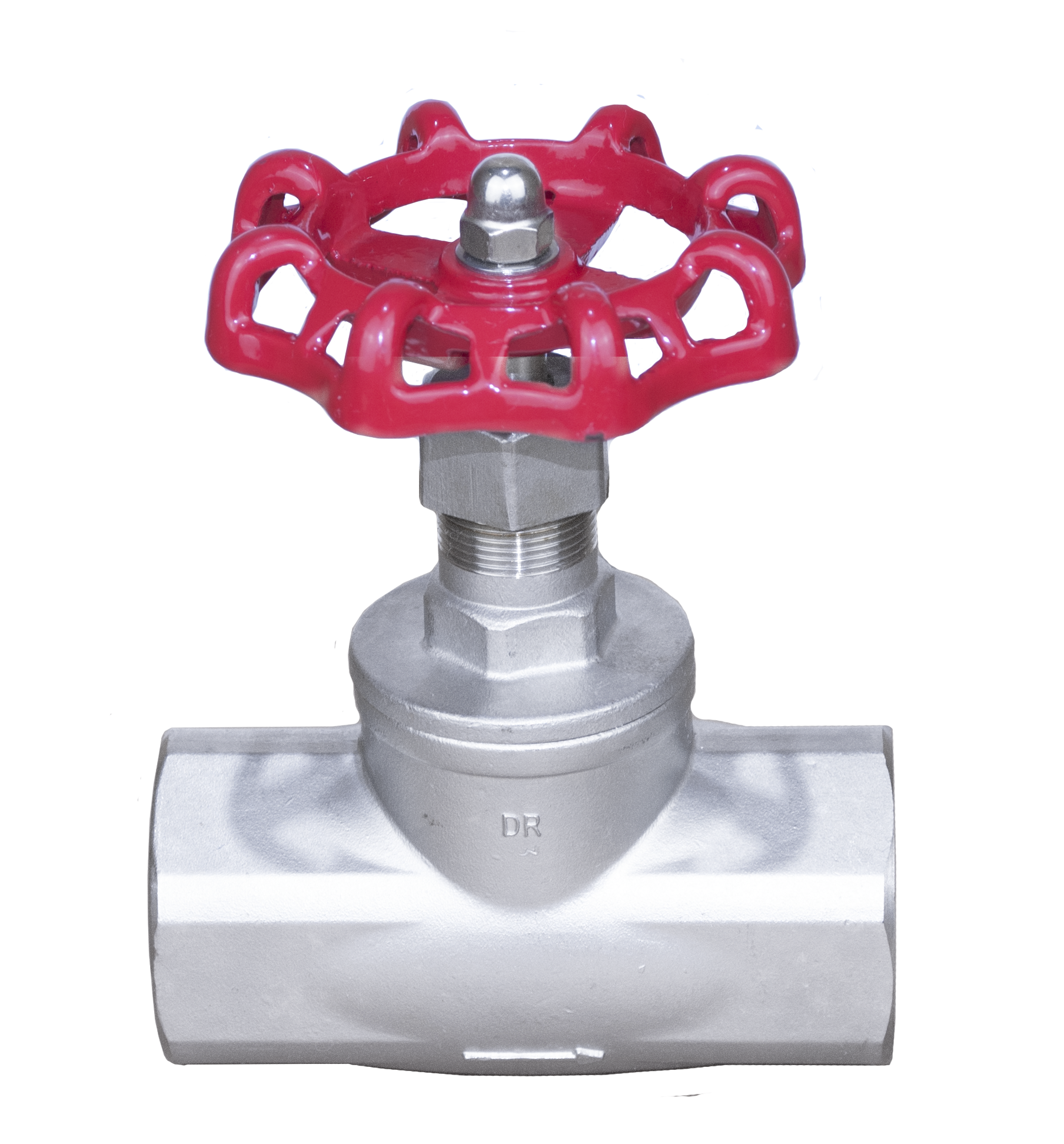

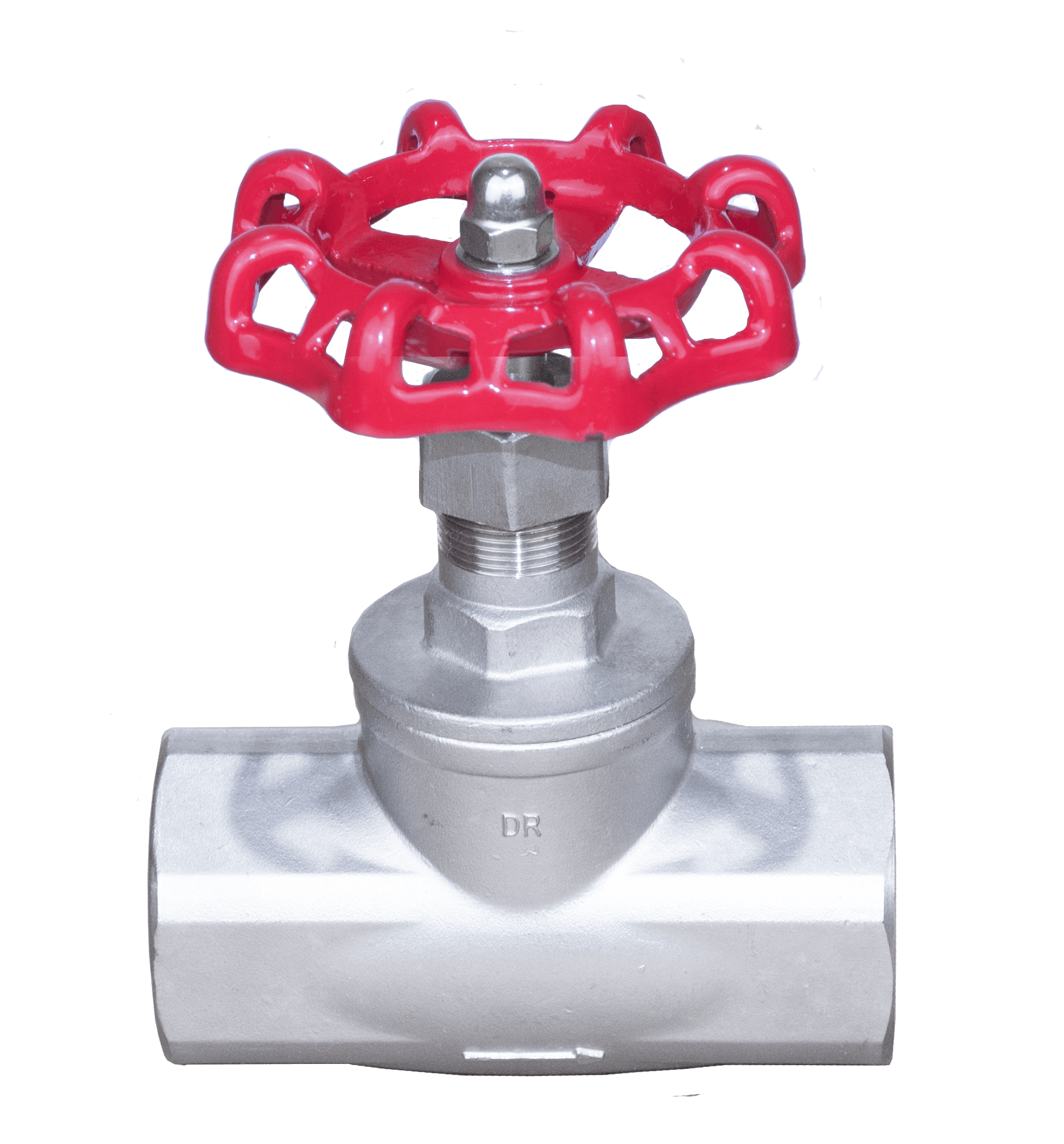

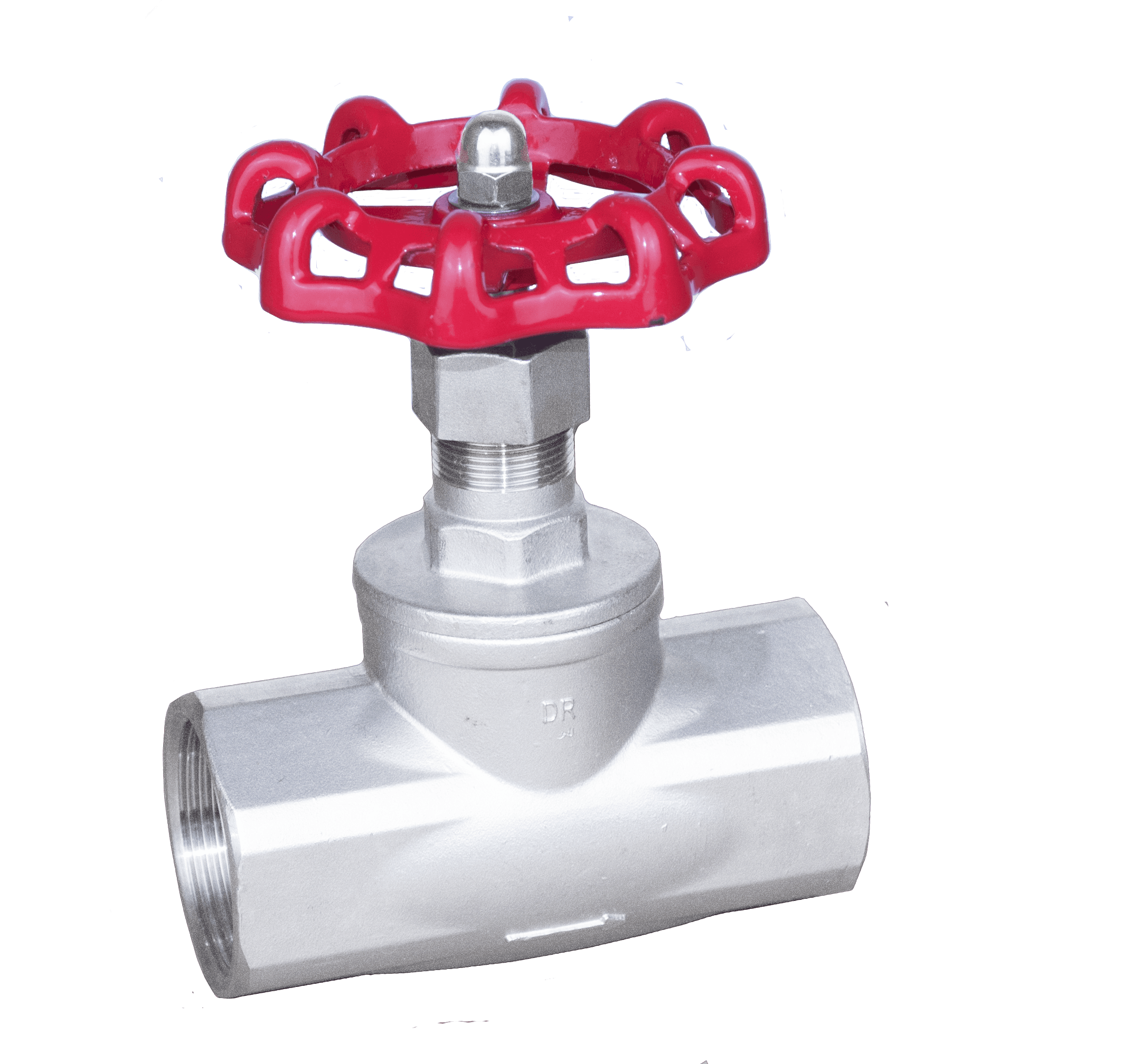

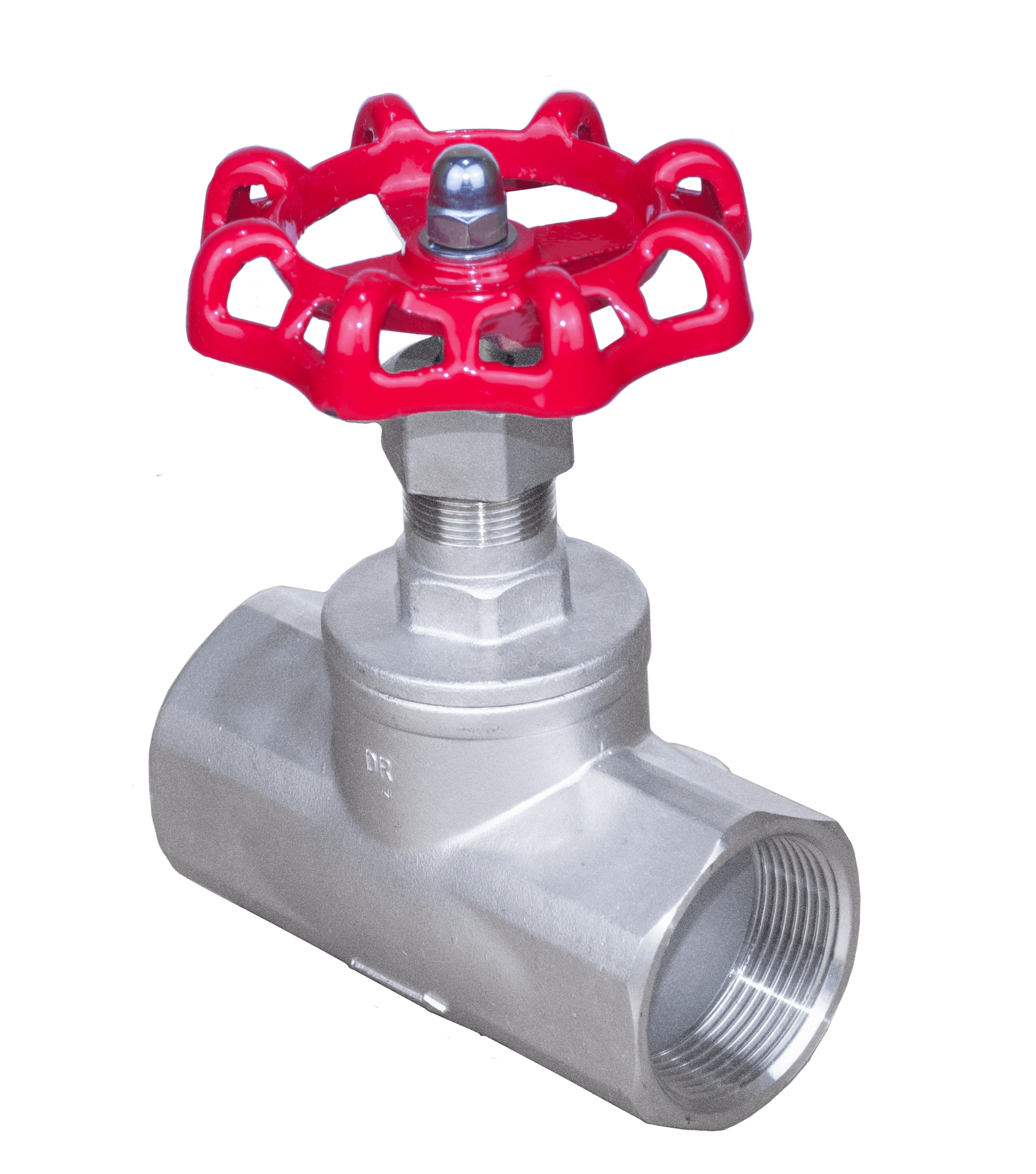

Stainless Steel Threaded Globe Valve
不锈钢螺纹截止阀
Overview Stainless steel globe valve with threaded ends. Designed for precise throttling and flow regulation in compact piping systems. Non-rising stem or rising stem option.
Product Details
Applications
01 Water and wastewater treatment
02 Chemical and petrochemical dosing lines
03 Oil and gas distribution
04 HVAC and steam service
05 Marine and industrial process control
Features
01 Threaded ends: NPT, BSP, or BSPT (1/2" to 2")
02 Non-rising stem (NRS) – saves vertical space
03 Renewable PTFE or metal seat
04 Bolted bonnet with PTFE or graphite packing
05 Materials: CF8M (SS316), CF8 (SS304), or CF3M (SS316L)
06 Optional rising stem (OS&Y) for visual position indication
Advantages
01 Excellent flow throttling and regulation
02 Good shut-off capability (bubble-tight with PTFE seat)
03 Corrosion-resistant – ideal for aggressive and sanitary media
04 Easy installation – no welding or flanges
05 Compact design – fits tight spaces
Standards
01 Design: ASME B16.34 / BS 1873 (applicable)
02 Thread: ASME B1.20.1 (NPT) or ISO 7-1 (BSP)
03 Face-to-face: Manufacturer standard
04 Testing: API 598 / ISO 5208
05 Pressure rating: Class 150 / Class 300 / 1000WOG
06 Temperature range: -20°C to 200°C (PTFE) / up to 400°C (graphite packing)
07 Certifications: CE, PED (optional)
