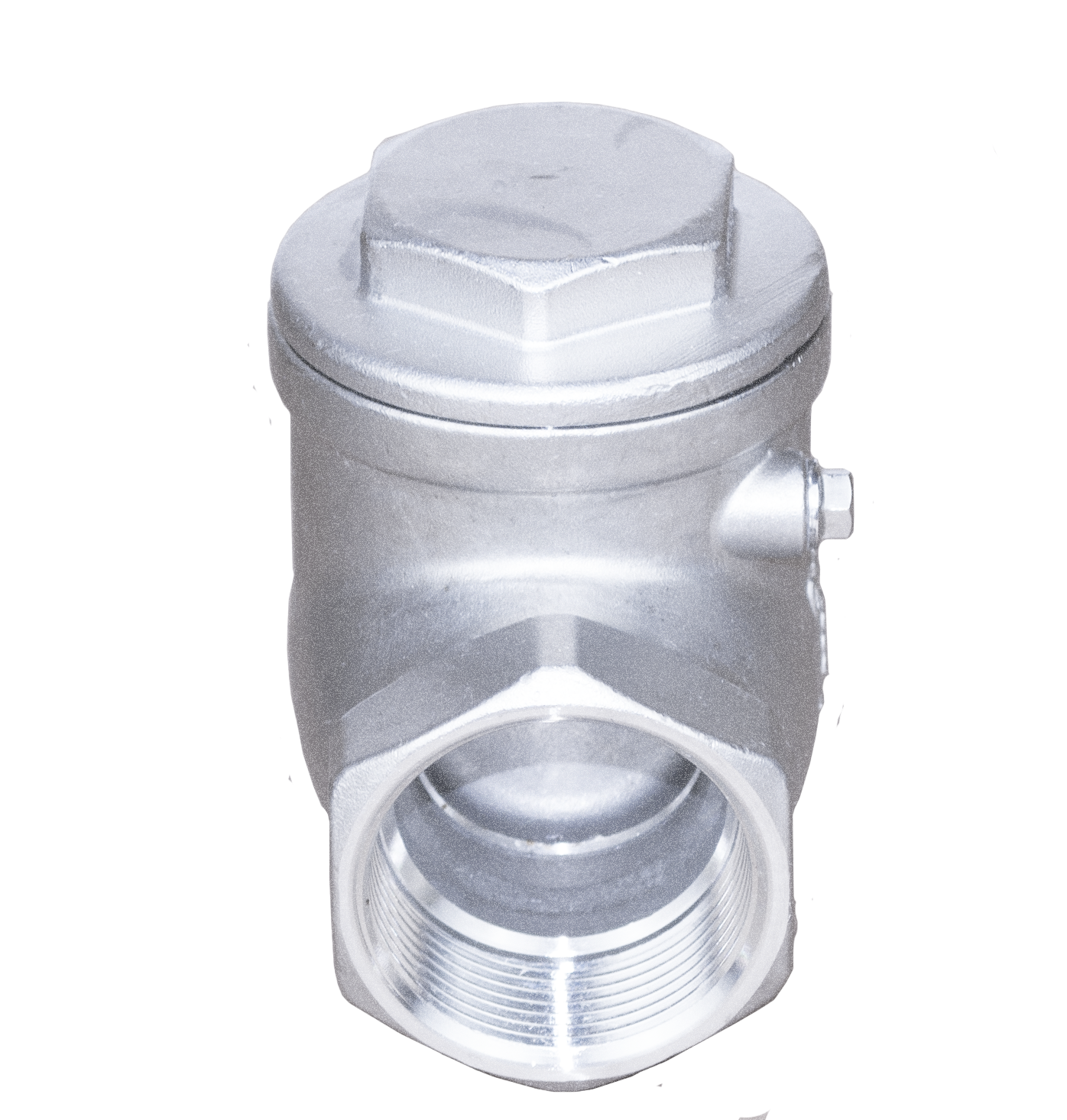

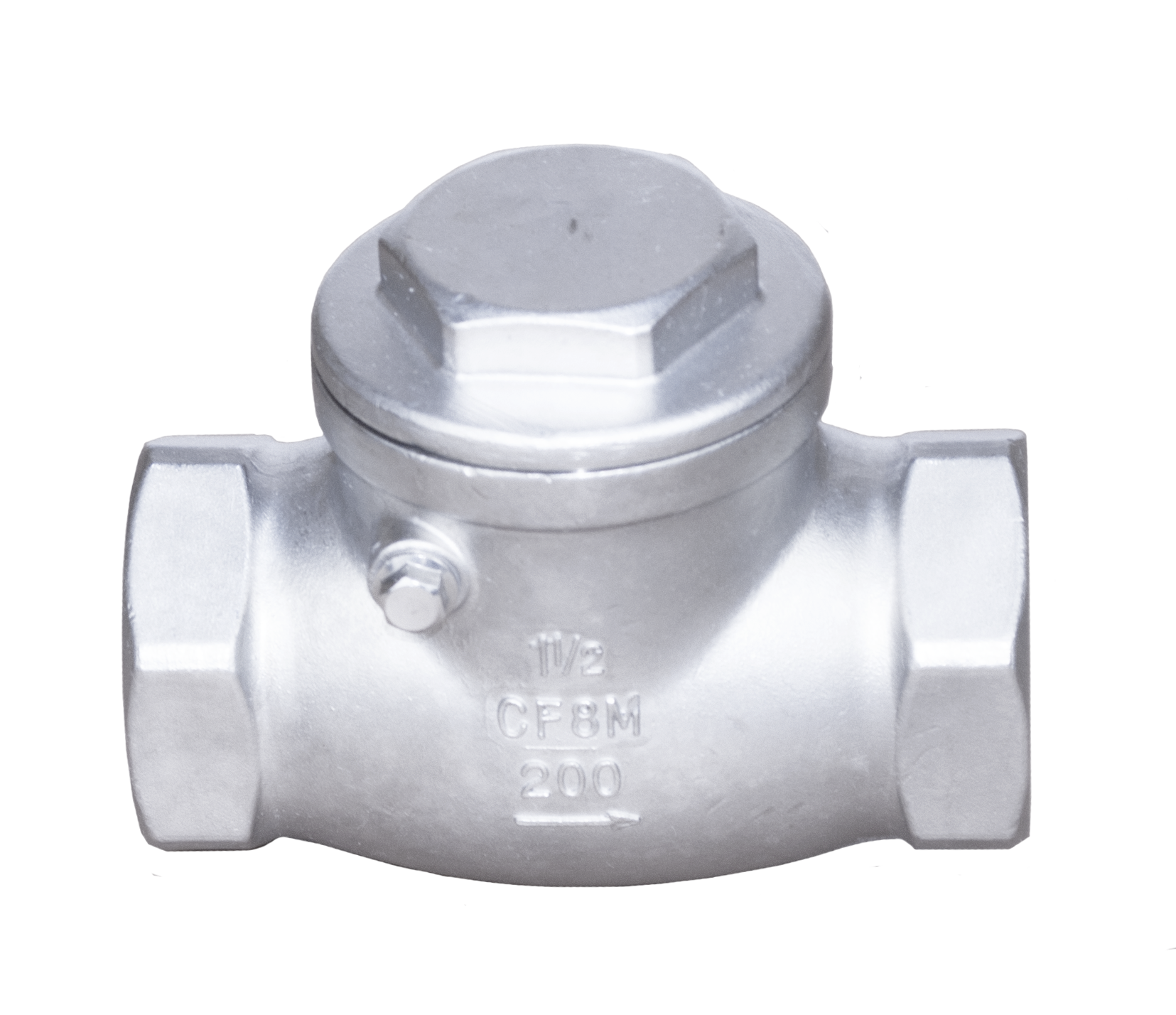

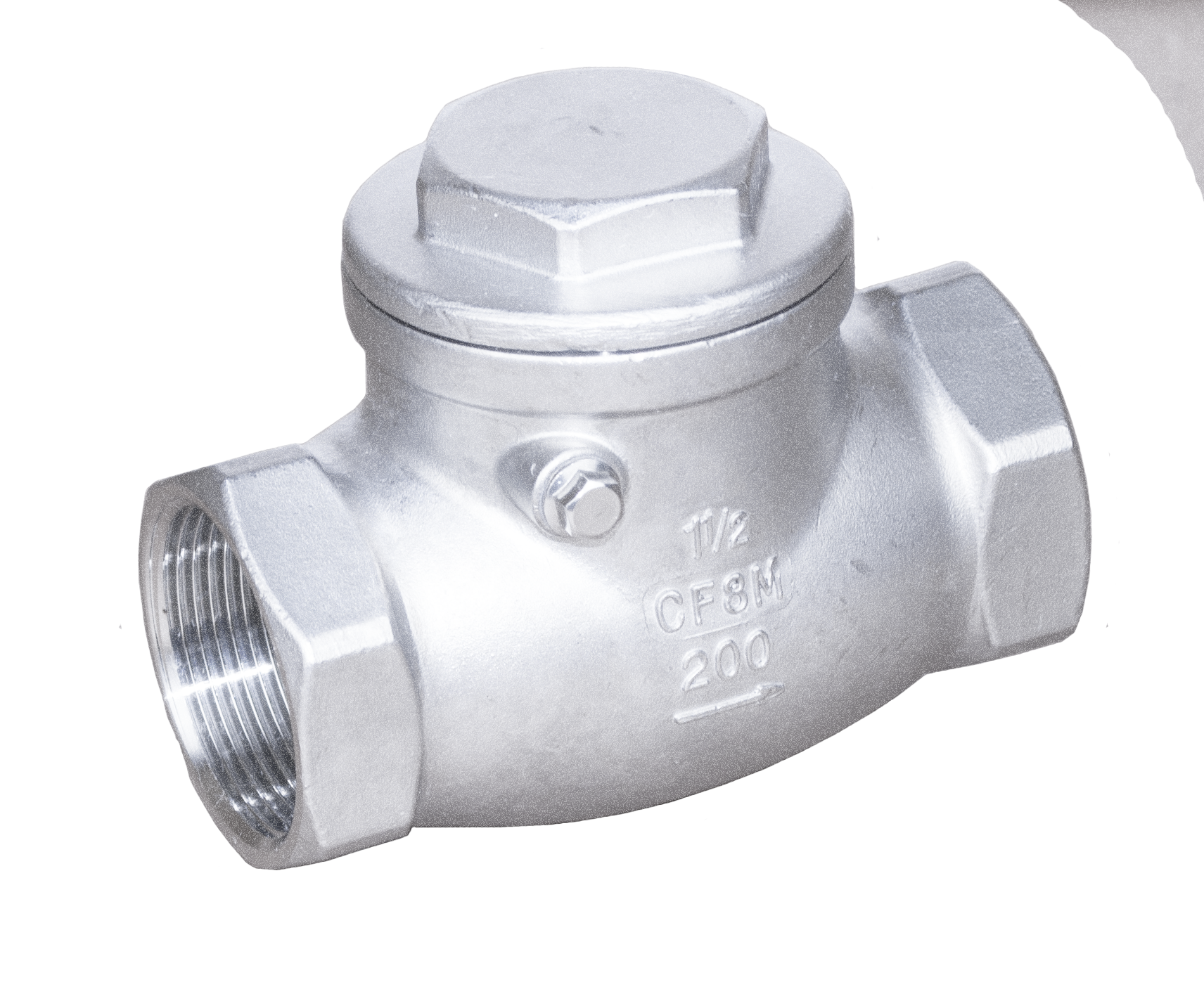

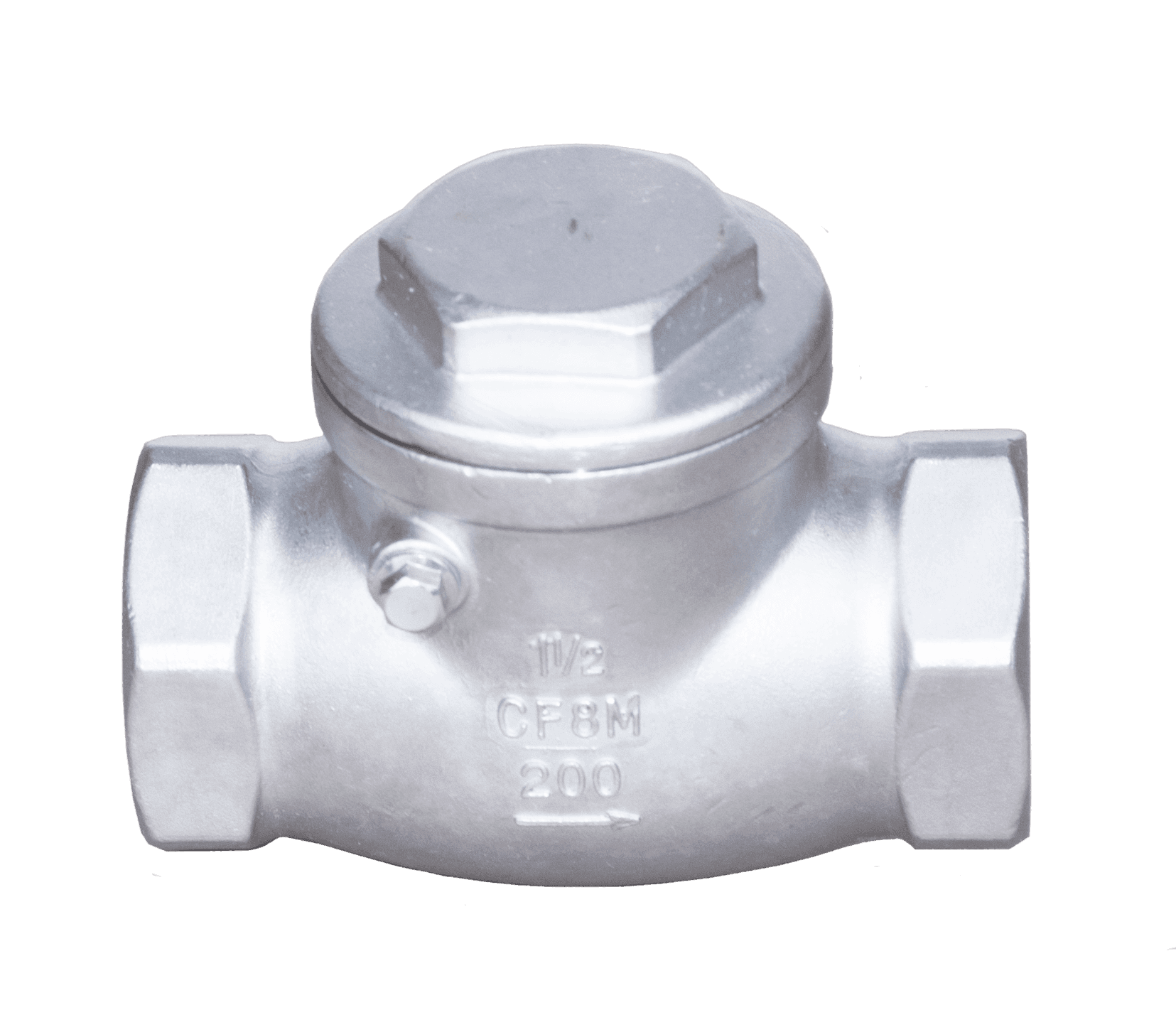

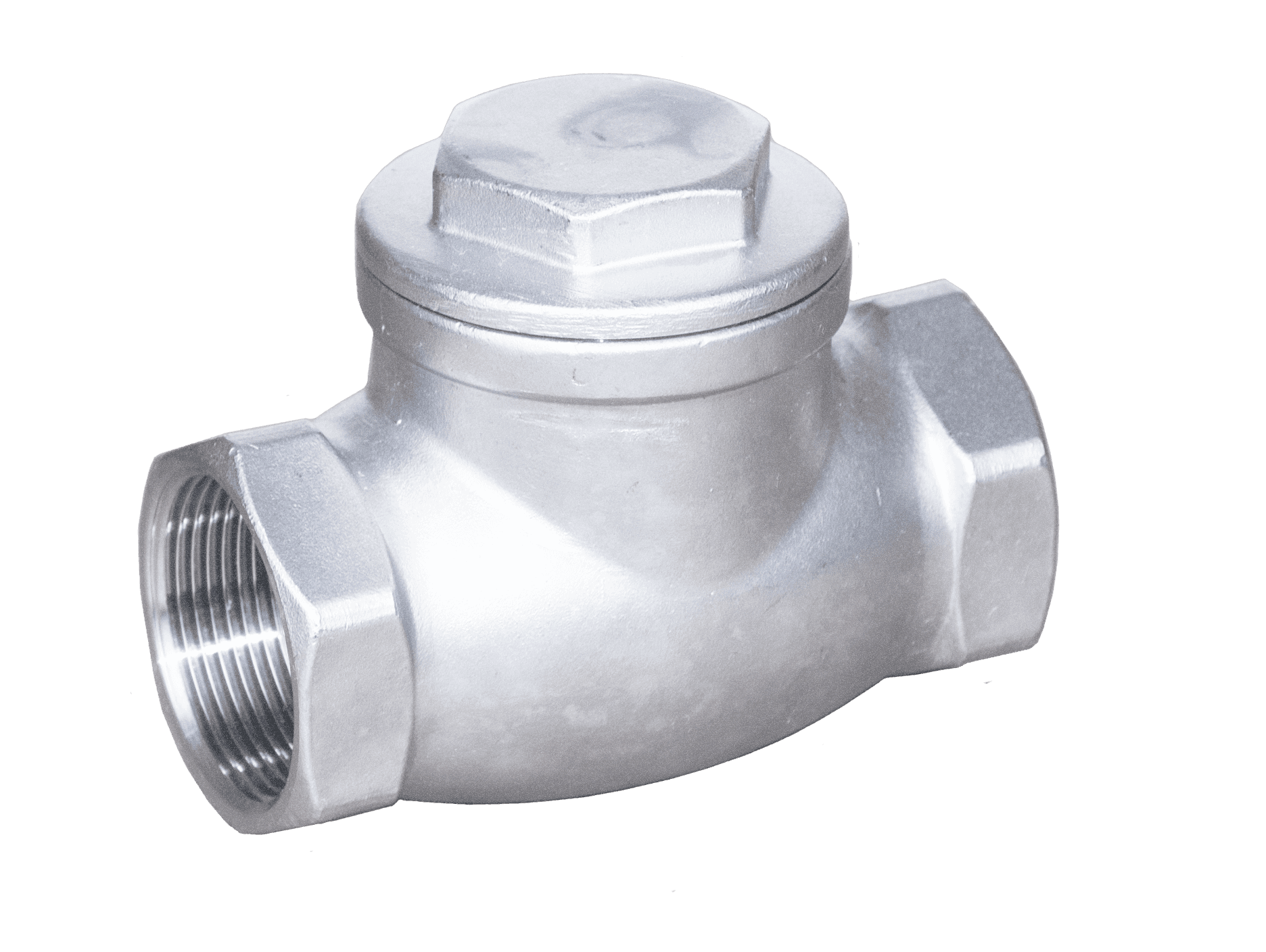

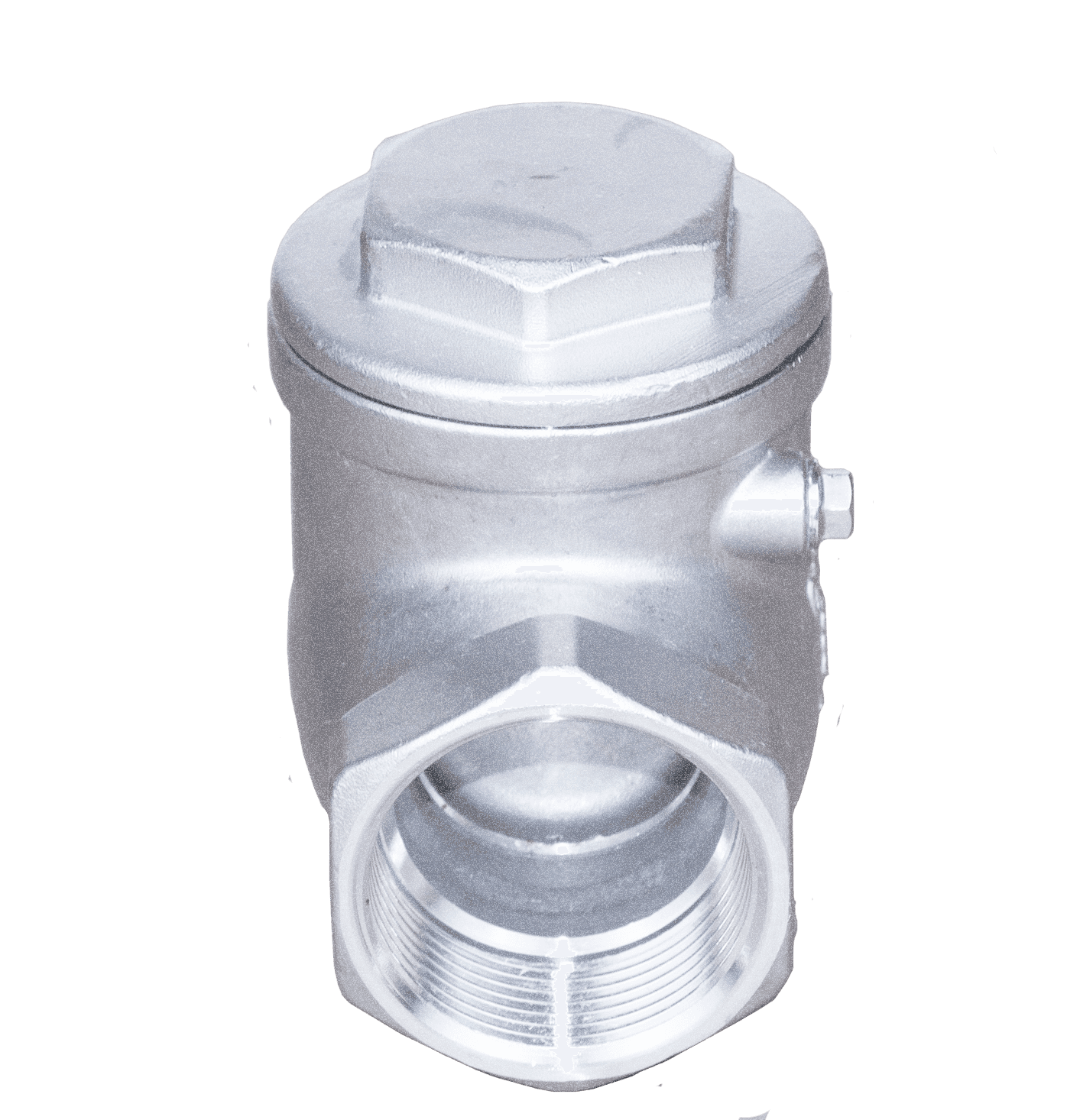

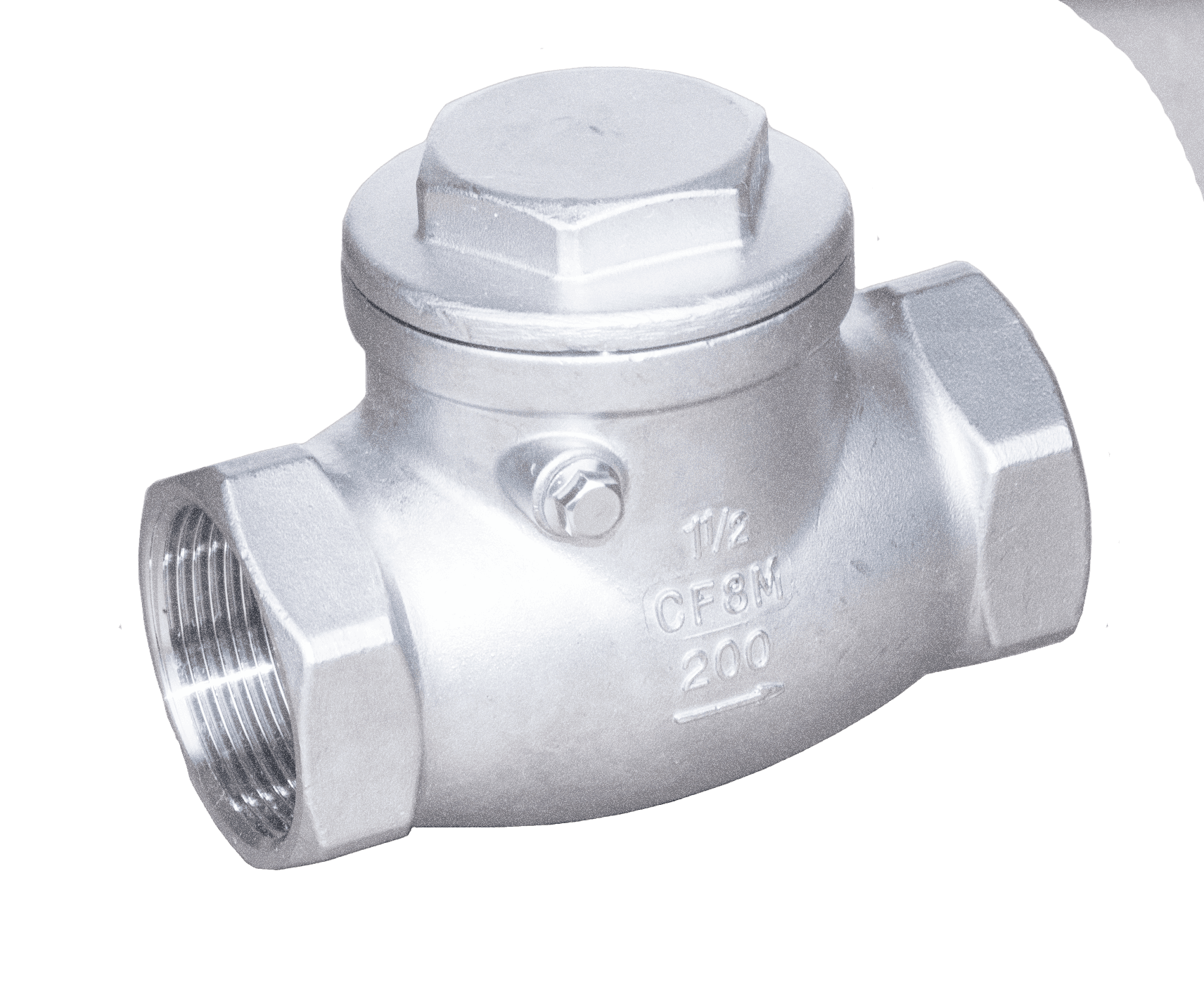

Stainless Steel Threaded Swing Check Valve
ASME/API compliant threaded swing check valve in SS. Low pressure drop, PTFE or metal seat, NPT/BSP ends. For water, oil, gas, steam.
RECOMMENDED
Stainless Steel Threaded Swing Check Valve
ASME/API compliant threaded swing check valve in SS. Low pressure drop, PTFE or metal seat, NPT/BSP ends. For water, oil, gas, steam.
ASME/API compliant threaded swing check valve in SS. Low pressure drop, PTFE or metal seat, NPT/BSP ends. For water, oil, gas, steam.

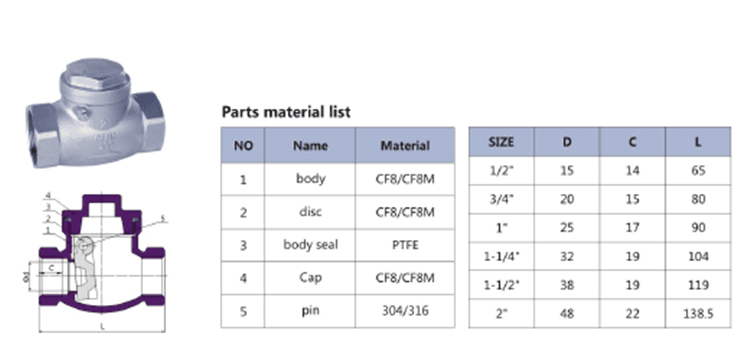

Specifications
| Design | ASME B16.34 / API 594 (applicable) |
| Thread | ASME B1.20.1 (NPT) or ISO 7-1 (BSP) |
| Face-to-face | Manufacturer standard |
| Testing | API 598 / ISO 5208 |
| Pressure rating | Class 150 / Class 300 / 1000WOG |
| Temperature range | -20°C to 200°C (PTFE seat) / up to 400°C (metal seat) |
| Certifications | CE, PED (optional) |
Features & Benefits
- Swing disc design for low pressure drop and smooth flow
- Threaded ends to ASME B1.20.1 (NPT) or ISO 7-1 (BSP) in sizes 1/2" to 2"
- Renewable seat and disc: PTFE for -20°C to 200°C, metal for up to 400°C
- Pressure ratings: Class 150, Class 300, or 1000WOG
- Tested to API 598 / ISO 5208; CE and PED certification options
Applications
- Water and wastewater pumping lines
- Oil and gas distribution systems
- Chemical and petrochemical processing
- Steam and condensate lines
Features
Swing disc design for low pressure drop and smooth flow
Threaded ends to ASME B1.20.1 (NPT) or ISO 7-1 (BSP) in sizes 1/2" to 2"
Renewable seat and disc: PTFE for -20°C to 200°C, metal for up to 400°C
Pressure ratings: Class 150, Class 300, or 1000WOG
Tested to API 598 / ISO 5208; CE and PED certification options
