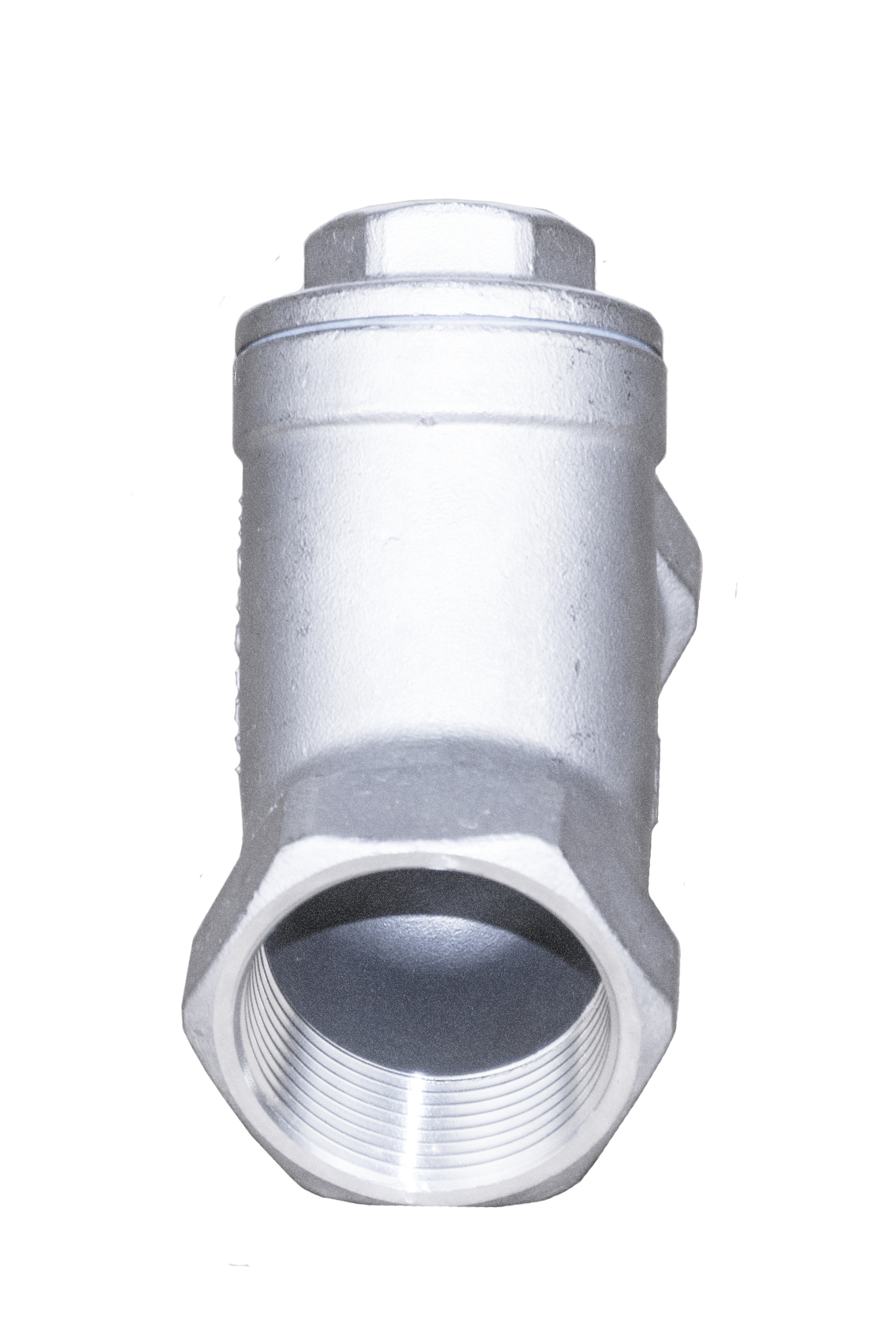

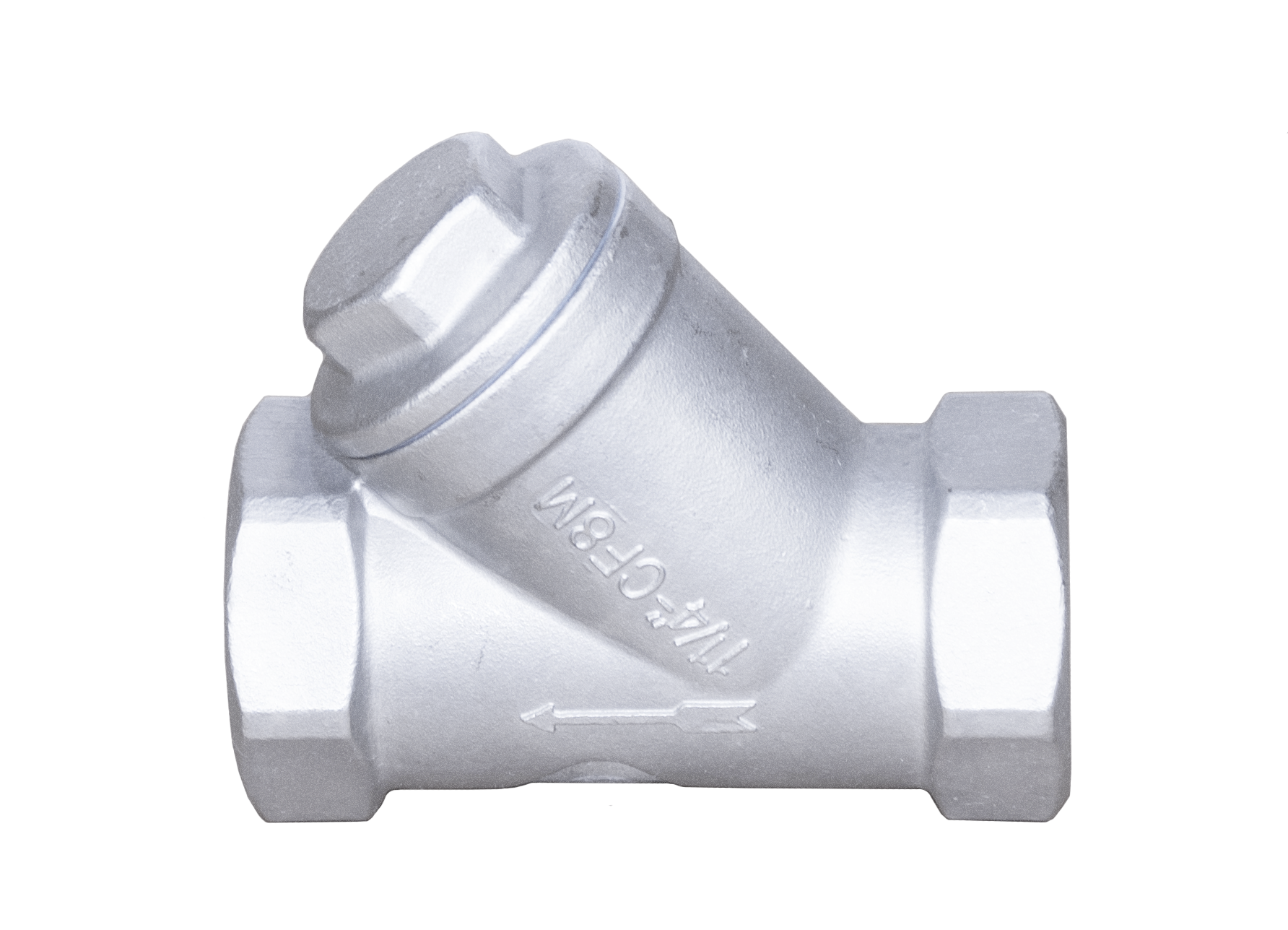

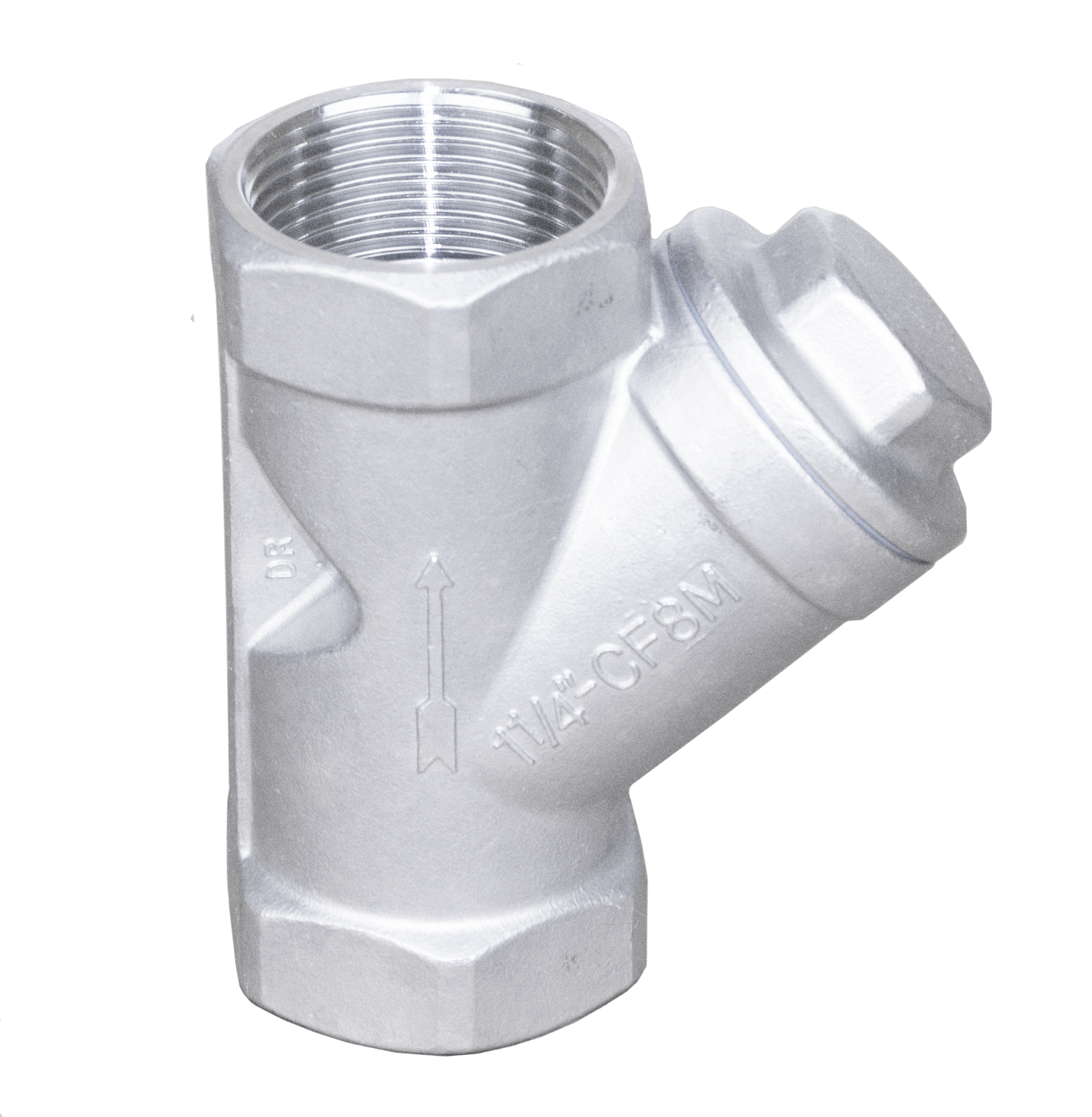

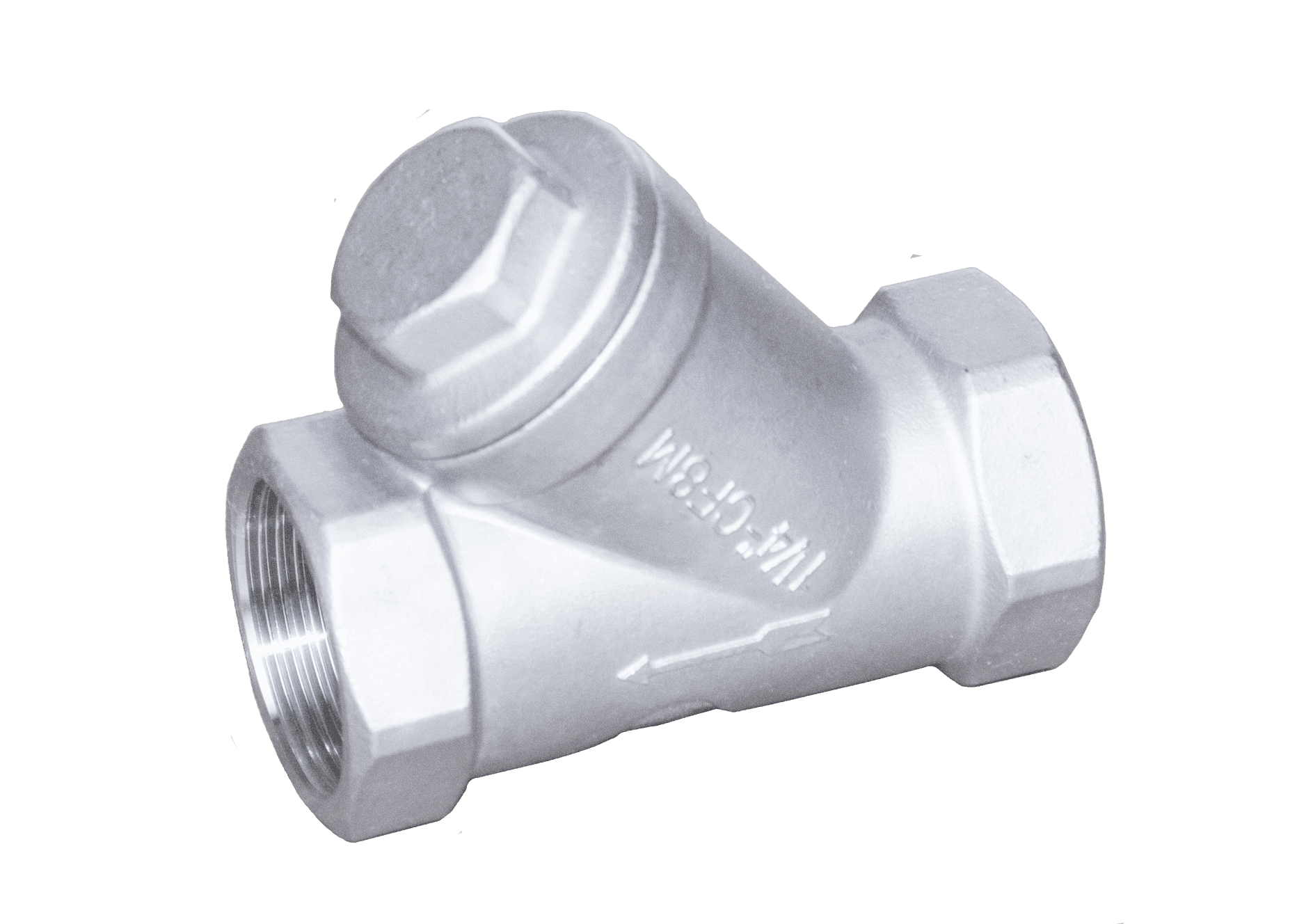

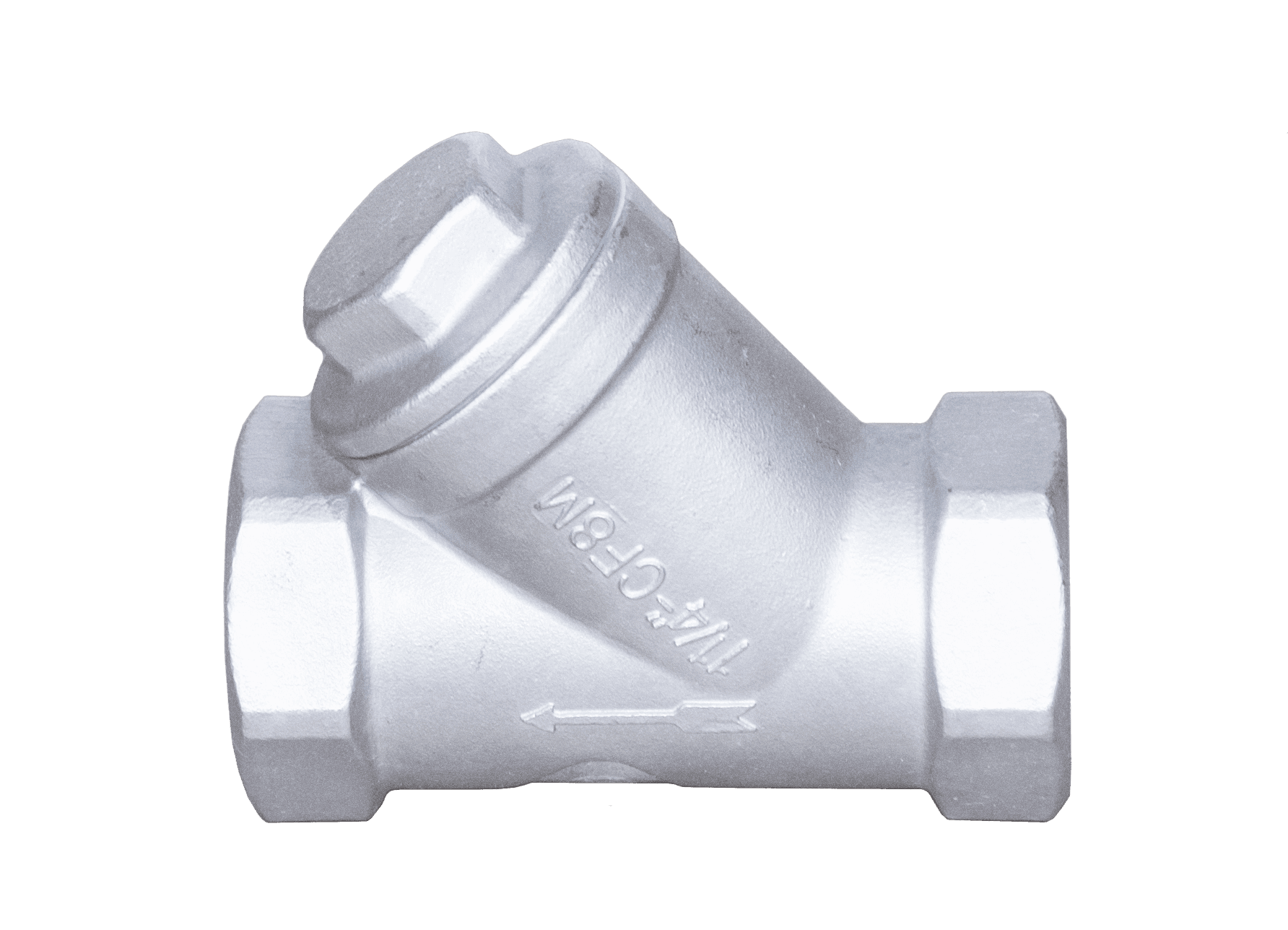

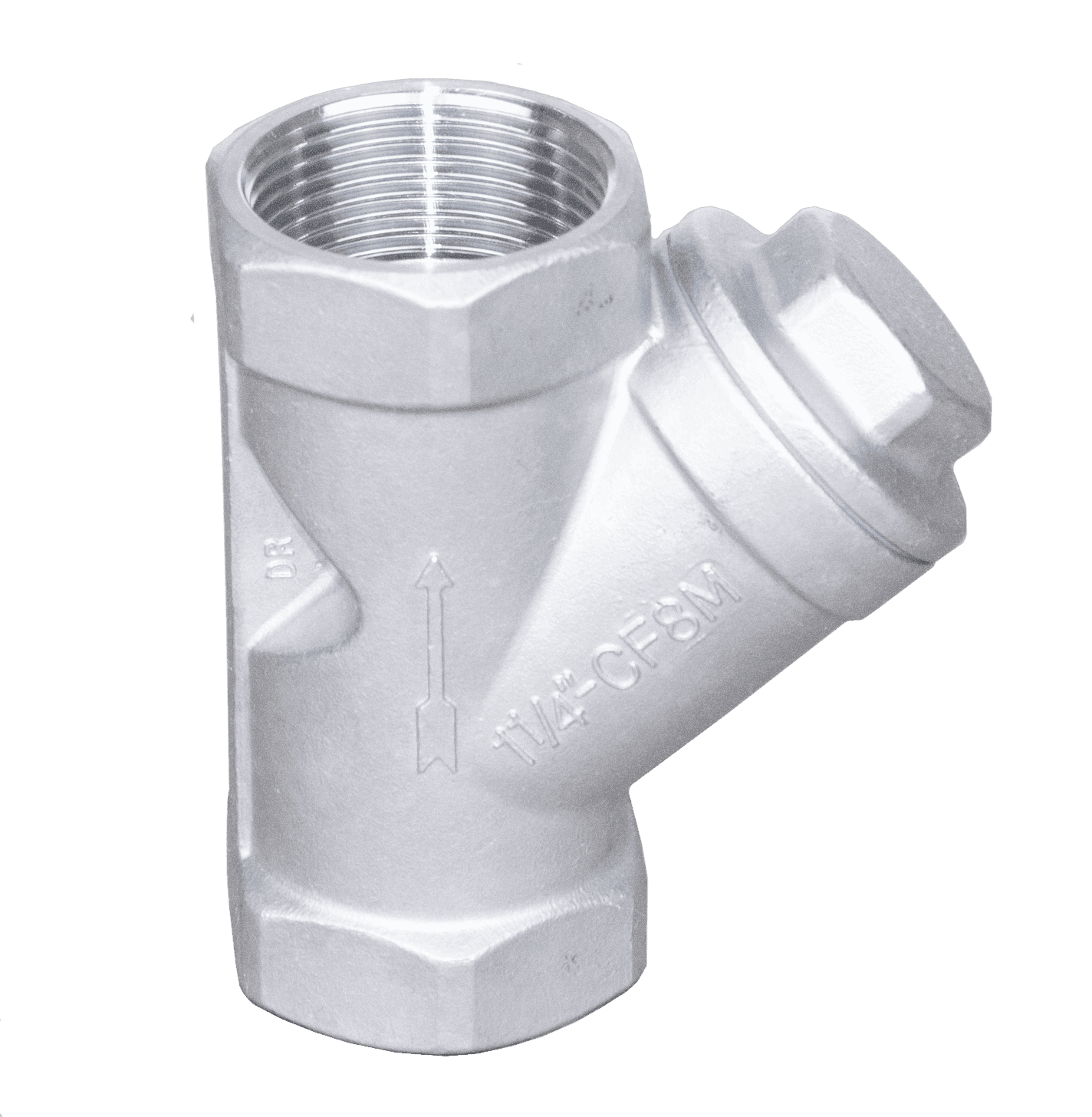

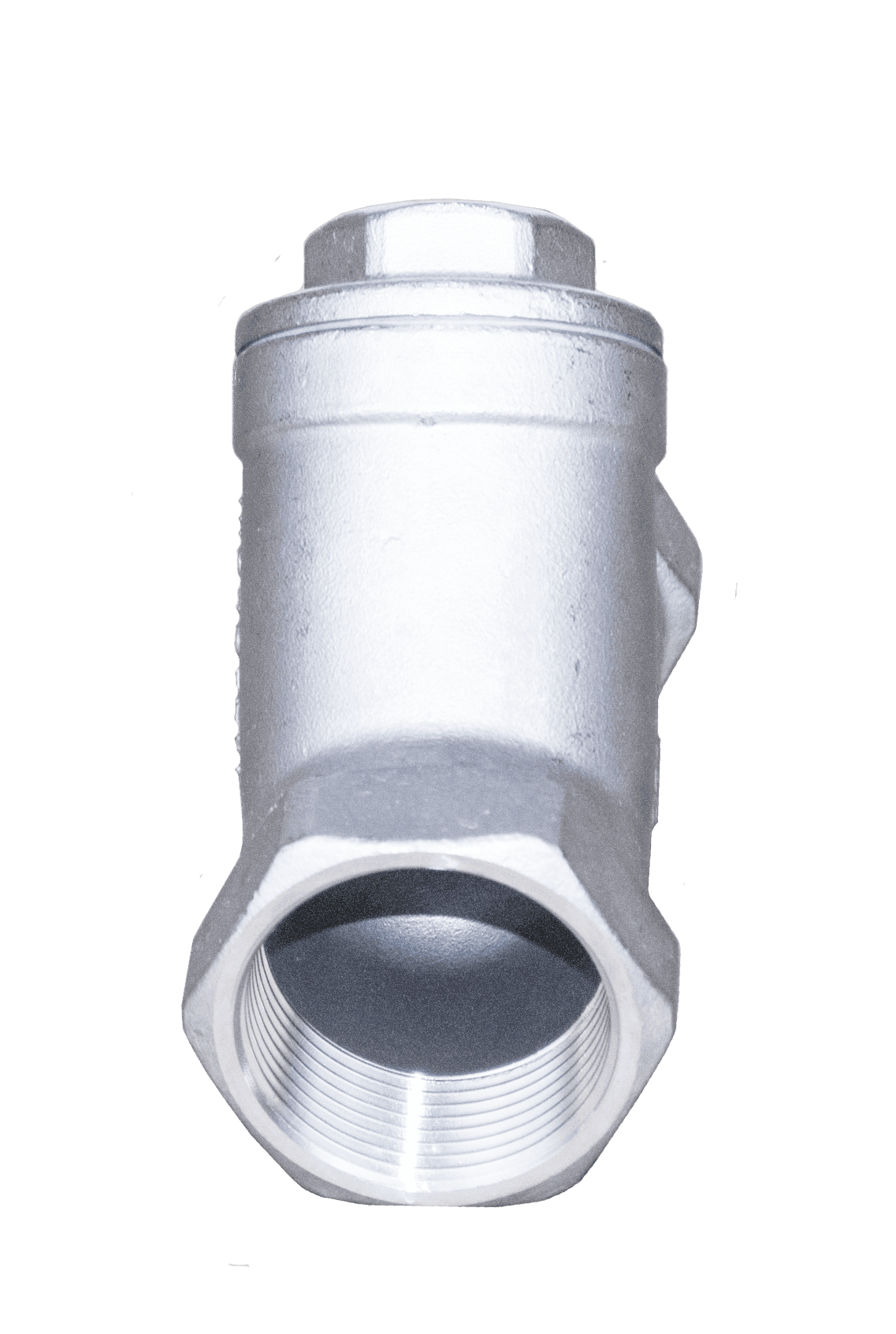

Y Type Threaded Check Valve
Y-pattern check valve with spring-loaded disc for low pressure drop. Threaded NPT/BSP ends, ideal for water, oil, gas, and HVAC systems.
RECOMMENDED
Y Type Threaded Check Valve
Y-pattern check valve with spring-loaded disc for low pressure drop. Threaded NPT/BSP ends, ideal for water, oil, gas, and HVAC systems.
Y-pattern check valve with spring-loaded disc for low pressure drop. Threaded NPT/BSP ends, ideal for water, oil, gas, and HVAC systems.

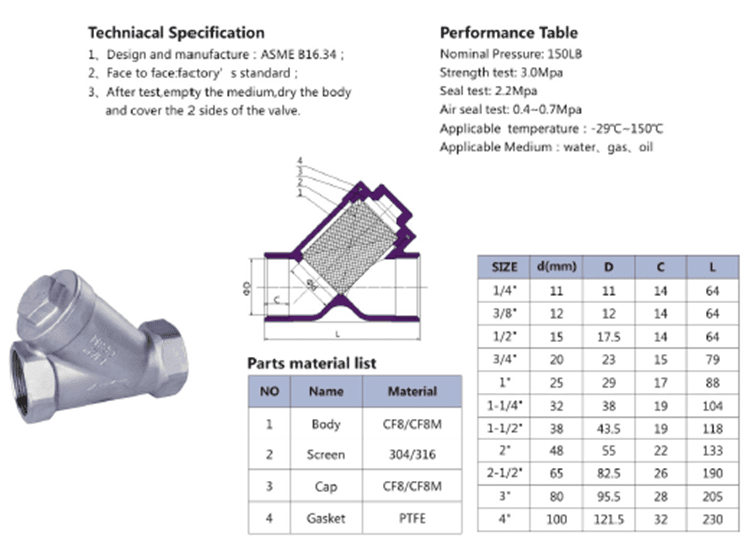

Specifications
| Design | ASME B16.34 / MSS SP-126 |
| Thread | ASME B1.20.1 (NPT) or ISO 7-1 (BSP) |
| Testing | API 598 |
| Certifications | CE, PED optional |
Features & Benefits
- Y-pattern body design minimizes pressure drop
- Spring-loaded disc ensures instant closure
- Threaded NPT (ASME B1.20.1) or BSP (ISO 7-1) ends, 1/4" to 2"
- Constructed in stainless steel (SS304/SS316) or brass
- PTFE seat for reliable sealing and chemical resistance
- Design per ASME B16.34 / MSS SP-126; tested per API 598
- CE and PED certification available upon request
Applications
- Water and chemical processing
- Oil and gas lines
- HVAC and condensate systems
- Food and beverage
Features
Y-pattern body design minimizes pressure drop
Spring-loaded disc ensures instant closure
Threaded NPT (ASME B1.20.1) or BSP (ISO 7-1) ends, 1/4" to 2"
Constructed in stainless steel (SS304/SS316) or brass
PTFE seat for reliable sealing and chemical resistance
Design per ASME B16.34 / MSS SP-126; tested per API 598
CE and PED certification available upon request
