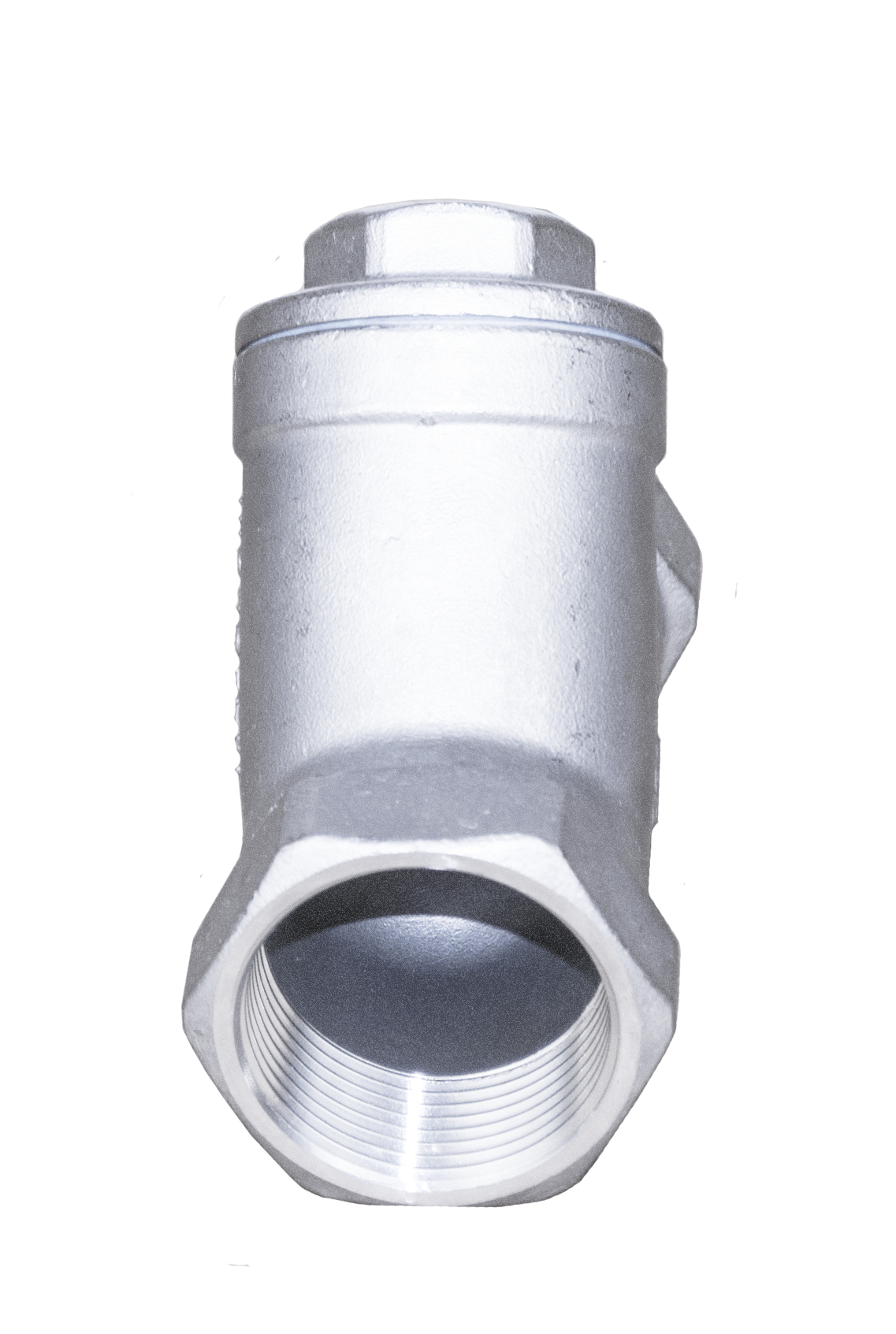

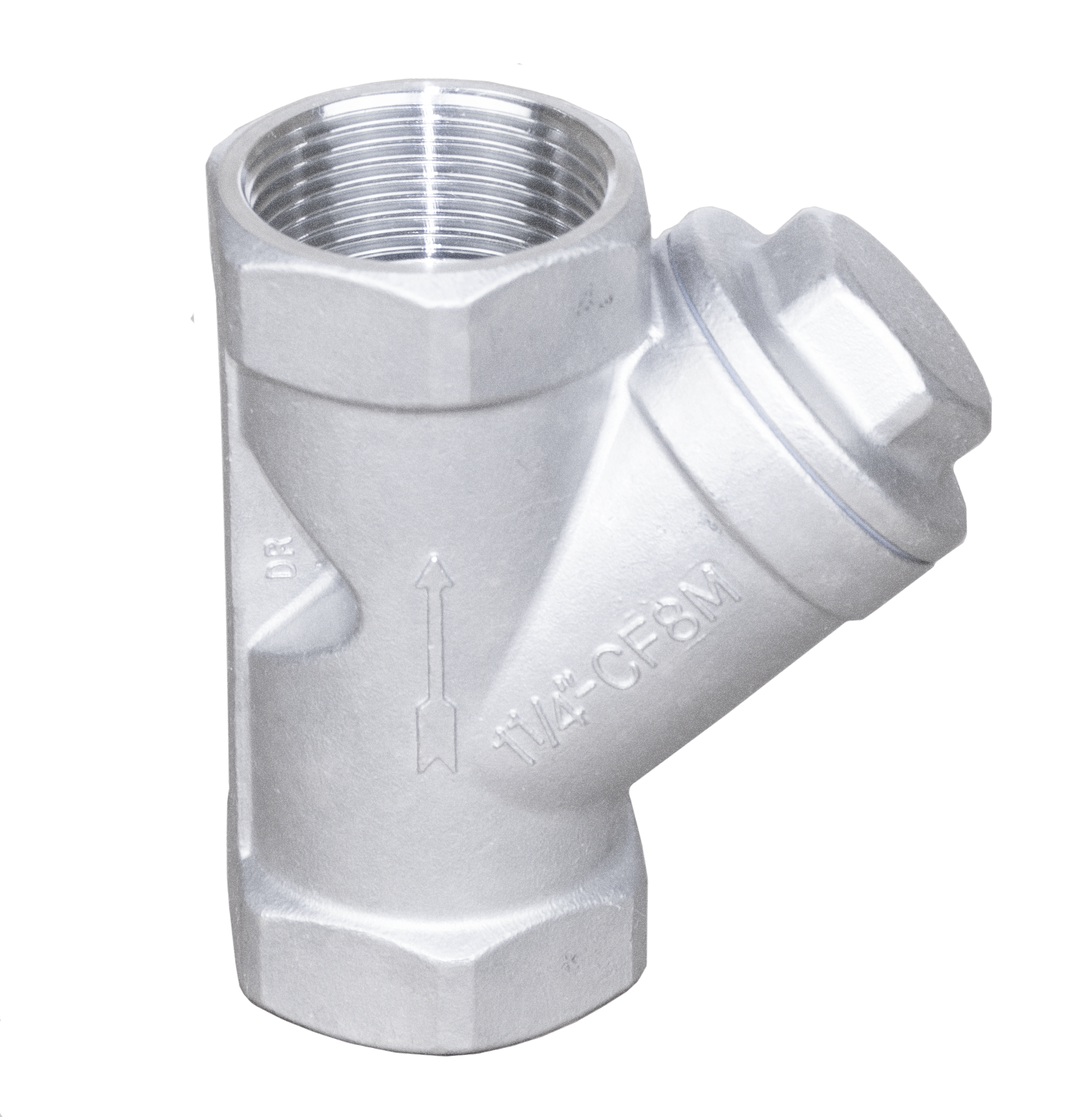

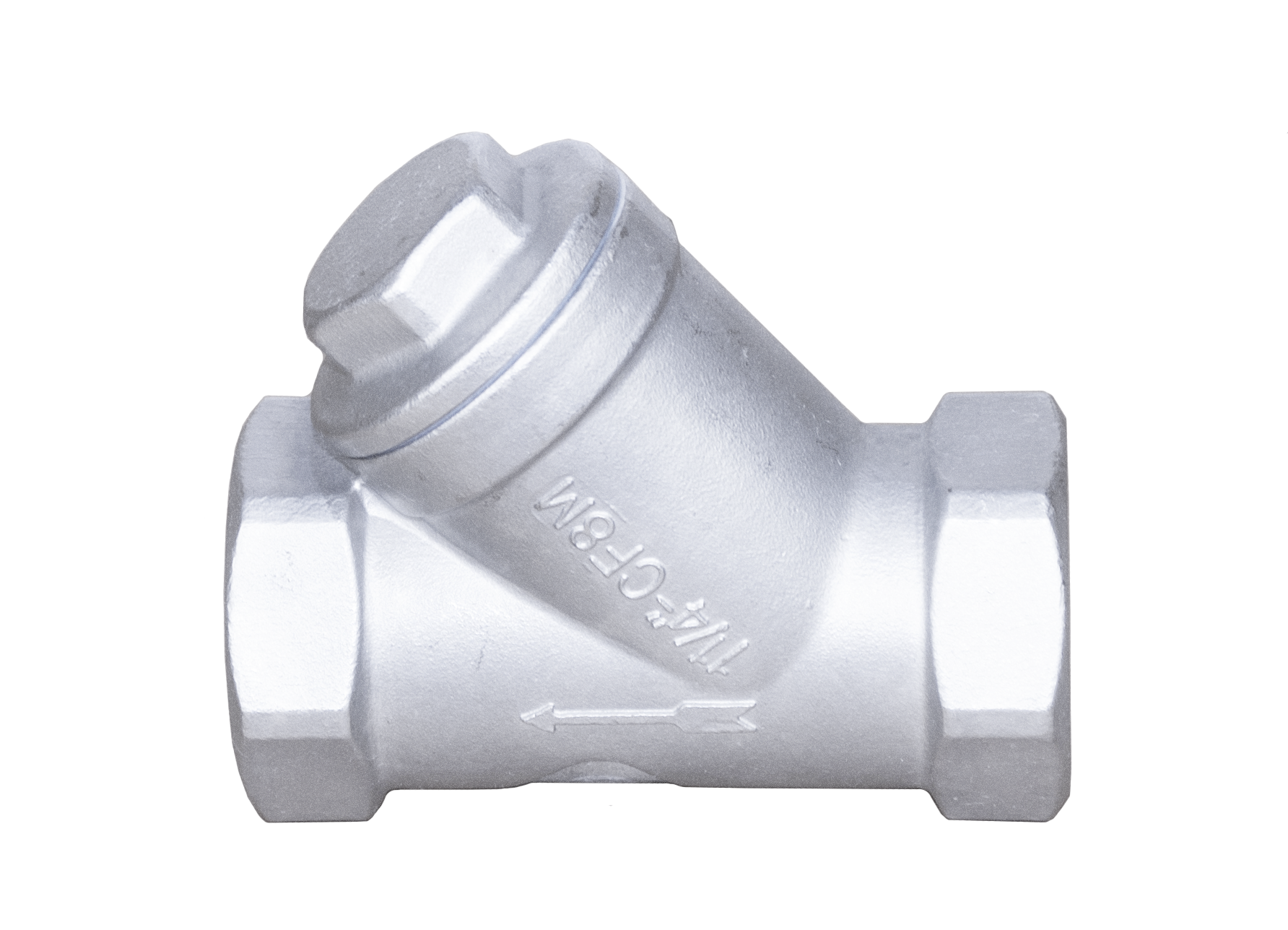

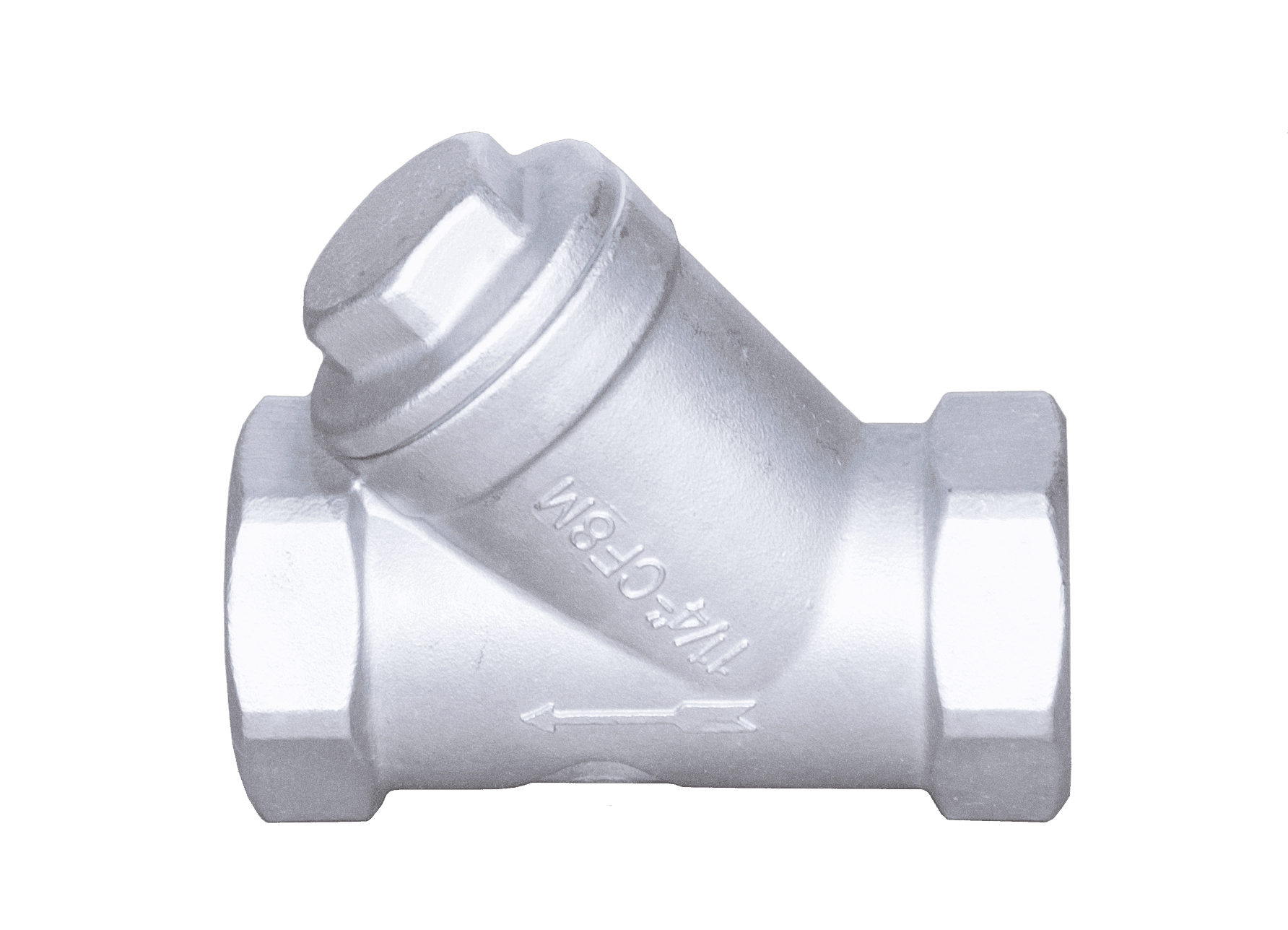

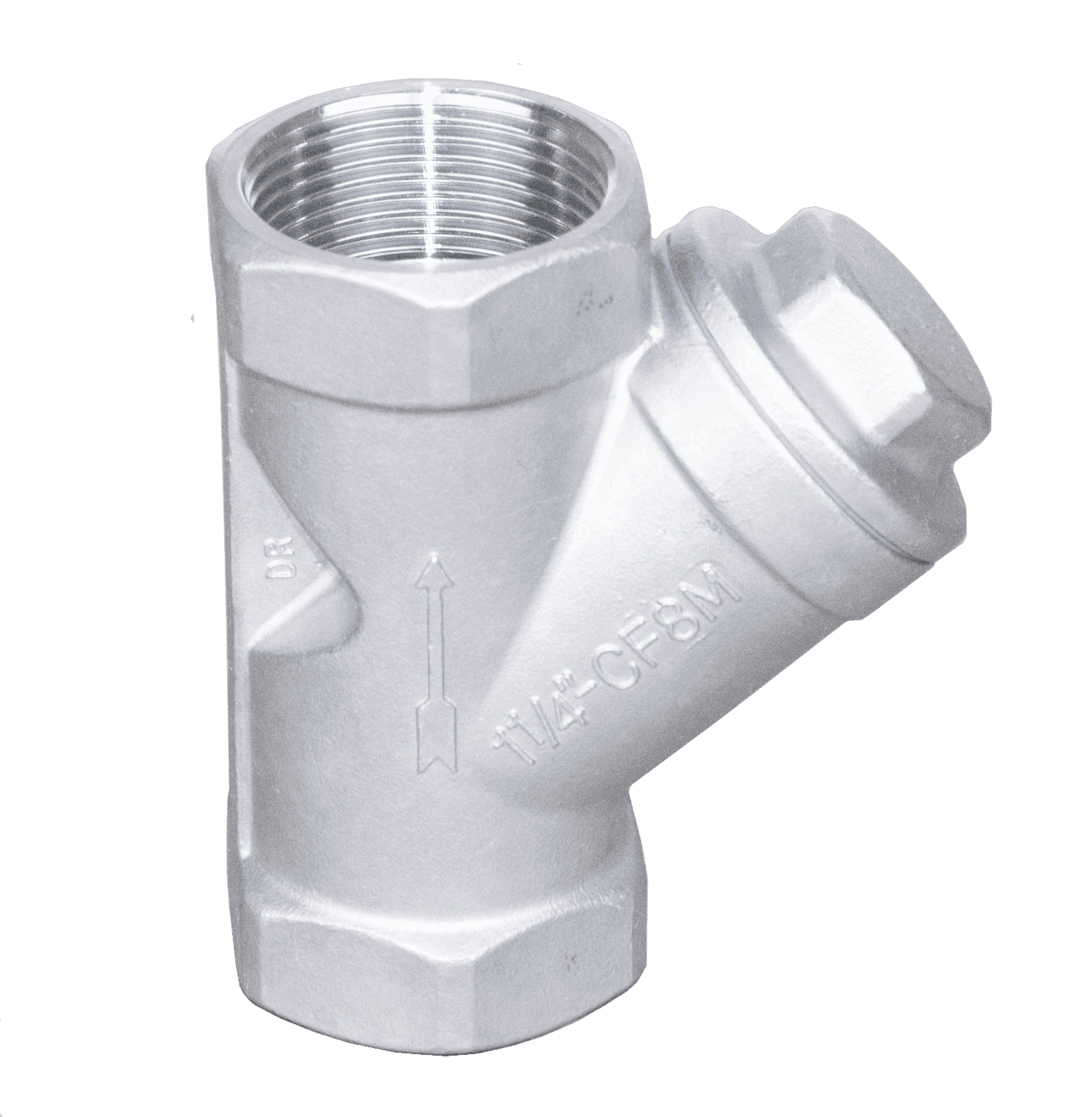

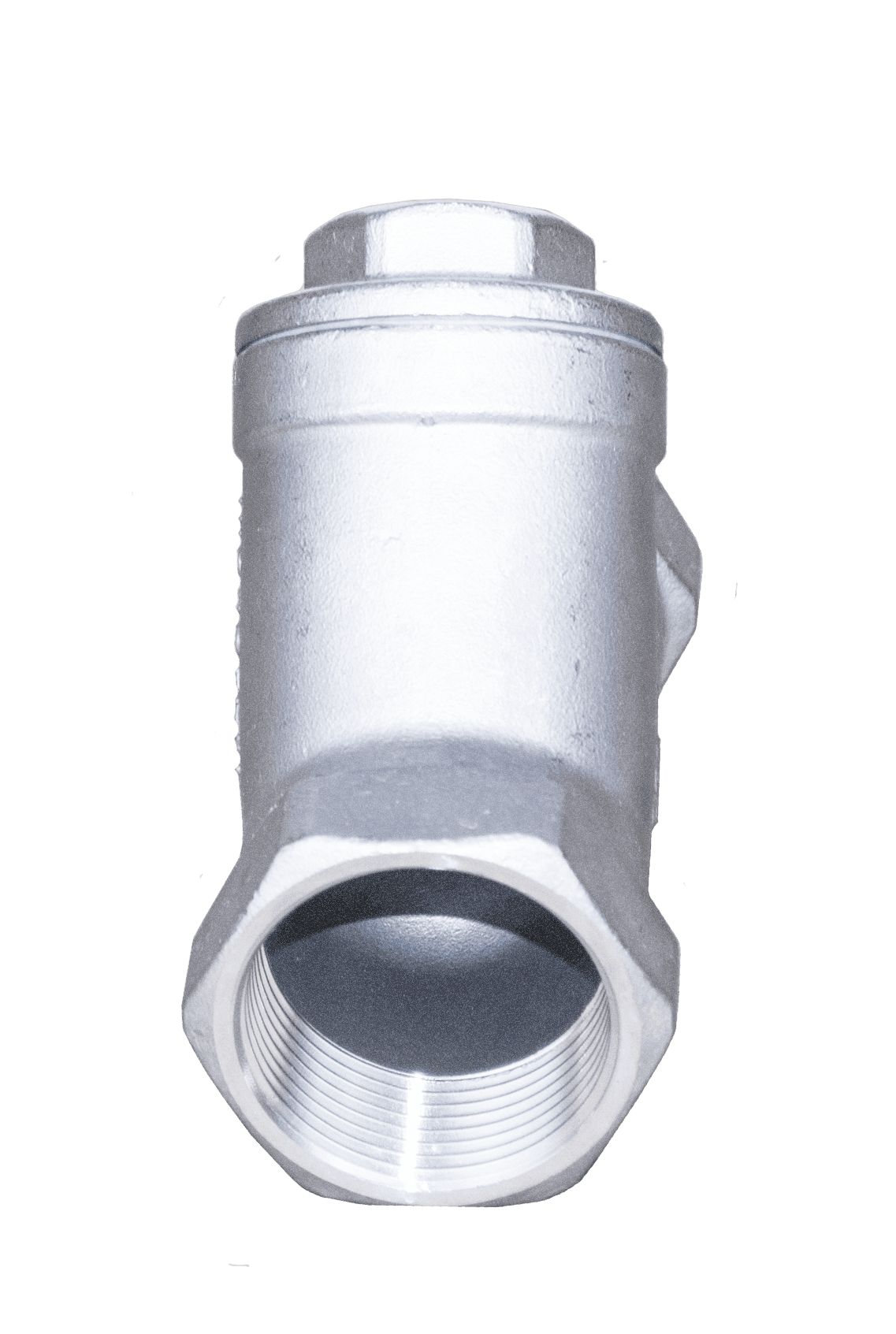

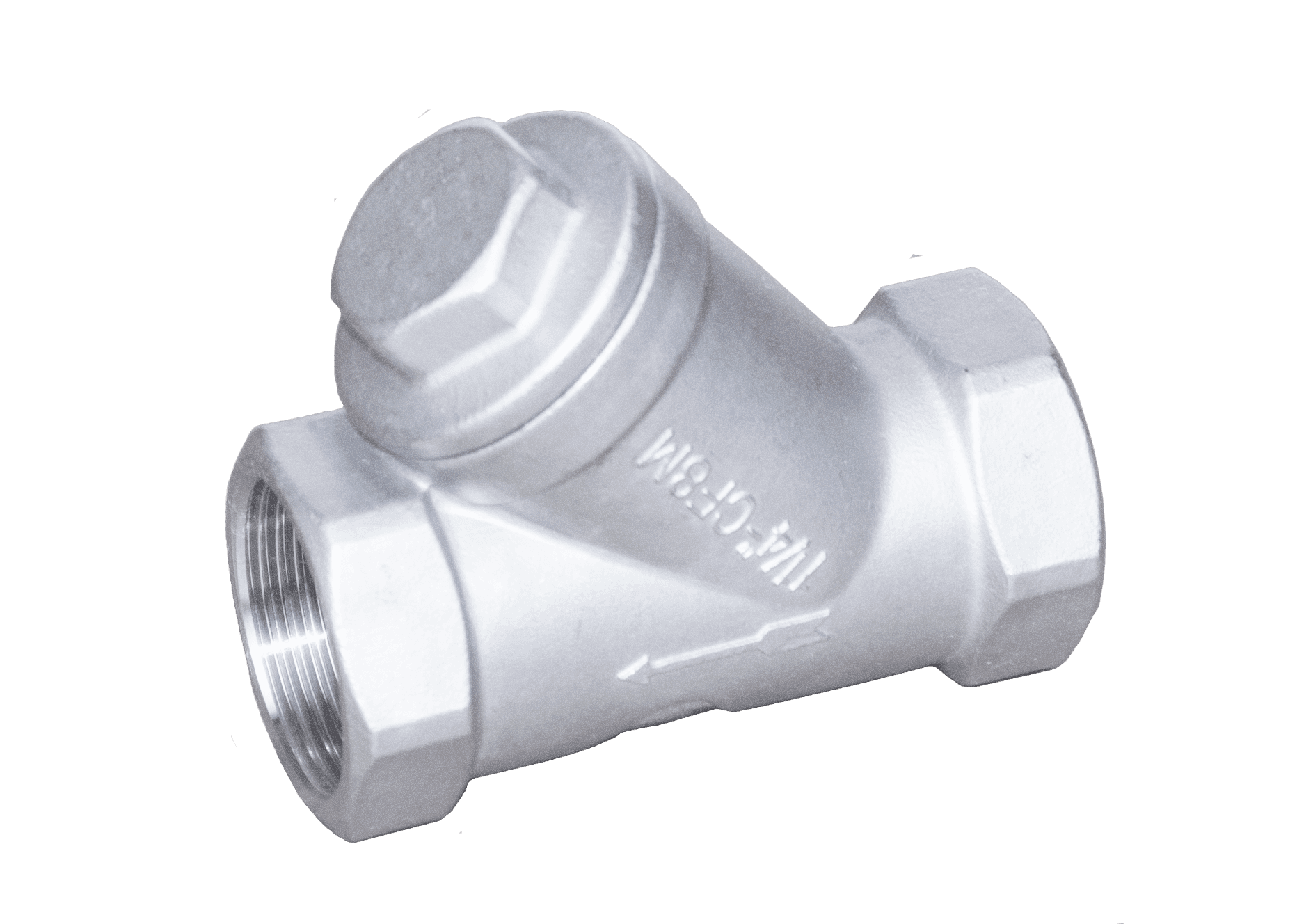

Y Type Threaded Strainer
Y型螺纹过滤器
Overview Y-pattern strainer with threaded ends. Removes solid particles from pipelines. Protects downstream equipment. Compact design for tight spaces.
Product Details
Applications
01 Water and wastewater
02 Chemical and petrochemical
03 Oil and gas
04 HVAC and steam lines
05 Food and beverage
06 Instrumentation and pneumatic systems

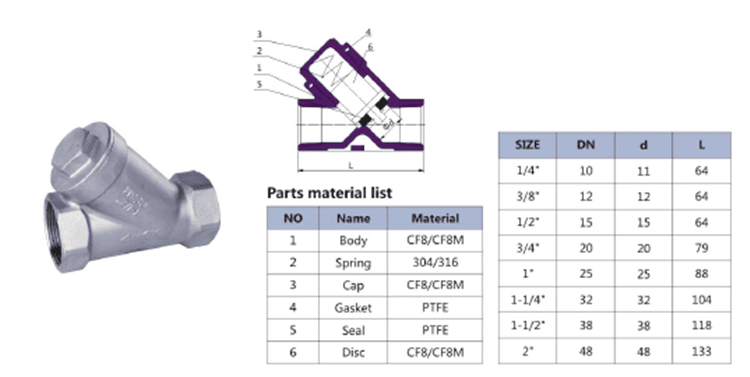

Features
01 Y-pattern body – low pressure drop
02 Threaded ends: NPT or BSP (1/4″ to 2″)
03 Stainless steel body (CF8/CF8M) or bronze
04 304/316 stainless steel mesh screen (20–100 mesh)
05 Blow-off plug for easy cleaning
06 PTFE seal and gasket
07 Pressure rating: up to 800 PSI / Class 800
08 Temperature range: -20°C to 200°C (-4°F to 392°F)
Advantages
01 Removes solids – protects pumps, valves, meters downstream
02 Compact – fits narrow pipe runs
03 Easy installation – no welding or flanges
04 Easy cleaning – blow-off plug without removing from line
05 Any orientation – vertical or horizontal
06 Corrosion-resistant – stainless steel construction
Standards
01 Design: ASME B16.34 / MSS SP-110
02 Thread: ASME B1.20.1 (NPT) or ISO 7-1 (BSP)
03 Testing: API 598
04 Materials: ASTM A351 (CF8/CF8M)
05 Certifications: CE, PED (optional)
